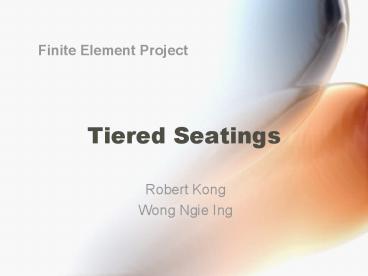

Tiered Seatings
  • Finite Element Project

Robert Kong Wong Ngie Ing
2
Introduction
  • Low Cost Solution
  • Simple Assembly
  • Strong and Safe
  • Modular and Portable
  • Easily Transportable
  • Indoors/Outdoors

3
Objectives
  • To determine the deformation shape under
    different condition cases
  • To analyze maximum stress
  • To analyze maximum deflection

4
Model Layout
  • Model
  • 870 Nodes
  • 654 Beams
  • 576 Plates
  • 6.0(W) x 3.1 (H) x 4.5(L) in metres
  • Boundary Conditions
  • Constrained in X, Y, and Z at all fixed supports

5
Material Breakdown
  • Structural Steel for the body frame (beam
    element)
  • Timber (12 m.c.) Gum, rose for seating area
    (plate element)

6
Material Properties
  • Side Frames
  • Square Hollow Section 75 x 75 x 2.0 SHS
  • Railings
  • Circular Hollow Section 76.1 x 5.9 CHS
  • Seating Side Square Support
  • Square Hollow Section 25 x 25 x 2.5 SHS
  • Seating mid-beam Support
  • Square Hollow Section 25 x 25 x 2.0 SHS

7
Assumption
  • There are 6 rows
  • Each row accommodates an average 9 people, 3
    people in each section
  • An average 90kg per person
  • Density of a live load is 3.5kPa for each section
  • People leaning on the back of the rail, hanging
    on it, and possible leg stepping onto the 2nd
    level rail
  • Wind Loads on front, back and side (out door
    conditions)
  • Factor of safety for the self-weight is 1.1 while
    live load is 1.3

8
Load Cases
  • Self-weight of the structure
  • Live load
  • Leaning, hanging, legs on rail
  • Wind load North direction (Front)
  • Wind load West direction (Side)
  • Wind load South direction (Back)
  • Combination Case 1 1 2
  • Combination Case 2 1 2 3
  • Combination Case 3 1 2 4
  • Combination Case 4 1 2 5
  • Combination Case 5 1 2 6

9
Results Convergence Study
Peak
10
Deflection Deformation Combination Case 1
Deformation
Max. Beam Element Displacement 0.4907mm Max.
Plate Element Displacement 8.34mm
11
Deflection Deformation Combination Case 2
Deformation
Max. Beam Element Displacement 0.1027mm Max.
Plate Element Displacement 8.416mm
12
Deflection Deformation Combination Case 3
Deformation
Max. Beam Element Displacement 0.0102mm Max.
Plate Element Displacement 8.33mm
13
Deflection Deformation Combination Case 4
Deformation
Max. Beam Element Displacement 0.1275mm Max.
Plate Element Displacement 9.006mm
14
Deflection Deformation Combination Case 5
Deformation
Max. Beam Element Displacement 0.8855mm Max.
Plate Element Displacement 9.0063mm
15
Max. Beam and Plate Stress Combination 1
Max. Fibre Stress 263.81 MPa Max. Plate Stress
14.61 MPa
16
Max. Beam and Plate Stress Combination 2
Max. Fibre Stress 266.75 MPa Max. Plate Stress
14.64 MPa
17
Max. Beam and Plate Stress Combination 3
Max. Fibre Stress 266.13 MPa Max. Plate Stress
14.57 MPa
18
Max. Beam and Plate Stress Combination 4
Max. Fibre Stress 278.85 MPa Max. Plate Stress
15.78 MPa
19
Max. Beam and Plate Stress Combination 5
Max. Fibre Stress 262.77 MPa Max. Plate Stress
14.59 MPa
20
Conclusions
  • Max. Plate Displacement 9.0063mm (Case 5)
  • Max. Beam Displacement 0.8855mm (Case 5)
  • Max. Beam Stress 278.85MPa (Case 4)
  • Max. Plate Stress 15.78MPa (Case 4)
  • Strand7, another quality program for engineers to
    analyze any possible objects modeled
  • A very fun learning experience

21
Thank you for listening!
  • Any questions?
