Product Life Cycle Support PLCS

1

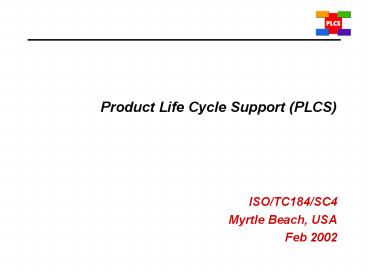

Product Life Cycle Support (PLCS)

• ISO/TC184/SC4
• Myrtle Beach, USA
• Feb 2002

2
Agenda

• What is PLCS?
• What has been achieved to date
• Current Issues for SC4
• PLCS intentions

3
Product Life Cycle Support (PLCS)Background

• A joint industry and government initiative to
  accelerate development of new standards for
  product support information
• An international project to produce draft ISO
  standards within 3 years.
• PLCS will ensure support information is aligned
  to the evolving product definition over the
  entire life cycle
• PLCS utilizes ISO 10303 STEP - the STandard for
  Exchange of Product model data

4
Setting the Business ContextBusiness Problem

• How to keep the data needed to operate and
  maintain a product in line with the changing
  product over its in-service life?

Feedback
5
PLCS helps facilitate business improvement
As-Is/To-Be process
6
Current Position

• Business modeling and requirement capture are
  complete
• Data Modelling is progressing well (70 at ARM
  level)
• PLCS has adopted the STEP Modular Approach for
  its complete scope
• Clarity of intent PLCS will be part of ISO
  10303
• Improved harmonization (incl. re-use of PDM
  Modules)
• Progressive publication option (As Application
  Modules)
• Will publish single AP using 150 modules (80
  re-used, 70 new)
• Lots of interest from major projects and from
  vendors

7
Lessons learned (1)

• STEP is greatly valued by its major industrial
  sponsors (ISO 10303)
• The Modular approach is viable and cost effective
• A framework for effective co-operation between
  APs (i.e. common EXPRESS)
• Progressive publication (as Application Modules)
• PDM Modules have the potential to provide a
  common core for future APs, to which data from
  current APs can easily map (via PDM Schema)
• New STEP Module repository will greatly reduce
  Module development and documentation effort

8
Lessons learned (2)

• Observations
• Use of STEP (ARMAIMmappings) aids, but does not
  guarantee interoperability usage guides and
  test fora are essential
• Modules do NOT remove requirement to for
  integration within an AP a pile of bricks is
  not a wall
• STEP is hard to explain to business users
• Action Areas
• STEP infrastructure needs extension to exploit
  EXPRESS 2
• STEP cannot yet handle the full scope of life
  cycle data, as envisaged by the SC4 strategy
• STEP can learn from other SC4 projects

9
PLCS things we need to talk about (and
distinguish between).
Being
Doing
Activities performed (work, tasks) by people
acting on a product ( asses impact, design,
manufacture, test, repair, move etc)
10
PLCS things we need to talk about (and
distinguish between).
Required
Planned
Designed
Realized
Realization
History
States of environment windy, acidic, peacetime,
transatlantic operations
States of people available, trained to skill
level 4, occupied
Being
States of a product
Composition, structure definition
Properties
Named states operating states, fault states,
repair status
Current STEP Strengths
States of activities off/on, started, paused,
step 3 completed
Activities performed by a product
Doing
Operational behavior (functions, I/O, sequence
etc.)
Embedded support functions (diagnostics, BITE
etc).
Behaviour of support equipment (test equipment in
a facility)
Activities performed (work, tasks) by people
acting on a product ( asses impact, design,
manufacture, test, repair, move etc)
11
SC4 issues

• Need to extend Part 41 to address Extensible
  Selects (and other EXPRESS 2 features?)
• Need to provide more EXPRESS 2 tools
• Need to reduce overload on product
• Need to identify, and distinguish between, life
  cycle stages
• Need to provide linkage from STEP to Reference
  Data and Catalogues
• Set theory IR
• Concepts of Class (?)
• Need to extend Part 49 to address work planning?
• Need to develop common modules for new APs to
  address task, action, activity, function,
  behaviour (doing)?

12
PLCS Intentions

• Work with PDES, Inc to complete the PDM Modules
  (quickly) as an essential foundation for the PLCS
  AP
• Help update Part 41 to reflect Extensible Select
• Are raising a SEDS Issue
• Can offer resource to solve this
• Are supporting AP221 in introducing the Set
  Theory IR
• Are working with AP233 to maximize common
  modules
• Common approach to product structure (start with
  required product?
• Common approach to defining properties, function
  and behaviour
• Will deliver a growing set of Application
  Modules, during 2002 using the new toolset
• Will publish a major new Modular AP in October

• PLCS is committed to STEP
• We need your help to further develop SC4
  capabilities to address full life cycle needs

13
Product Life Cycle Support InitiativeMembership
is growing why not join us!
Customers, Contractors and Software Vendors
working together to develop a neutral standard
for Product Life Cycle Support
