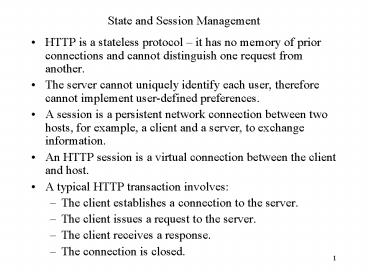

State and Session Management

1
State and Session Management

• HTTP is a stateless protocol it has no memory
  of prior connections and cannot distinguish one
  request from another.
• The server cannot uniquely identify each user,
  therefore cannot implement user-defined
  preferences.
• A session is a persistent network connection
  between two hosts, for example, a client and a
  server, to exchange information.
• An HTTP session is a virtual connection between
  the client and host.
• A typical HTTP transaction involves
• The client establishes a connection to the
  server.
• The client issues a request to the server.
• The client receives a response.
• The connection is closed.

2

• A virtual connection associated each request with
  the client that issued it.
• It is required that each client returns a piece
  of state information (session id or user id) with
  each request.
• The server uses the session id to uniquely
  identify each user and it with clients previous
  requests.
• A virtual connection, therefore, maintains the
  state and client identity across multiple
  requests (all sharing the same session ID).
• An HTTP session may expire after a period of
  inactivity.

3

• State Management is the ability to maintain a
  clients current state by passing the
  client-specific information with each request,
  for example, users preferences for a background
  color.. A server may not uniquely identify the
  clients identity.
• Session Management maintains both state and
  identity. The association in a session management
  exists for a period of time between a client a
  server across multiple requests.

4
Session Management

• Storing session Information in the URL Path.
• Rewritten URLs and hidden Variables
• Cookies

5
Storing Information in the URL Path

• Storing Session Information in the URL Path
• Server sends state information to the client.
• The client returns the state information with
  each request.
• The session ID is embedded in the URL path.
• The following sequence of actions take place
• The client requests a document at
  http//www.users.com/login.html - is a HTML form
  for users login name and password.
• When a valid users name and password are
  received, the server generates a unique session
  id and redirects the client to
• http//www.users.com/sessionID/12345/welcome.htm

6

• The server parses the path portion of all
  requested URLs for a valid session id.
• From this point onwards, the hyperlinks within
  all documents returned to the client will use
  only relative URLs. The browser automatically
  fills in the missing protocol, host and path
  information along with the session Id.
• This feature will work with all browsers
  (including those that do not support cookies.

7
Rewritten URLs

• Rewritten URLs pass state info. Between the
  client and the server by embedding information in
  the URL of all hyperlinks within an HTML
  document.
• An example scenario
• 1. The server presents the client with a form to
  choose the background color.
• ltPgt Please select a background color
• ltA HREFOrderServlet?bcolorbluegtBLUElt/Agt
• ltA HREFOrderServlet?bcolorgreengtGREENlt/Agt

8
Rewritten URLs

• 2.The color preference is transmitted between the
  client and the server with each request.
• The HTML form below is returned to the client
• ltHTMLgt
• ltBODY BGCOLOR0000FFgt lt! background is blue
• ltPgtPlease select from the list belowlt/Pgt
• ltA HREF/catalog.htm?bcolorbluegtBook
  Cataloglt/Agt
• ltA HREFsearch.htm?bcolorbluegtSearch The
  sitelt/Agt
• The server added the query string bcolorblue to
  every hyperlink in the document.

9
Rewritten URLs

• Instead of storing a clients preference, a
  Session Id can be used in place of preference,
  for session management.
• Rewritten URLs are effective only when the client
  follows a hyperlink. If the form is submitted
  without following the hyper link, the
  state/session information is not passed to the
  server.

10
Hidden Variables

• Hidden variables in an HTML form operate like
  other input fields (Text fields, check boxes,
  radio buttons) and transmit information as
  name/value pairs.
• The hidden fields are not visible to the to the
  client (hence cannot modify).
• Hidden variables work only when the client
  submits the HTML form.

11
Example

• 1. The server presents the client with a form to
  choose the background color.
• ltFORM ACTIONSomeServlet METHOD POSTgt
• ltINPUT TYPERADIOgtBLUE NAMEbcolorVALUEblue
  lt/Agt
• 2. On receiving the HTML form, the server
  extracts the value of bcolor and constructs the
  next HTML page and sets the background to blue.
  The color preference is stored in a hidden
  variable in the document.
• ltBODY BGCOLOR0000FFgt
• ltFORM ACTIONSomeServlet METHODPOST
• ltPgtPlease enter your last name
• ltINPUT TYPETEXT NAMEname SIZE25
• ltINPUT TYPEHIDDEN NAMEbcolor VALUE
  bluegt

12
Rewritten URLs and Hidden variables

• It is sometimes necessary to use both rewritten
  URLs and hidden variables to maintain state and
  session with HTTP.
• All hyperlinks will contain session ID.
• All HTML forms will contain hidden variables with
  Session ID.

13
Using Rewritten URLs and Hidden Variables

• A typical scenario of events
• The user requests a page from a web-site.
• The server returns an HTML form prompting the
  user to enter his/her name and email address and
  preferred background color. The HTML form
  contains a hidden variable that holds a session
  ID for this client.
• The user completes the form and clicks the submit
  button.
• The users input is sent to the server along with
  the session id.
• The server extracts the users name, email
  address and color preference and session id from
  the request and stores them in a DB.
• An HTML document containing the same session id
  is stored in all hidden fields and URLs for all
  hyperlinks

14
Cookies

• Cookies offer a mechanism to store state
  information on the client.
• The server instructs the client to store some
  amount of state information.
• The information stored at the client is returned
  to the server with each request.
• Advantages
• It is not necessary to return the session
  information to the client as is necessary with
  rewritten URLs and hidden variables.
• Do not require the parsing of the requested URL.
• Cookie information is extracted from the client
  request using simple Servlet API methods.
