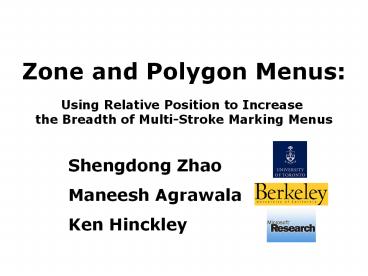

Zone and Polygon Menus
Using Relative Position to Increase the Breadth
of Multi-Stroke Marking Menus

• Shengdong Zhao
• Maneesh Agrawala
• Ken Hinckley

2
Marking Menus

• Compound-stroke Marking Menus
• Kurtenbach and Buxton, 1993

3
Compound-stroke Marking Menus
Novice Mode
4
Compound-stroke Marking Menus
Novice Mode
Expert Mode
5
Compound-stroke Marking Menus
Novice Mode
6
Compound-stroke Marking Menus
Novice Mode
Expert Mode
7
Compound-stroke Marking Menus

• Advantages Kurtenbach and Buxton, 1993
• Seamless novice to expert transition
• 3.5 x faster than linear menus
• Scale invariance

8
Compound-stroke Marking Menus

• Limitations Error Rate Kurtenbach and Buxton,
  1993
• Breadth/depth speed/accuracy trade-off

8
9
Compound-stroke Marking Menus

• Limitations Error Rate Kurtenbach and Buxton,
  1993
• Breadth/depth/speed/accuracy trade-off

8
8x8
10
Marking Menus

• Compound-stroke Marking Menus
• Kurtenbach and Buxton, 1993
• Multi-stroke Marking Menus
• Zhao and Balakrishnan, 2004

11
Multi-stroke Marking Menu
Novice Mode
12
Multi-stroke Marking Menu
Novice Mode
Expert Mode
13
Multi-stroke Marking Menu
Novice Mode
14
Multi-stroke Marking Menu
Novice Mode
Expert Mode
15
Multi-stroke Marking Menus

• Advantages Zhao and Balakrishnan, 2004
• Faster, more accurate
• Space efficient
• Increase hierarchy depth

16
Multi-stroke Marking Menus

• Limitations
• Breadth limit remains

17
Observations Word Menu
File 15 Submenu Items
18
Observations Word Menu
Tools 17 Submenu Items
19
Observations Word Menu
Average breadth 13.7 items Minimum breadth
Window (4 items) Maximum breadth Tools (17
items)
20
Limitations - Breadth
21
Limitations - Breadth
Expert
Novice
Save
Group 2
Level-2
Level-1
22
Geometric Design Space
23
Geometric Design Space
24
Geometric Design Space
25
Geometric Design Space
Compound-stroke Marking Menus Multi-stroke
Marking Menus
26
Geometric Design Space
Compound-stroke Marking Menus Multi-stroke
Marking Menus
27
Geometric Design Space
Compound-stroke Marking Menus Multi-stroke
Marking Menus Orientation-based Marking Menus
28
Geometric Design Space
29
Relative Position
Input Area
30
Relative location orientation
Input Area
Scale Independent
31
Relative location orientation
Input Area
Scale Independent
32
Zone Menus
33
Zone Menus
34
Zone Menus
35
Zone Menus
36
Zone Menus
37
Polygon Menu
Input Area
Orientation-based
Polygon
38
Polygon Menu
Input Area
Orientation-based
Polygon
39
Polygon Menu
Input Area
Orientation-based
Polygon
40
Polygon Menu
Input Area
Orientation-based
Polygon
41
Polygon Menu
Input Area
Orientation-based
Polygon
42
Polygon Menu
Input Area
Orientation-based
Polygon
43
Polygon Menu
Input Area
Orientation-based
Polygon
44
Polygon Menu
Input Area
Orientation-based
Polygon
45
Polygon Menu
Input Area
Orientation-based
Polygon
46
Polygon Menu
Input Area
Orientation-based
Polygon
47
Polygon Menu
Input Area
Orientation-based
Polygon
48
Polygon Menu
Input Area
Orientation-based
Polygon
49
Polygon Menu
50
Zone vs. Polygon

• Stroke directions

Zone
51
Zone vs. Polygon

• Strokes directions

Polygon
Zone
52
Zone vs. Polygon

• Strokes directions

Polygon
Zone
53
Polygon vs. Zone

• Parallel strokes
• Zone arrangement

Zone
54
Polygon vs. Zone

• Parallel strokes
• Zone arrangement

Polygon
Zone
55
Evaluation

• Breadth gt 8

56
Evaluation

• Breadth gt 8
• Breadth 12

Orientation 12
Zone 12
Polygon 12
57
Evaluation

• Breadth gt 8
• Breadth 12, 1212

Orientation 1212
Zone 1212
Polygon 1212
58
Evaluation

• Breadth gt 8
• Breadth 12, 1212
• Breadth 16

Orientation 16
Zone 16
Polygon 16
59
Evaluation

• Breadth gt 8
• Breadth 1212
• Breadth 16

Orientation 16
Zone 16
Polygon 16
60
Evaluation

• Breadth gt 8
• Breadth 12, 1212
• Breadth 16 (44)

Orientation 44
Zone 16
Polygon 16
61
Evaluation

• Breadth gt 8
• Breadth 12, 1212
• Breadth 16 (44), 1616

Orientation 1616
Polygon 1616
Zone 1616
62
Evaluation

• Breadth gt 8
• Breadth 12, 1212
• Breadth 16 (44), 1616

Orientation 1616
Polygon 1616
Zone 1616
63
Evaluation

• Breadth gt 8
• Breadth 12, 1212
• Breadth 16 (44), 1616 (884)

Orientation 884
Polygon 1616
Zone 1616
64
Experiment Setup
65
Experiment 1 Video Clip
66
Dependent Variables
Start Stimulus
67
Dependent Variables
Start Stimulus
Start Drawing
68
Dependent Variables
Start Stimulus
Reaction Time
Start Drawing
69
Dependent Variables
Start Stimulus
Reaction Time
Start Drawing
Execution Time
End Drawing
70
Dependent Variables
Start Stimulus
Reaction Time

Total Time
Start Drawing
Execution Time
End Drawing
71
Dependent Variables
Start Stimulus
Reaction Time

Total Time
Start Drawing
Execution Time
End Drawing
Accuracy
72
Result 12, 144 Items
Polygon
Orientation
Zone
12
12 12
73
Accuracy 12, 144 Items
74
Accuracy 12, 144 Items
Technique (F2,1615.71, plt.01).
(87.1)
75
Accuracy 12, 144 Items
Technique (F2,1615.71, plt.01).
(87.1)
(97.7)
(98.2)
76
Accuracy 12, 144 Items
Technique (F2,1615.71, plt.01).
(87.1)
(97.7)
(98.2)
Technique x Depth Interaction
(F2,1615.71, plt.01).
77
Accuracy 12, 144 Items
Technique (F2,1615.71, plt.01).
(87.1)
(97.7)
(98.2)
Technique x Depth Interaction
(F2,1615.71, plt.01).
78
Time 12, 144 Items
Reaction
79
Time 12, 144 Items
Reaction
Execution
80
Execution Time
is faster than
Orientation 12
Zone Polygon 12
81
Time 12, 144 Items
Reaction
Execution
Total
82
Result 16 Items
Polygon
Zone
Orientation
4 4
16
8 8 4
16 16
83
Result 16, 256 Items
Polygon
Zone
Orientation
4 4
16
8 8 4
16 16
84
Accuracy 16, 256 Items
85
Time 16, 256 Items
Reaction
Execution
Total
86
Time
is slower than
Orientation 44
Zone Polygon 16
is slower than
Orientation 884
Zone Polygon 1616
87
Experiment 2
Input Area
Small Input Area
88
Experiment 2
Input Area
origin
Small Input Area
89
Experiment 2 Video Clip
90
Result Experiment 2

• Zone and Polygon menu has faster execution time
  (12, 144 items)

Experiment 1
Experiment 2
91
Result Experiment 2

• Zone and Polygon menu has faster execution time
  (12, 144 items)

Experiment 1
Experiment 2
92
Summary

• Exceeding breadth-8
• Zone and Polygon Menus

93
Summary

• Exceeding breadth-8
• Zone and Polygon Menus
• Breadth-depth tradeoff
• faster than

94
Summary

• Exceeding breadth-8
• Zone and Polygon Menus
• Breadth-depth tradeoff
• faster than
• faster than

95
Summary

• Exceeding breadth-8
• Zone and Polygon Menus
• Breadth-depth tradeoff
• faster than
• faster than
• Zone vs. Polygon
• Polygon slightly faster, more accurate

96
Summary

• Exceeding breadth-8
• Zone and Polygon Menus
• Breadth-depth tradeoff
• faster than
• faster than
• Zone vs. Polygon
• Polygon slightly faster, more accurate
• Zone scale to 32

97
Summary

• Exceeding breadth-8
• Zone and Polygon Menus
• Breadth-depth tradeoff
• faster than
• faster than
• Zone vs. Polygon
• Polygon slightly faster, more accurate
• Zone scale to 32
• Polygon 9-16, Zone 17-32

98
Summary

• Exceeding breadth-8
• Zone and Polygon Menus
• Breadth-depth tradeoff
• faster than
• faster than
• Zone vs. Polygon
• Polygon slightly faster, more accurate
• Zone scale to 32
• Polygon 9-16, Zone 17-32
• Hybrid Menus

99
Future Work

• Longitudinal study

100
Future Work

• Longitudinal study
• Support motor impaired users

Small Input Area
EdgeWrite Wobbrock et al. 2003
101
Future Work

• Longitudinal study
• Support motor impaired users
• Explore
• Curvature
• Velocity/acceleration
• Pen tilt

102
Acknowledgment
Ed Cutrell, Patrick Baudisch, Mary Czerwinski,
Michael McGuffin, Mark Chignell, Anna Malandrino,
Alvin Chin, Annie Xu Thank You! Questions?
