Texture Tricks

1

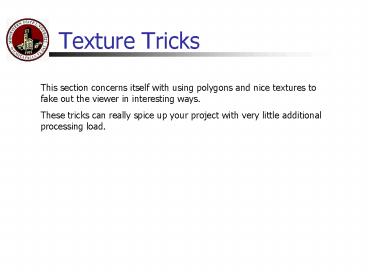

Texture Tricks
This section concerns itself with using polygons
and nice textures to fake out the viewer in
interesting ways. These tricks can really spice
up your project with very little additional
processing load.
2
Billboards

• Billboards are textured polygons (usually quads)
• The quads are always rendered so that they are
  facing the Viewer.
• IE as the viewer moves about the world the
  polygon tracks the viewer keeping its normal
  pointing toward the viewer.
• See tutorials at Lighthouse3d and NeHe

3
Example Tree Texture
The black background will be made
transparent! This background must be all ONE
color in order to do this.
4
What are they used for

• Scenery
• Trees, grass, spectators
• Mesh simplification
• Replace far-away objects with billboards
• Non-polygonal objects
• Fire, smoke, clouds, particles

5
Billboard basics

• When drawing the textured polygon we need to
  remove texture background using either
• Masking
• Alpha blending

6
Buildboards using Masking

• Each texel (texture element) has alpha value 0 or
  1
• Only draw texels with alpha value 1

void glAlphaFunc(GLenum func, GLclampf ref)
func when to render the texel GL_NEVER,
GL_LESS, GL_EQUAL, etc ref value to compare
texel alpha with
glAlphaFunc(GL_GREATER, 0.5f) glEnable(GL_ALPHA,T
EST)
7
Billboards using Blending

• Each texel has an alpha value in the range from 0
  to 1
• Alpha value is used to blend each texel with the
  background
• Use glBlendFunc() to do this
• glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA
  )
• glEnable(GL_BLEND)
• Must turn off depth buffer testing
• glDisable(GL_DEPTH_TEST)

8
Using Blending Cont.

• Advantages
• Smooth blending with background
• Partially transparent objects possible
• Disadvantages
• Takes longer to render
• Rendering must be done in depth sorted order
  (front-to-back or back-to-front)
• Blending is generally render order dependent

9
Use multiple Billboards
Use one or more intersecting polygons to
construct a complicated image.
10
Make a forest

• Here we draw a large number of billboarded trees
  in random locations.
• We can add variation by
• Scaling the billboards slightly
• Changing the overshading of each billboard
• Rotation around the axis of symmetry.
• Multitexturing tricks
• Use several tree textures

11
Here is one
12
Some code

• for(vectorltTreegtconst_iterator ti
  forest.begin() ti ! forest.end() ti)
• glPushMatrix()
• // Place the tree and scale it
• glTranslatef(ti-gtx, 0, ti-gtz)
• glScalef(ti-gtwidthscale, ti-gtheightscale,
  ti-gtwidthscale)
• // With the GL_MODULATE texture mode the texture
  colours are multiplied by //the glColor values.
  This is an easy way to make a texture lighter or
  darker, or // even give it a tint.
• glColor3f(ti-gtlightness, ti-gtlightness,
  ti-gtlightness)
• glRotatef(ti-gtrot, 0,1,0)
• glBegin(GL_QUADS)
• glTexCoord2f(0, 1) glVertex3f(-1, 0, 0)
• glTexCoord2f(0, 0) glVertex3f(-1, 2, 0)
• glTexCoord2f(1, 0) glVertex3f( 1, 2, 0)
• glTexCoord2f(1, 1) glVertex3f( 1, 0, 0)
• glEnd()
• glPopMatrix()

Should these be objects in our scene graph?
13
Aligning billboards

• Billboard polygons obvious when viewing nearly
  edge-on
• Possible solution lock billboard rotation axes
  to camera rotation
• Billboard always facing camera
• Need only one billboard per object
• Works best for symmetric objects in a crowded
  scene (trees in forest, people in a stadium)
• Often only lock heading, not pitch/bank

14
Align with projection plane

• Set billboard rotation such that it faces the
  cameras projection plane

• Ways to do this
• 1. Set billboard rotation of locked axes equal to
  camera rotation
• 2. Render billboards in camera coordinates
  without rotation

Projection plane
15
Align with camera position

• Billboard rotated so that normal points at camera
  position

Projection plane
16
Align with camera position

• Compute vector from billboard to camera
• Heading/pitch of vector gives rotation for locked
  heading/pitch
• Construct coord system for billboard using camera
  to centre of billboard vector, and an up vector
• Put in matrix and multiply with modelview matrix
• Dont use a wide field of view

17
What are the camera coordinates.

• Recall that the modelview matrix moves the
  eye(camera) coordinate system to 0 looking along
  the z axis.
• So what was the coordinate system before we
  transformed it.
• We can find this out by taking the inverse of the
  modelview matrix(Why)

18
Inverse of ModelView matrix

• First get the matrix
• GLfloat viewMatrix16
• glGetFloatv(GL_MODELVIEW_MATRIX,viewMatrix)
• Recall that the modelview matrix looks like

Right-gt Up -gt
Matrix M transpose(M)
19
Extract the up and right vectors

• Vector right(viewMatrix0,viewMatrix4,viewMatri
  x8)
• Vector up(viewMatrix1,viewMatrix5,viewMatrix9
  )
• Now let centerpoint be the location of the quad
  that you want to draw.
• The four corners can be found by
• Pointctrpointupht_scale rightwd_scale

20
Specifically we have
up

• //bottom left
• glTexCoord2f(0.0,0.0)
• glVertex3fv(point(rightup)-size)
• //bottom right
• glTexCoord2f(0.0,0.0)
• glVertex3fv(point(right-up)size)

right
21
Display a lot of Cacti

• void DrawCacti()
• // make sure the random numbers we generate are
  the same every time
• srand(100)
• // make sure the transparent part of the
  texture isn't drawn
• glEnable(GL_BLEND)
• // glBlendFunc(SOURCE, DESTINATION). Recall that
  the Source fragment is
• // written on top of the Destination(ie frame
  buffer)
• glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA
  )
• // This compares and incoming alpha value with a
  reference value. Fragment
• // is accepted or rejected based on this value.
• glEnable(GL_ALPHA_TEST)
• glAlphaFunc(GL_GREATER, 0) // accept if
  greater than 0

22
Continued

• // get the modelview matrix
• float mat16
• glGetFloatv(GL_MODELVIEW_MATRIX, mat)
• // get the right and up vectors
• vector3_t right(mat0, mat4, mat8)
• vector3_t up(mat1, mat5, mat9)
• // select the cactus texture
• glBindTexture(GL_TEXTURE_2D, g_cactus)
• glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE,
  GL_REPLACE)

23
Continued

• // draw all cacti
• glBegin(GL_QUADS)
• for (int n 0 n lt NUM_CACTI n)
• // randomly size the cactus
• float size 5.0f FRAND 3.0f
• // pick a random position on the map
• vector3_t pos(RAND_COORD((MAP_X - 1)
  MAP_SCALE), 0.0, -RAND_COORD((MAP_Z - 1)
  MAP_SCALE))
• pos.y GetHeight(pos.x, pos.z) size -
  0.5f

24
Continued

• // bottom left corner
• glTexCoord2f(0.0, 0.0) glVertex3fv((pos
  (right up) -size).v)
• // bottom right corner
• glTexCoord2f(1.0, 0.0) glVertex3fv((pos
  (right - up) size).v)
• // top right corner
• glTexCoord2f(1.0, 1.0) glVertex3fv((pos
  (right up) size).v)
• // top left corner
• glTexCoord2f(0.0, 1.0) glVertex3fv((pos
  (up - right) size).v)
• glEnd()
• glDisable(GL_ALPHA)
• glDisable(GL_BLEND)
• // end DrawCacti()

25
Check out Tree Companies

• Marlin Studios Tree Farm
• Realworld Imagery Trees etc
• A comparison of SpeedTree Max vrs natFX
• TreeGenerator website (Builds 3D trees)

26
Billboard Clouds( Siggraph 2003)

• Just recently a new method for extreme
  simplification has appeared on the scene.
• Siggraph 2003 contains a paper entitled
  Billboard Clouds for Extreme Model
  Simplification by Decoret, Durand, Sillion and
  Dorsey.
• 3D models are simplified onto a set of planes
  with texture and transparency maps.

27
(No Transcript)
28
Imposters

• An imposter is a billboard created on the fly to
  cache rendered imagery
• Once rendered, cost of rendering and imposter is
  just a single textured quad
• Can use for a few frames before updating
• Can use for a few instances of the object.

29
Skyboxes

• Here we create a cube that is centered at the
  location of the camera.
• The cube moves with the viewer but does not
  rotate( ie it stays axis aligned)
• The textures are pre-calculated to map the inside
  of the cube at the distance given.

30
Drawing methods

• Draw skybox first
• Turn off depth buffer writing
• Draw cube
• Note that the sky box looks the same no matter
  what size it is.
• Use fog to hide the edge of the terrain
• Skybox not affected by fog, as it is actually
  draw very near the camera.
• On the other hand you could turn off fog for the
  skybox to keep it from being fogged out, so to
  speak.
• Opengl1.3 has a special cube-mapping texture mode
  for texturing skyboxs using one texture.

31
Example skybox
32
Point sprites

• A point sprite is a screen-aligned textured quad
  placed by rendering a single vertex.
• Nice for particle systems
• When GL_POINT_SPRITE_NV is enabled
• Point antialiasing state ignored all points
  become quads
• Points rendered with point width as usual
• Texture coords of points can be replaced by
  special point sprite tex coords s,t,r between
  0,1
• Tex coord r is special, can set to zero (default)
  or use to play through an animation stored in
  3D text
• For hardware acceleration on GF3, set r t0 0
  (default) and enable coordinate replacement for
  tex unit 3 only.

33
Example
Each little fuzzy image is a point sprite.
