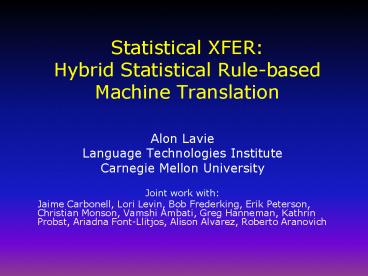

Statistical XFER: Hybrid Statistical Rule-based Machine Translation

1
Statistical XFERHybrid Statistical Rule-based
Machine Translation

• Alon Lavie
• Language Technologies Institute
• Carnegie Mellon University
• Joint work with
• Jaime Carbonell, Lori Levin, Bob Frederking, Erik
  Peterson, Christian Monson, Vamshi Ambati, Greg
  Hanneman, Kathrin Probst, Ariadna Font-Llitjos,
  Alison Alvarez, Roberto Aranovich

2
Outline

• Background and Rationale
• Stat-XFER Framework Overview
• Elicitation
• Learning Transfer Rules
• Automatic Rule Refinement
• Example Prototypes
• Major Research Challenges

3
Progression of MT

• Started with rule-based systems
• Very large expert human effort to construct
  language-specific resources (grammars, lexicons)
• High-quality MT extremely expensive ? only for
  handful of language pairs
• Along came EBMT and then Statistical MT
• Replaced human effort with extremely large
  volumes of parallel text data
• Less expensive, but still only feasible for a
  small number of language pairs
• We traded human labor with data
• Where does this take us in 5-10 years?
• Large parallel corpora for maybe 25-50 language
  pairs
• What about all the other languages?
• Is all this data (with very shallow
  representation of language structure) really
  necessary?
• Can we build MT approaches that learn deeper
  levels of language structure and how they map
  from one language to another?

4
Rule-based vs. Statistical MT

• Traditional Rule-based MT
• Expressive and linguistically-rich formalisms
  capable of describing complex mappings between
  the two languages
• Accurate clean resources
• Everything constructed manually by experts
• Main challenge obtaining broad coverage
• Phrase-based Statistical MT
• Learn word and phrase correspondences
  automatically from large volumes of parallel data
• Search-based decoding framework
• Models propose many alternative translations
• Effective search algorithms find the best
  translation
• Main challenge obtaining high translation
  accuracy

5
Main Principles of Stat-XFER

• Integrate the major strengths of rule-based and
  statistical MT within a common framework
• Linguistically rich formalism that can express
  complex and abstract compositional transfer rules
• Rules can be written by human experts and also
  acquired automatically from data
• Easy integration of morphological analyzers and
  generators
• Word and basic phrase correspondences (i.e. base
  NPs) can be automatically acquired from parallel
  text when available
• Search-based decoding from statistical MT adapted
  to find the best translation within the search
  space multi-feature scoring, beam-search,
  parameter optimization, etc.
• Framework suitable for both resource-rich and
  resource-poor language scenarios

6
Stat-XFER MT Approach

• Interlingua

Semantic Analysis
Sentence Planning
Syntactic Parsing
Text Generation
Transfer Rules
Statistical-XFER
Source (e.g. Quechua)
Target (e.g. English)
Direct SMT, EBMT
7
(No Transcript)
8
Transfer Rule Formalism
SL the old man, TL ha-ish ha-zaqen NPNP
DET ADJ N -gt DET N DET ADJ ( (X1Y1) (X1Y3)
(X2Y4) (X3Y2) ((X1 AGR) 3-SING) ((X1 DEF
DEF) ((X3 AGR) 3-SING) ((X3 COUNT)
) ((Y1 DEF) DEF) ((Y3 DEF) DEF) ((Y2 AGR)
3-SING) ((Y2 GENDER) (Y4 GENDER)) )

• Type information
• Part-of-speech/constituent information
• Alignments
• x-side constraints
• y-side constraints
• xy-constraints,
• e.g. ((Y1 AGR) (X1 AGR))

9
Transfer Rule Formalism (II)
SL the old man, TL ha-ish ha-zaqen NPNP
DET ADJ N -gt DET N DET ADJ ( (X1Y1) (X1Y3)
(X2Y4) (X3Y2) ((X1 AGR) 3-SING) ((X1 DEF
DEF) ((X3 AGR) 3-SING) ((X3 COUNT)
) ((Y1 DEF) DEF) ((Y3 DEF) DEF) ((Y2 AGR)
3-SING) ((Y2 GENDER) (Y4 GENDER)) )

• Value constraints
• Agreement constraints

10
Hebrew Manual Transfer Grammar (human-developed)

• Initially developed in a couple of days, with
  some later revisions by a CL post-doc
• Current grammar has 36 rules
• 21 NP rules
• one PP rule
• 6 verb complexes and VP rules
• 8 higher-phrase and sentence-level rules
• Captures the most common (mostly local)
  structural differences between Hebrew and English

11
Hebrew Transfer GrammarExample Rules
NP1,2 SL MLH ADWMH TL A RED
DRESS NP1NP1 NP1 ADJ -gt ADJ
NP1 ( (X2Y1) (X1Y2) ((X1 def) -) ((X1
status) c absolute) ((X1 num) (X2 num)) ((X1
gen) (X2 gen)) (X0 X1) )
NP1,3 SL H MLWT H ADWMWT TL THE RED
DRESSES NP1NP1 NP1 "H" ADJ -gt ADJ
NP1 ( (X3Y1) (X1Y2) ((X1 def) ) ((X1
status) c absolute) ((X1 num) (X3 num)) ((X1
gen) (X3 gen)) (X0 X1) )
12
The XFER Engine

• Input source-language input sentence, or
  source-language confusion network
• Output lattice representing collection of
  translation fragments at all levels supported by
  transfer rules
• Basic Algorithm bottom-up integrated
  parsing-transfer-generation guided by the
  transfer rules
• Start with translations of individual words and
  phrases from translation lexicon
• Create translations of larger constituents by
  applying applicable transfer rules to previously
  created lattice entries
• Beam-search controls the exponential
  combinatorics of the search-space, using multiple
  scoring features

13
Source-language Confusion Network Hebrew Example

• Input word BWRH
• 0 1 2 3 4
• --------BWRH--------
• -----B-----WR--H--
• --B---H----WRH---

14
XFER Output Lattice
(28 28 "AND" -5.6988 "W" "(CONJ,0 'AND')") (29 29
"SINCE" -8.20817 "MAZ " "(ADVP,0 (ADV,5 'SINCE'))
") (29 29 "SINCE THEN" -12.0165 "MAZ " "(ADVP,0
(ADV,6 'SINCE THEN')) ") (29 29 "EVER SINCE"
-12.5564 "MAZ " "(ADVP,0 (ADV,4 'EVER SINCE'))
") (30 30 "WORKED" -10.9913 "BD " "(VERB,0 (V,11
'WORKED')) ") (30 30 "FUNCTIONED" -16.0023 "BD "
"(VERB,0 (V,10 'FUNCTIONED')) ") (30 30
"WORSHIPPED" -17.3393 "BD " "(VERB,0 (V,12
'WORSHIPPED')) ") (30 30 "SERVED" -11.5161 "BD "
"(VERB,0 (V,14 'SERVED')) ") (30 30 "SLAVE"
-13.9523 "BD " "(NP0,0 (N,34 'SLAVE')) ") (30 30
"BONDSMAN" -18.0325 "BD " "(NP0,0 (N,36
'BONDSMAN')) ") (30 30 "A SLAVE" -16.8671 "BD "
"(NP,1 (LITERAL 'A') (NP2,0 (NP1,0 (NP0,0
(N,34 'SLAVE')) ) ) ) ") (30 30 "A BONDSMAN"
-21.0649 "BD " "(NP,1 (LITERAL 'A') (NP2,0
(NP1,0 (NP0,0 (N,36 'BONDSMAN')) ) ) ) ")
15
The Lattice Decoder

• Simple Stack Decoder, similar in principle to
  simple Statistical MT decoders
• Searches for best-scoring path of non-overlapping
  lattice arcs
• No reordering during decoding
• Scoring based on log-linear combination of
  scoring components, with weights trained using
  MERT
• Scoring components
• Statistical Language Model
• Fragmentation how many arcs to cover the entire
  translation?
• Length Penalty
• Rule Scores
• Lexical Probabilities

16
XFER Lattice Decoder
0 0 ON THE FOURTH DAY THE LION ATE THE RABBIT
TO A MORNING MEAL Overall -8.18323, Prob
-94.382, Rules 0, Frag 0.153846, Length 0,
Words 13,13 235 lt 0 8 -19.7602 B H IWM RBII
(PP,0 (PREP,3 'ON')(NP,2 (LITERAL 'THE') (NP2,0
(NP1,1 (ADJ,2 (QUANT,0 'FOURTH'))(NP1,0 (NP0,1
(N,6 'DAY')))))))gt 918 lt 8 14 -46.2973 H ARIH
AKL AT H PN (S,2 (NP,2 (LITERAL 'THE') (NP2,0
(NP1,0 (NP0,1 (N,17 'LION')))))(VERB,0 (V,0
'ATE'))(NP,100 (NP,2 (LITERAL 'THE') (NP2,0
(NP1,0 (NP0,1 (N,24 'RABBIT')))))))gt 584 lt 14 17
-30.6607 L ARWXH BWQR (PP,0 (PREP,6 'TO')(NP,1
(LITERAL 'A') (NP2,0 (NP1,0 (NNP,3 (NP0,0 (N,32
'MORNING'))(NP0,0 (N,27 'MEAL')))))))gt
17
Data Elicitation for Languages with Limited
Resources

• Rationale
• Large volumes of parallel text not available ?
  create a small maximally-diverse parallel corpus
  that directly supports the learning task
• Bilingual native informant(s) can translate and
  align a small pre-designed elicitation corpus,
  using elicitation tool
• Elicitation corpus designed to be typologically
  and structurally comprehensive and compositional
• Transfer-rule engine and new learning approach
  support acquisition of generalized transfer-rules
  from the data

18
Elicitation Tool English-Chinese Example
19
Elicitation ToolEnglish-Chinese Example
20
Elicitation ToolEnglish-Hindi Example
21
Elicitation ToolEnglish-Arabic Example
22
Elicitation ToolSpanish-Mapudungun Example
23
Designing Elicitation Corpora

• Goal Create a small representative parallel
  corpus that contains examples of the most
  important translation correspondences and
  divergences between the two languages
• Method
• Elicit translations and word alignments for a
  broad diversity of linguistic phenomena and
  constructions
• Current Elicitation Corpus 3100 sentences and
  phrases, constructed based on a broad
  feature-based specification
• Open Research Issues
• Feature Detection discover what features exist
  in the language and where/how they are marked
• Example does the language mark gender of nouns?
  How and where are these marked?
• Dynamic corpus navigation based on feature
  detection no need to elicit for combinations
  involving non-existent features

24
Rule Learning - Overview

• Goal Acquire Syntactic Transfer Rules
• Use available knowledge from the source side
  (grammatical structure)
• Three steps
• Flat Seed Generation first guesses at transfer
  rules flat syntactic structure
• Compositionality Learning use previously learned
  rules to learn hierarchical structure
• Constraint Learning refine rules by learning
  appropriate feature constraints

25
Flat Seed Rule Generation
Learning Example NP Eng the big apple Heb ha-tapuax ha-gadol
Generated Seed Rule NPNP ART ADJ N ? ART N ART ADJ ((X1Y1) (X1Y3) (X2Y4) (X3Y2))
26
Compositionality Learning
Initial Flat Rules SS ART ADJ N V ART N ? ART N ART ADJ V P ART N ((X1Y1) (X1Y3) (X2Y4) (X3Y2) (X4Y5) (X5Y7) (X6Y8)) NPNP ART ADJ N ? ART N ART ADJ ((X1Y1) (X1Y3) (X2Y4) (X3Y2)) NPNP ART N ? ART N ((X1Y1) (X2Y2))
Generated Compositional Rule SS NP V NP ? NP V P NP ((X1Y1) (X2Y2) (X3Y4))
27
Constraint Learning
Input Rules and their Example Sets SS NP V NP ? NP V P NP ex1,ex12,ex17,ex26 ((X1Y1) (X2Y2) (X3Y4)) NPNP ART ADJ N ? ART N ART ADJ ex2,ex3,ex13 ((X1Y1) (X1Y3) (X2Y4) (X3Y2)) NPNP ART N ? ART N ex4,ex5,ex6,ex8,ex10,ex11 ((X1Y1) (X2Y2))
Output Rules with Feature Constraints SS NP V NP ? NP V P NP ((X1Y1) (X2Y2) (X3Y4) (X1 NUM X2 NUM) (Y1 NUM Y2 NUM) (X1 NUM Y1 NUM))
28
Automated Rule Refinement

• Bilingual informants can identify translation
  errors and pinpoint the errors
• A sophisticated trace of the translation path can
  identify likely sources for the error and do
  Blame Assignment
• Rule Refinement operators can be developed to
  modify the underlying translation grammar (and
  lexicon) based on characteristics of the error
  source
• Add or delete feature constraints from a rule
• Bifurcate a rule into two rules (general and
  specific)
• Add or correct lexical entries
• See Font-Llitjos, Carbonell Lavie, 2005

29
Stat-XFER MT Prototypes

• General Statistical XFER framework under
  development for past five years (funded by NSF
  and DARPA)
• Prototype systems so far
• Chinese-to-English
• Dutch-to-English
• French-to-English
• Hindi-to-English
• Hebrew-to-English
• Mapudungun-to-Spanish
• In progress or planned
• Brazilian Portuguese-to-English
• Native-Brazilian languages to Brazilian
  Portuguese
• Hebrew-to-Arabic
• Iñupiaq-to-English
• Urdu-to-English
• Turkish-to-English

30
Chinese-English Stat-XFER System

• Bilingual lexicon over 1.1 million entries
  (multiple resources, incl. ADSO, Wikipedia,
  extracted base NPs)
• Manual syntactic XFER grammar 76 rules! (mostly
  NPs, a few PPs, and reordering of NPs/PPs within
  VPs)
• Multiple overlapping Chinese word segmentations
• English morphology generation
• Uses CMU SMT-groups Suffix-Array LM toolkit for
  LM
• Current Performance (GALE dev-test)
• NW
• XFER 10.89(B)/0.4509(M)
• Best (UMD) 15.58(B)/0.4769(M)
• NG
• XFER 8.92(B)/0.4229(M)
• Best (UMD) 12.96(B)/0.4455(M)
• In Progress
• Automatic extraction of clean base NPs from
  parallel data
• Automatic learning and extraction of high-quality
  transfer-rules from parallel data

31
Translation Example

• REFERENCE When responding to whether it is
  possible to extend Russian fleet's stationing
  deadline at the Crimean peninsula, Yanukovych
  replied, "Without a doubt.
• Stat-XFER (0.3989) In reply to whether the
  possibility to extend the Russian fleet stationed
  in Crimea Pen. left the deadline of the problem ,
  Yanukovich replied " of course .
• IBM-ylee (0.2203) In response to the
  possibility to extend the deadline for the
  presence in Crimea peninsula , the Queen Vic said
  " of course .
• CMU-SMT (0.2067) In response to a possible
  extension of the fleet in the Crimean Peninsula
  stay on the issue , Yanukovych vetch replied "
  of course .
• maryland-hiero (0.1878) In response to the
  possibility of extending the mandate of the
  Crimean peninsula in , replied "of course.
• IBM-smt (0.1862) The answer is likely to be
  extended the Crimean peninsula of the presence of
  the problem, Yanukovych said " Of course.
• CMU-syntax (0.1639) In response to the
  possibility of extension of the presence in the
  Crimean Peninsula , replied " of course .

32
Major Research Directions

• Automatic Transfer Rule Learning
• From manually word-aligned elicitation corpus
• From large volumes of automatically word-aligned
  wild parallel data
• In the absence of morphology or POS annotated
  lexica
• Compositionality and generalization
• Identifying good rules from bad rules
• Effective models for rule scoring for
• Decoding using scores at runtime
• Pruning the large collections of learned rules
• Learning Unification Constraints

33
Major Research Directions

• Extraction of Base-NP translations from parallel
  data
• Base-NPs are extremely important building
  blocks for transfer-based MT systems
• Frequent, often align 1-to-1, improve coverage
• Correctly identifying them greatly helps
  automatic word-alignment of parallel sentences
• Parsers (or NP-chunkers) available for both
  languages Extract base-NPs independently on
  both sides and find their correspondences
• Parsers (or NP-chunkers) available for only one
  language (i.e. English) Extract base-NPs on one
  side, and find reliable correspondences for them
  using word-alignment, frequency distributions,
  other features
• Promising preliminary results

34
Major Research Directions

• Algorithms for XFER and Decoding
• Integration and optimization of multiple features
  into search-based XFER parser
• Complexity and efficiency improvements (i.e.
  Cube Pruning)
• Non-monotonicity issues (LM scores, unification
  constraints) and their consequences on search

35
Major Research Directions

• Discriminative Language Modeling for MT
• Current standard statistical LMs provide only
  weak discrimination between good and bad
  translation hypotheses
• New Idea Use occurrence-based statistics
• Extract instances of lexical, syntactic and
  semantic features from each translation
  hypothesis
• Determine whether these instances have been seen
  before (at least once) in a large monolingual
  corpus
• The Conjecture more grammatical MT hypotheses
  are likely to contain higher proportions of
  feature instances that have been seen in a corpus
  of grammatical sentences.
• Goals
• Find the set of features that provides the best
  discrimination between good and bad translations
• Learn how to combine these into a LM-like
  function for scoring alternative MT hypotheses

36
Major Research Directions

• Building Elicitation Corpora
• Feature Detection
• Corpus Navigation
• Automatic Rule Refinement
• Translation for highly polysynthetic languages
  such as Mapudungun and Iñupiaq

37
Questions?
