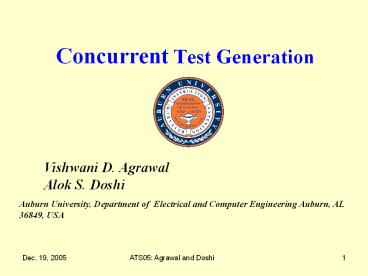

• Concurrent Test Generation

Vishwani D. Agrawal Alok S. Doshi
Auburn University, Department of Electrical and
Computer Engineering Auburn, AL 36849, USA
2
Problem Statement

• To find the smallest test set to detect all
  single stuck-at faults in a combinational
  circuit.
• An existing solution
• Group faults into fault sets using fault
  independence
• Generate concurrent tests for each group
• Contribution of this paper Devise a
  simulation-based implementation for this solution.

3
Outline

• Introduction
• Simulation-based Independence Fault Collapsing
• Simulation-based Concurrent Test Generation
• Results
• Conclusions

4
Introduction

• Problem of finding a minimal test
• Static compaction cannot guarantee optimality.
• Dynamic compaction is complex.
• Solution Target both faults F1 and F2 at the
  same time to find a single test. We define this
  as concurrent test generation.

.
.
.
T(F2)
T(F1)
Test set for fault F2
Test set for fault F1
v2
v1
v3
5
Fault Classification
T(F1)
T(F1) T(F2)
T(F2)
F1 and F2 are equivalent.
F1 dominates F2.
T(F1)
T(F2)
T(F1)
T(F2)
F1 and F2 are independent.
F1 and F2 are concurrently testable.
6
Example Circuit
2
4
a
x
1
5
b
3
7
11
c
y
d
6
10
9
All faults are Stuck-at-1 type
e
8
C17 - ISCAS85 Benchmark Circuit
1 R. K. K. R. Sandireddy and V. D. Agrawal,
Diagnostic and Detection Fault Collapsing for
Multiple Output Circuits, Proc. Design,
Automation and Test in Europe (DATE) Conf., Mar.
2005, pp. 1014 - 1019.
7
Independence Matrix and Graph
F 1 2 3 4 5 6 7 8 9 10 11
1 0 1 1 1 1 1 0 0 1 0 1
2 1 0 0 1 1 0 1 0 0 0 1
3 1 0 0 0 1 1 1 1 0 1 1
4 1 1 0 0 1 0 1 0 0 0 1
5 1 1 1 1 0 0 0 1 1 1 0
6 1 0 1 0 0 0 1 1 1 0 0
7 0 1 1 1 0 1 0 1 1 0 0
8 0 0 1 0 1 1 1 0 1 1 1
9 1 0 0 0 1 1 1 1 0 1 1
10 0 0 1 0 1 0 0 1 1 0 1
11 1 1 1 1 0 0 0 1 1 1 0
C17 - ISCAS85 Benchmark Circuit
8
Independence Fault Collapsing
A similarity based algorithm 2 collapses the
independence graph
5,11,7
1,8
3,9,2
4,6,10
C17 - ISCAS85 Benchmark Circuit
2 A. S. Doshi and V. D. Agrawal, Independence
Fault Collapsing, Proc. 9th VLSI Design and Test
Symp., Aug. 2005, pp. 357 - 364.
9
Simulation-based Independence Fault Collapsing

• The independence graph generation procedure 2
  requires ATPG.
• Here we present a new method for graph generation
  using simulation
• Start with a fully-connected independence graph
  for an equivalence collapsed fault set.
• Simulation of random vectors without fault
  dropping removes edges between faults detected by
  the same vector.

2 A. S. Doshi and V. D. Agrawal, Independence
Fault Collapsing, Proc. 9th VLSI Design and Test
Symp., Aug. 2005, pp. 357 - 364.
10
Simulation-based Independence Fault Collapsing
301
74181 4-bit ALU
11
Simulation-based Concurrent Test Generation

• For each group, generate all test vectors for the
  first fault in the group.
• If the number of test vectors for a fault is
  large, use a subset (e.g., 250 maximum) of
  vectors.
• Simulate all faults in the group to select one
  vector that detects most faults in that group.
• If more vectors than one detect the same number
  of faults within the group, then select the
  vector that detects most faults outside the group
  as well.

12
74181 4-bit ALU Result
Group number Number of faults in group Concurrent test vector
1 2 3 4 5 6 7 8 9 10 11 12 13 9 15 11 6 11 17 11 16 16 22 22 56 81 01100011111100 01101100000110 10100101111010 11011010100000 10110101011010 10100111101010 10010101001110 01000111101011 11100010010011 11011100110100 01010001100001 All 56 faults detected by eleven previously generated vectors 10101001110110
13
Results
Circuit No. of concurrent groups Concurrent ATPG Concurrent ATPG Single-fault ATPG Single-fault ATPG Single-fault ATPG Single-fault ATPG
Circuit No. of concurrent groups Vectors CPU s Atalanta Atalanta Best known Best known
Circuit No. of concurrent groups Vectors CPU s Vectors CPU s Vectors CPU s
1-b adder 2-b adder 4-b adder 8-b adder 16-b adder 32-b adder 4-b ALU c17 c432 c499 c880 c1355 c1908 c2670 c3540 c5315 c6288 c7552 5 5 5 7 7 7 13 4 30 52 24 84 106 81 107 92 23 190 5 5 5 7 9 11 12 4 34 52 29 84 111 92 130 104 25 198 0.085 0.092 0.103 0.182 3.3 9.7 11.4 0.082 10.4 14.6 23.3 34 49.6 57.6 119.6 216.3 158.1 360.7 5-7 7-9 8-11 10-15 13-22 17-25 22-40 6-9 49-77 54-68 52-106 85-109 118-173 106-192 147-263 114-224 32-48 209-358 0 0 0 0 0.017 0.050 0.033 0 0.083 0.033 0.133 0.1 0.5 1.2 1.9 0.733 4.7 5.283 5 5 5 5 5 5 12 4 27 52 16 84 106 44 84 37 12 73 - - - - - - - - 15 0.1 21.9 0.9 88.1 47.1 174.5 748.6 347.7 663.8
Sun Ultra 5 Pentium Pro PC
Hamzaoglu and Patel, IEEE-TCAD, 2000
14
Number of Vectors for Increasing Circuit Sizes
(100 Stuck-at Coverage)
Single-fault ATPG (no compaction)
Concurrent ATPG
Minimum achieved! (dynamic compaction)
15
CPU Seconds for Increasing Circuit Sizes (100
Stuck-at Fault Coverage)
Concurrent ATPG
Minimum achieved! (dynamic compaction)
16
Conclusion

• Concurrent test generation produces compact tests
  when combined with independence fault collapsing.
• ATPG and set covering problems have exponential
  time complexities. Hence, we cannot expect
  absolute optimality for large circuits.
• The concurrent ATPG procedure of this paper gives
  significantly smaller, and sometimes the optimum,
  test sets.
• There is scope for improving the simulation-based
  algorithms for independence fault collapsing and
  concurrent test generation.
