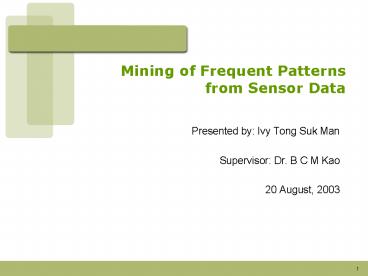

Mining of Frequent Patterns from Sensor Data

1
Mining of Frequent Patterns from Sensor Data

• Presented by Ivy Tong Suk Man
• Supervisor Dr. B C M Kao
• 20 August, 2003

2
Outline

• Outline of the Presentation
• Motivation
• Problem Definition
• Algorithm
• Apriori with data transformation
• Interval-List Apriori
• Experimental Results
• Conclusion

3
Motivation

• Continuous items
• reflect values from an entity that changes
  continuously in the external environment.
• Update ? Change of state of the real entity
• E.g. temperature reading data
• Initial temperature 25ºC at t0s
• Sequence of updates lttimestamp, new_tempgt
• lt1s, 27ºCgt, lt5s, 28ºCgt, lt10s, 26ºCgt, lt14s,..gt
• t0s to 1s, 25ºC
• t1s to 5s, 27ºC
• t5s to 10s, 28ºC
• What is the average temperature from t0s to 10s?
• Ans (25x127x428x5)/10 27.3ºC

4
Motivation

• Time is a component in some applications
• E.g. stock price quotes, network traffic data
• Sensors are used to monitor some conditions,
  for example
• Prices of stocks by getting quotations from a
  finance website
• Weather measuring temperature, humidity, air
  pressure, wind, etc.
• We want to find correlations of the readings
  among a set of sensors
• Goal To mine association rules from sensor data

5
Challenges

• How different is it from mining association rules
  from market basket data?
• Time component
• When searching for association rules in market
  basket data, time field is usually ignored as
  there is no temporal correlation between the
  transactions
• Streaming data
• Data arrives continuously, possibly infinitely,
  and in large volume

6
Notations

• We have a set of sensors R r1,r2,,rm
• Each sensor ri has a set of numerical states Vi
• Assume binary states for all sensors
• Vi 0,1 ?i s.t. ri ?R
• Dataset D a sequence of updates of sensor state
  in the form of ltts, ri, vigt where ri ?R, vi ?Vi
• ts timestamp of the update
• ri sensor to be updated
• vi new value of the state of ri
• For sensors with binary states
• update in form of ltts, rigt as the new state can
  be inferred by toggling the old state

7
Example

• RA,B,C,D,E,F
• Initial states all off
• D
• lt1,Agt
• lt2,Bgt
• lt4,Dgt
• lt5,Agt
• lt6,Egt
• lt7,Fgt
• lt8,Egt
• lt10,Agt
• lt11,Fgt
• lt13,Cgt

A
t
0
1
5
10
B
t
2
C
t
13
D
t
4
t
E
6
8
F
t
7
11
8
More Notations

• An association rule is a rule, satisfying certain
  support and confidence restrictions, in the
  form X ? Ywhere X?R, Y?R and X?Y?

9
More Notations

• Association rule X ? Y has confidence c,
• In c of the time when the sensors in X are ON
  (with state 1), the sensors in Y are ON
• Association rule X ? Y has support s,
• In s of the total length of history, the
  sensors in X and Y are ON

10
More Notations

• TLS(X) denote Total LifeSpan of X
• Total length of time that the sensors in X are ON
• T total length of history
• Sup(X) TLS(X)/T
• Conf(X ? Y) Sup(X U Y) / Sup(X)
• Example
• T 15s
• TLS(A)9, TLS(AB)8
• Sup(A) 9/15 60
• Sup(AB) 8/15 53
• Conf(A-gtB) 8/9 89

A
t
0
1
5
10
B
t
2
11
Algorithm A

• Transform Apriori
• Transform the sequence of updates to the form of
  market basket data
• At each point of update
• take a snapshot of the states of all sensors
• Output all sensors with stateon as a transaction
• Attach
• Weight(transaction)
• Lifespan(this update)
• timestamp(next update) timestamp(this
  update)

12
Algorithm A - Example

• Initial states all off
• D lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,
  Agt, lt11,Fgt,lt13,Cgt

A
t
0
1
5
10
B
t
2
Transformed database D
C
t
13
D
t
4
t
E
6
8
F
t
7
11
13
Algorithm A - Example

• Initial states all off
• D lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,
  Agt, lt11,Fgt,lt13,Cgt

A
t
0
1
5
10
B
t
2
Transformed database D
C
t
13
D
t
timestamp1
4
t
E
6
8
F
t
7
11
timestamp1
14
Algorithm A - Example

• Initial states all off
• D lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,
  Agt, lt11,Fgt,lt13,Cgt

A
t
0
1
5
10
B
t
2
Transformed database D
C
t
13
D
t
timestamp1
4
timestamp2
t
E
6
8
F
t
7
11
timestamp2
15
Algorithm A - Example

• Initial states all off
• D lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,
  Agt, lt11,Fgt,lt13,Cgt

A
t
0
1
5
10
B
t
2
Transformed database D
C
t
13
D
t
4
timestamp2
t
E
6
8
timestamp4
F
t
7
11
timestamp4
16
Algorithm A - Example

• Initial states all off
• D lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,
  Agt, lt11,Fgt,lt13,Cgt

A
t
0
1
5
10
B
t
2
Transformed database D
C
t
13
D
t
4
t
E
6
8
F
t
7
11
End of history 15s
timestamp13
17
Algorithm A - Example

• Initial states all off
• D lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,
  Agt, lt11,Fgt,lt13,Cgt

A
t
0
1
5
10
B
t
2
Transformed database D
C
t
13
D
t
4
t
E
6
8
F
t
7
11
18
Algorithm A

• Apply Apriori on the transformed dataset D
• Drawbacks
• A lot of redundancy
• Adjacent transactions may be very similar,
  differed by the one sensor with state update

19
Algorithm B

• Interval-List Apriori
• Uses an interval-list format
• ltX, interval1, interval2, interval3, gt
• where intervali is the interval in which all
  sensors in X are on.
• TLS(X) ? (intervali.h intervali.l)
• Example

A
t
0
1
5
10
ltA, 1,5), 10,15)gt TLS(A) (5-1) (15-10) 9
20
Algorithm B

• Step 1
• For each ri ?R,
• build a list of interval in which ri is ON by
  scanning the sequence of updates
• Calculate the TLS of each ri
• If TLS(ri) ? min_sup, put ri into L1

21
Algorithm B Example

• Initial states all off
• D
• lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,Agt,
  lt11,Fgt,lt13,Cgt

• ltA, emptygt
• ltB, emptygt
• ltC, emptygt
• ltD, emptygt
• ltE, emptygt
• ltF, emptygt

22
Algorithm B Example

• Initial states all off
• D
• lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,Agt,
  lt11,Fgt,lt13,Cgt

• ltA, 1,?)gt
• ltB, emptygt
• ltC, emptygt
• ltD, emptygt
• ltE, emptygt
• ltF, emptygt

23
Algorithm B Example

• Initial states all off
• D
• lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,Agt,
  lt11,Fgt,lt13,Cgt

• ltA, 1,?)gt
• ltB, 2,?)gt
• ltC, emptygt
• ltD, emptygt
• ltE, emptygt
• ltF, emptygt

24
Algorithm B Example

• Initial states all off
• D
• lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,Agt,
  lt11,Fgt,lt13,Cgt

• ltA, 1,5)gt
• ltB, 2,?)gt
• ltC, emptygt
• ltD, 4,?)gt
• ltE, emptygt
• ltF, emptygt

25
Algorithm B Example

• Initial states all off
• D
• lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,Agt,
  lt11,Fgt,lt13,Cgt

• ltA, 1,5),10,?)gt
• ltB, 2,?)gt
• ltC, 13,?)gt
• ltD, 4,?)gt
• ltE, 6,8)gt
• ltF, 7,11)gt

26
Algorithm B Example

• Initial states all off
• D
• lt1,Agt,lt2,Bgt,lt4,Dgt,lt5,Agt, lt6,Egt,lt7,Fgt,lt8,Egt,lt10,Agt,
  lt11,Fgt,lt13,Cgt

• ltA, 1,5),10,15)gt
• ltB, 2,15)gt
• ltC, 13,15)gt
• ltD, 4,15)gt
• ltE, 6,8)gt
• ltF, 7,11)gt

End of history T 15s
27
Algorithm B

• Step 2
• Find all larger frequent sensor-sets
• Similar to Apriori Frequent Itemst Property
• Any subset of a frequent sensor-set must be
  frequent.
• Method
• Generate candidates of size i1 from frequent
  sensor-sets of size i.
• Approach used join to obtain sensor-sets of size
  i1 if two size-i frequent sensor-sets agree on
  i-1
• May also prune candidates who have subsets that
  are not large.
• Count the support by merging (intersection of)
  the interval lists of the two size-i frequent
  sensor-sets
• If sup ? min_sup, put into Li1
• Repeat the process until the candidate set is
  empty

28
Algorithm B

• Example
• ltA, 1,5), 10,15)gt
• ltB, 2,15)gt
• ltAB, 2,5),10,15)gt

A
t
0
1
5
10
B
t
2
T15
29
Algorithm B (Example)
C
D
E
F
A
B
LS2
LS11
LS2
LS4
LS13
LS9
AB
AF
BF
BD
AD
LS1
LS4
LS11
LS6
LS8
ABD
Min support count 3
LS6
30
Algorithm B Candidate Generation

• When generating a candidate sensor-set C of size
  i from two size i-1 sensor-sets LA and LB
  (subsets of C), we also construct the interval
  list of C by intersecting the interval lists of
  LA and LB.
• Joining the two interval lists (of length m and
  n) is a key step in our algorithm
• Use simple linear scan requires O(mn) time
• There are i different size i-1 subset of C
• which two to pick?

31
Algorithm B Candidate Generation

• Method 1
• Choose two lists with fewest no of intervals
• gtStore no of intervals for each sensor-set
• Method 2
• Choose two lists with smallest count (TLS)
• Intuitively shorter lifespan implies fewer
  intervals
• Easier to implement
• Have the lifespan when checking if the sensor-set
  is frequent

32
Experiments

• Data generation
• Stimulate data generated by a set of n binary
  sensors
• Make use of a standard market basket data
• With n sensors, each of which can be either on or
  off
• gt2n possible combination of sensor states
• Assign a probability to each of the combinations

33
Experiments Data Gen

• How to assign the probabilities?
• Let N be the no of occurrences of the transaction
  in the market basket that contains exactly only
  the sensors that are ON
• E.g. Consider RA,B,C,D,E,F
• Suppose we want to assign prob to the sensor
  state AC (only A and C are ON)
• N is no of transactions that contain exactly only
  A and C
• Assign prob N/D, where D is the size of the
  market basket dataset
• Note Need sufficiently large market basket data
• transactions that occur very infrequently will
  not be given ZERO probability

34
Experiments Data Gen

• Generating sensor set data
• Choose the initial state (at t0s)
• Randomly
• According to the probabilities assigned
• Pick the combination with highest probability
  assigned
• gt first sensor set states

35
Experiment Data Gen

• What is the next set of sensor-set states?
• For simplicity, in our model, only one sensor can
  be updated at a time
• For any two adjacent updates, the sensor-set
  states at the two time instants are differed by
  only one sensor
• gt change only one sensor state
• gt n possible combinations by toggling each of
  the n sensor states
• We normalize the probabilities of the n
  combinations by their sum
• Pick the next set of sensor-set states according
  to the normalized probabilities
• Inter-arrival time of updates exponential
  distribution

36
Experiments

• Market Basket Dataset
• 8,000,000 transactions
• 100 items
• number of maximal potentially large itemsets
  2000
• average transaction length 10
• average length of maximal large itemsets 4
• length of the maximal large itemsets 11
• minimum support 0.05
• length of the maximal large itemsets ?
• Algorithms
• Apriori cached mode
• IL-apriori
• (a) random-join (IL-apriori)
• (b) join-by-smallest lifespan (IL-apriori-S)
• (c) join-by-fewest-no-of-intervals (IL-apriori-C)

37
Experiments - Results

• Performance of algorithms (larger support)
• All IL-apriori algorithms outperform cache apriori

38
Experiments - Results

• Performance (lower support)
• More candidates gt IL-apriori Expensive to join
  interval lists

39
Experiments - Results

• More long frequent sensor-sets
• Apriori has to match the candidates by search
  through the DB
• IL-apriori-C and IL-apriori-S reduce a lot of
  time in joining the lists

40
Experiments - Results

• Amounts of memory usage - peak memory usage
• Cache apriori - store the whole database
• IL-apriori store a lot of interval lists when
  no of candidates is growing large

41
Experiments Results Experiments - Results
(min_sup 0.02)

• Apriori is faster in the first 3 passes
• Running time for IL-apriori drops sharply after
• Apriori has to scan over the whole database
• IL-apriori (C/S) needs to join relatively short
  interval-lists in later passes

42
Experiments - Results
(min_sup 0.02)

• Memory requirement for IL-apriori is a lot higher
  when there are more frequent sensor-set interval
  lists to join

43
Experiments - Results
(min_sup 0.05)

• Runtime for all algorithms increases linearly
  with total number of transactions

44
Experiments - Results
(min_sup 0.05)

• Memory required by all algorithms increases as no
  of transactions increases.
• Rate of increase in IL-apriori is faster

45
Conclusions

• Interval-list method to mine sensor data is
  described
• Two interval list joining strategies are quite
  effective in reducing running time
• Memory requirement is quite high
• Future Work
• Other methods for joining interval-lists
• Trade-off between time and space
• Extending to the streaming case
• Consider approaches other than Lossy Counting
  Algorithms (Manku, and R. Motwani, VLDB02)

46
QA
