Data Flow Daigrams DFDs

1

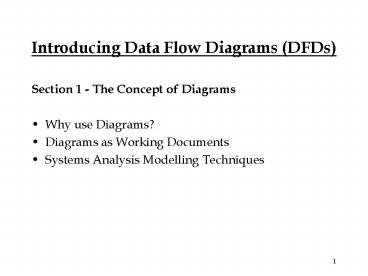

Introducing Data Flow Diagrams (DFDs)

• Section 1 - The Concept of Diagrams
• Why use Diagrams?
• Diagrams as Working Documents
• Systems Analysis Modelling Techniques

2
Why Use Diagrams?

• To help overcome the communication problem
  between users and developers.
• Use of natural language, written or spoken open
  to
• misinterpretation
• ambiguities
• omissions
• Diagrams
• help communication
• help understanding
• are unambiguous

3
Why Use Diagrams (Contd)
DEVELOPERS (have discussions with users etc)
? CREATE DIAGRAMS (to record
understanding) ?
AMEND DIAGRAMS (with further information)
? USE DIAGRAMS as the ? BASE OF
SYSTEM STRUCTURE
4
Diagrams as Working Documents

• Diagrams are working documents
• changes will occur (for correctness)
• changes must be documented and tracked
• Change is integral to the development process.

5
Systems Analysis - Modelling Techniques
(Examples)

• Data Flow Diagrams
• Entity Relationship Diagrams
• Normalisation
• Entity-Life Histories

6
Introducing Data Flow Diagrams (DFDs)

• Section 2 - Data Flow Diagrams (DFDs)
• Data Flow Diagramming
• DFD Notation
• DFD Levelling
• Guidelines for Drawing DFDs
• Connectivity Validation

7
Data Flow Diagramming

• Business users normally define their business
  operation in terms of the processes of that
  operation.

A process may be defined as an action or series
of actions which produce a change or development.

• The process view of a system may be modelled by a
  Data Flow Diagram (DFD).

8
Data Flow Diagramming (Contd)

• DFDs concentrate upon the data needed to support
  the information requirements of a system
• what data is needed
• the processes that convert it.
• Data flow diagrams provide
• the notion of structure
• static pieces of documentation
• communication tool
• DFDs are one of the most powerful and useful
  techniques available to the systems analyst.

9
DFD Notation

• A DFD has four key components.

External Entity
Process
Data Store
Data Flows
10
Processes

• Processes are the individual tasks which when
  completed in a certain sequence fulfil the
  overall goal of the system of which they are a
  part.

Sales Clerk
2
Validate Customer Order
Processes transform input into output.
11
Data Flows

• Data Flows depict the fact that some data in the
  form of documents, phone calls etc is moving.
• From an external entity to a process (or vice
  versa).
• From one process to another.
• From a process to a store (or vice versa).

invoice
address
12
Data Flows (Contd)
Write data to a file
Take data from a file
13
Data Flows (contd)

• Data flow names should be different if the form
  of their data elements changes on entry to and
  exit from a process.

14
Data Stores
D1
Stock

• Data Stores contain data which is needed by a
  process in order for it to be completed.
• These show data at rest within the system.
• They carry a description and are numbered D1, D2,
  D3 etc (computer data) or M1, M2, M3 etc (manual
  files).

15
External Entity
Customer

• External entities exist in the systems
  environment and either provide data to the system
  (sources) or receive data from the system
  (sinks).
• They are usually people, places, departments,
  organisations etc.

16
DFD Levelling

• DFDs allow the analyst to look at the system at
  different levels of detail.
• A business operation may contain many processes.
• The inclusion of all processes on a single
  diagram can
• make it look cluttered
• make it difficult to see exactly what a process
  does
• To overcome this it is usual to break down the
  diagram, a process known as levelling.

17
DFD Levelling
Context
Level 1
Level 2
1
2.1
External Entity
Sub-process
Process
2
2.2
Overall Process
Sub-process
Process
3
2.3
External Entity
Sub-process
Process
18
Context Diagrams (Overview or Level 0)

• Represent the system at a high level of detail.
• Comprised of
• One single process box for the entire system.
• External entities.
• The data flows that pass between the external
  entities and the system.

19
Context Diagrams (contd)

• Purpose
• to identify and examine the interfaces between
  the external entities and the system.

20
Example Context Diagram
Customer
order
Simple Order System
delivery_details
invoice
Customer
21
Level 1 Diagrams

• Show
• the system in more detail
• how data enters the system
• how these data items are transformed by the
  processes
• how they leave the system
• A Level 1 diagram must have the same number of
  inputs and outputs as its context diagram.
• The flows are connected to and from the actual
  processes which create, receive or change them.
• Processes are numbered 1, 2, 3 etc on a Level 1
  diagram.

22
Guidelines for Drawing a Context Diagram

• Read the case study a number of times.
• Try to list potential external entities.
• Establish what flows are sent to the system from
  the external entities.
• Establish what flows are sent from the system to
  the external entities.
• Draw the Context diagram.

23
Guidelines for Drawing a Level 1 Diagram

• Taking one sentence at a time try to identify
  potential processes (look for verbs).
• Identify and list the data flows.
• Identify and list the data stores.
• Draw the Level one diagram (using the correct
  notation).

24
Connectivity Validation

• Make sure the Level 1 diagram is fully connected.
• That is, a process must receive inputs from other
  processes or from data stores to be triggered.
• Check the Level 1 diagram against the context
  diagram for consistency
• flows across the boundaries must be the same
• names must be the same
