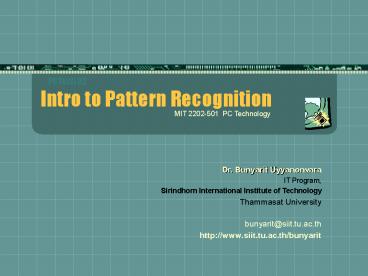

Intro to Pattern Recognition

1
Intro to Pattern Recognition
PCTech 02
MIT 2202-501  PC Technology
Dr. Bunyarit Uyyanonvara IT Program, Sirindhorn
International Institute of Technology Thammasat
University bunyarit_at_siit.tu.ac.th
http//www.siit.tu.ac.th/bunyarit
2
Decision Making Process

• Decision-making process of a human being are
  often related to the recognition of regularity
  (pattern).

• Human are good at looking for correlations and
  extracting of regularities based on them.

3
Artificial Intelligence - recap

• What is artificial intelligence (AI)?
• Russell Norvig gave possible definitions.
• 2,3 strong AI 1,4 weak AI

• Systems that act like humans.
• Systems that think like humans.
• Systems that think rationally.
• Systems that act rationally.

4
Intelligent Agents - recap

• Intelligent Agents Perception Reason
  Actuation
• (Input) (Execute) (Output)

Reason
5
Basic Terminology

• The most obvious example for Artificial
  intelligence is the Pattern Classification
  process.

6
Basic Terminology

• What is a pattern ?
• A pattern is essentially an arrangement or an
  ordering in which some organization of underlying
  structure can be said to exist.

7
Pattern Recognition
These patterns don't have to be pictures.
Just any pieces of information. You can
recall pieces of music from only a few notes of
the melody, think of words that rhyme with
Heart or name a politician who have a name
as a verb.
8
Basic Terminology

• A pattern can be represented by a vector composed
  of measured stimuli or attributes derived from
  measured stimuli and their interrelationship.

9
Example of Machine Perception

• Build a machine that can recognize patterns
• Speech recognition
• Fingerprint identification
• OCR (Optical Character Recognition)
• DNA sequence identification

10
An Example

• Sorting incoming Fish on a conveyor according to
  species using optical sensing
• Sea bass
• Species
• Salmon

11
(No Transcript)
12
Basic Terminology
13
Problem analysis

• Set up a camera and take some sample images to
  extract features
• Length
• Lightness
• Width
• Number and shape of fins
• Position of the mouth, etc
• This is the set of all suggested features to
  explore for use in our classifier!

14
Preprocessing

• Use a segmentation operation to isolate fishes
  from one another and from the background
• Information from a single fish is sent to a
  feature extractor whose purpose is to reduce the
  data by measuring certain features
• The features are passed to a classifier

15
Basic Terminology

• Preprocessing partitions the image into isolated
  objects (character)
• Feature extraction abstracts high level
  information about individual pattern to
  facilitate recognition
• The classifier is identifies the category to
  which the pattern belongs or, in general, the
  attributes associated with the given pattern
• Context processor increases recognition accuracy

16
Classification

• Select the length of the fish as a possible
  feature for discrimination

17
Length Graph
18
First Conclusion

• The length is a poor feature alone!
• Select the lightness as a possible feature.

19
Lightness Graph
20
Threshold decision boundary and cost relationship

• Move our decision boundary toward smaller values
  of lightness in order to minimize the cost
  (reduce the number of sea bass that are
  classified salmon!)
• Task of decision theory

21
Formulation

• Adopt the lightness and add the width of the fish
• Fish xT x1, x2

Lightness
Width
22
Width/Lightness Graph
23
Search for Boundary

• We might add other features that are not
  correlated with the ones we already have. A
  precaution should be taken not to reduce the
  performance by adding such noisy features

24
Search for Boundary

• Ideally, the best decision boundary should be the
  one which provides an optimal performance such as
  in the following figure

25
Classifier
26
Search for Boundary
27
Generalization

• However, our satisfaction is premature because
  the central aim of designing a classifier is to
  correctly classify novel input
• Issue of generalization!

28
More general Boundary
29
Boundary Selection
30
Boundary Selection
31
Cost of MisClassification

• The boundary are chosen in order to minimize the
  cost of misclassification.

32
Syntactic pattern recognition

• In application involving patterns that can be
  represented meaningfully, using vector notations
  the statistical pattern recognition approach is
  idea.

• However, in the patterns that are required
  various components of fundamental importance,
  relationship among them, are very difficult to be
  statistically represented.

33
Syntactic Pattern Recognition

• These are some examples,

• Scene analysis

• Language translation

• Finger print recognition

• Data mining

34
Syntactic pattern recognition

• That is the pattern is being viewed as being
  composed of subpatterns.

• These subpatterns may be composed of other
  subpatterns or they can be primitives.

35
Syntactic pattern recognition
36
Syntactic pattern recognition

• Each chromosome shown in the picture can be
  encoded as a string of qualifiers by tracking
  each structure boundary in a clockwise direction.

• The first cromosome abcbabdbabcbadbd

• The second cromosome

• ebabcbab

37
Syntactic pattern recognition

• A set of rules governing the syntax can be viewed
  as a grammar for the generation of a sentence
  (string) from a given symbols.

38
Syntactic pattern recognition
39
Quiz

• ???????? ??????? ? ?? ?? 4545 ??????????????? 4
  ??? ??? ? ? ?
  ?
• ??????? primitive subpatterns ???????????????????
  ??????????????? primitive ????????? ???
  ???????????????????? 4 ????????????????? string
  of primitives

40
Example Characters Recognition

• Many results for neural network based recognizers
  are reported in the literature. Results ranging
  from about 80 to high 90 have been reported.

41
Example Characters Recognition

• What level of recognition accuracy is good enough
  ?
• What level of reliability is good enough ?

• The questions are largely depend on context.

• For example, reliability measure is much more
  crucial to a banking system than it would be in
  PDA.

42
Example Characters Recognition

• Recognition accuracy rates in the low to mid 90
  range may sound good for PDA users,

• but it is considered high risk for Banking
  Identification system.

43
Process of Designing the Learning Machine
44
The System Design Cycle

• Data collection
• Feature Choice
• Model Choice
• Training
• Evaluation
• Computational Complexity

45
Pattern Recognition Systems

• Sensing
• Use of a transducer (camera or microphone)
• PR system depends of the bandwidth, the
  resolution sensitivity distortion of the
  transducer
• Segmentation and grouping
• Patterns should be well separated and should not
  overlap

46
Pattern Recognition Systems

• Feature extraction
• Discriminative features
• Invariant features with respect to translation,
  rotation and scale.

47
Pattern Recognition Systems

• Consider the problem of recognizing speech
  patterns. In this case the acoustic signals are a
  function of time.

48
Pattern Recognition Systems

• A pattern vector can be formed by sampling these
  functions at discrete time interval, t1, t2, t3,
  tn

• A feature vector for speech recognition might,
  for example, consist of the fist N fourier
  coefficients of the captured waveform.

49
Pattern Recognition

• Depends on the characteristics of the problem
  domain.
• Simple to extract,
• invariant to irrelevant transformation
• insensitive to noise.

50
Pattern Recognition Systems

• Classification
• Use a feature vector provided by a feature
  extractor to assign the object to a category

51
Pattern Recognition Systems

• Thus a pattern can be viewed as a point in either
  m-dimensional measurement space or the
  n-dimensional feature space

• Typically, feature spaces are chosen to be of
  lower dimensionality than the corresponding
  measurement space.

52
Pattern Recognition Systems

• Pattern recognition involves mapping a pattern
  correctly from the feature/measurement space into
  a class membership space.

Feature space
Class space
53
The System Design Cycle

• Model Choice
• Unsatisfied with the performance of our fish
  classifier and want to jump to another class of
  model

54
Statistical pattern recognition
55
The System Design Cycle

• Training
• Use data to determine the classifier. Many
  different procedures for training classifiers and
  choosing models

56

• Decision given the posterior probabilities
• X is an observation for which
• if P(?1 x) gt P(?2 x) True state of
  nature ?1
• if P(?1 x) lt P(?2 x) True state of
  nature ?2
• Therefore
• whenever we observe a particular x, the
  probability of error is
• P(error x) P(?1 x) if we decide ?2
• P(error x) P(?2 x) if we decide ?1

57

• Minimizing the probability of error
• Decide ?1 if P(?1 x) gt P(?2 x) otherwise
  decide ?2
• Therefore
• P(error x) min P(?1 x), P(?2 x)
• (Bayes
  decision)

58

• Overall risk
• R Sum of all R(?i x) for i 1,,a
• Minimizing R Minimizing R(?i x) for i
  1,, a
•

• for i 1,,a

Conditional risk
59

• Select the action ?i for which R(?i x) is
  minimum
• R is minimum and R in this case is
  called the Bayes risk best
  performance that can be achieved!

60
Pattern Recognition Systems

• The training phase begins with training data that
  are representative of the problem domain must be
  obtained

• The recognition engine is adjusted such that it
  maps feature vectors into categories with a
  minimum number of misclassifications.

61
Pattern Recognition

• In the second phase (prediction phase), the
  trained classifier assigns the unknown input
  pattern to one of the categories based on the
  extracted feature vector.

62
Pattern Recognition Systems

• Post Processing
• Exploit context input dependent information other
  than from the target pattern itself to improve
  performance

63
The System Design Cycle

• Evaluation
• Measure the error rate (or performance and
  switch from one set of features to another one

64
The System Design Cycle

• Computational Complexity
• What is the trade-off between computational ease
  and performance?
• (How an algorithm scales as a function of the
  number of features, patterns or categories?)

65
The System Design Cycle
66
Conclusion

• Reader seems to be overwhelmed by the number,
  complexity and magnitude of the sub-problems of
  Pattern Recognition
• Many of these sub-problems can indeed be solved
• Many fascinating unsolved problems still remain

67
Conclusion

• The problem of designing machines that can
  recognize patterns is highly diverse and unsolved
  problem depending on the nature of the problem.
