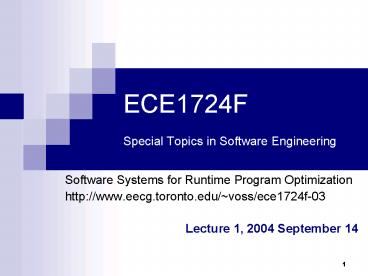

ECE1724F Special Topics in Software Engineering

1
ECE1724FSpecial Topics in Software Engineering

• Software Systems for Runtime Program Optimization
• http//www.eecg.toronto.edu/voss/ece1724f-03
• Lecture 1, 2004 September 14

2
Contact Information
Michael Voss Office EA310 (for now) Email
voss_at_eecg.toronto.edu Phone (416) 946
8031 Admin ???
Webpage www.eecg.toronto.edu/voss/ece1724f-04
3
Your Information

• Name
• Email Address
• Department, Degree Objective, and Year
• Registered/Auditing

4
Outline of the Course

• Introduction and Motivation
• A Compiler Primer / Refresher
• Empirical Optimization
• Dynamic Compilation
• Binary Translation
• JITs and VMs

5
Prerequisites

• A compiler course would be best
• Feel free to ask questions
• Overview, not details
• Computer architecture
• Reasonable programming skills
• Most tools are C/C
• Well talk about Java some
• A few tools are written in Java

6
Format of a Class Period

• The first 2 will be lecture only
• After that, a mix
• Part lecture
• Part paper presentation and discussion
• Why research papers
• No textbook is available
• Its good to read papers

7
Ill Post on the Web

• http//www.eecg.toronto.edu/voss/ece1724f-04

• Lecture Notes Student Presentation Slides
• Reading List, a guess is available now
• Assignments, 1st one in a week or two
• Research Project Ideas, soon
• You can also propose your own
• Any announcements
• It is your responsibility to check here

8
Grading

• 50 Project
• Proposal 5
• Final Report 40
• Final Presentation 5
• 20 Assignments
• 20 In-Class Presentation
• 10 Participation
• Quizzes only if necessary
• Mostly attendance (read the papers!)

9
Projects (50)

• Small Group (2-3) or Individual
• Topics
• Evaluate an existing tool
• Use an existing tool
• Modify an existing tool
• Create a new tool
• Study Applications
• Written proposal, final report presentation at
  mini-conference

10
Assignments (20)

• 2 Assignments
• Grading (out of 10)
• Meets expectations (works or almost works) -0
• Doesnt work but its close -1
• You did a lot of work but it doesnt work -2
• A feeble attempt or nothing turned in -7

11
Presentation (20)

• Format depends on enrollment
• Will be a paper from the reading list
• Probably 45-60 minutes (yes Im serious)
• Mixed with discussion
• You can see possible topics on the web site.
• You will sign up for a paper next week.

12
Participation (10)

• For a discussion class to work
• Show up for class
• Read the papers ahead of time
• Participate in discussions
• If people seem unprepared,
• Quizzes on the reading
• Please dont make me grade quizzes!

13
Software Systems for Runtime Program Optimization
14
What is Optimization?

• Are applications really optimized
• Do the best we can, or want to do
• 90 / 10 rule
• 90 of the benefit for 10 of the work
• The Dragon Book (Aho, Sethi and Ullman)
• preserve correctness
• on average improve performance
• are worth the effort

15
What Are We Optimizing For

• Speed
• ?????

Something thats important
16
Whats Important?

• Look at your applications
• Look at your machines
• Look at the bottlenecks
• Look at costs

17
Optimization is Used Loosely

• Converting from one ISA to another
• Transmeta
• DAISY
• FX!32
• Improving performance
• HP Dynamo (as good as really good static)
• because programmers are lazy (practical)
• Because of New Programming Models
• Java runs everywhere, just not very well
  anywhere

18
Technologies are Converging
19
How do you tune for this environment?

• If machine is known
• Compile-time (accurate) prediction is hard
• Why?
• Machine is no longer known
• Compatible but diverse systems
• Condor pools, Grid or Web computing
• ? Empirical optimization

20
Best Point in Optimization Space?
21
Conservative Assumptions
22
Example Loop Tiling
X

for i 1 to N do for k 1 to N do t
Ai,k for j 1 to N do Ci,j
Ci,j t Bk,j
j
k
i
23
Example Loop Tiling
X

for kk 1 to N by B do for jj 1 to N by B
do for i 1 to N do for k kk to
min(kkB-1,N) do t Ai,k for j
1 to min(jjB-1,N) do Ci,j
Ci,j t Bk,j
j
k
i
jj
kk
24
What Do You Need to Know?

• What did we assume?
• What happens if these assumptions dont hold
• What parameters are machine dependent?
• What parameters are input dependent?

25
Answer Runtime Optimization

• More knowledge is available
• Machine information is known
• Input data set information is known

DO I 1,N DO I 1,512 DO J 1,N DO J
1,512 DO K 1,N 70 faster DO
K 1,512 ?
ENDDO ENDDO
ENDDO ENDDO ENDDO ENDDO
26
How does this relax criteria?

• Must preserve correctness
• for (i0 iltn i) a a/b ? b0 1/b
•
  for (i0 iltn i) a ab0
• Must on average improve performance
• Relax conservative assumptions
• Must be worth the effort
• Is it hard to use?
• Is it hard to implement?

27
Everybodys Doing It

• Most commercial compilers (very limited)
• Transmetas Code Morphing
• HP Dynamo / HP-MIT DynamoRIO
• IBM DPCL
• IBM Jalapeno JVM
• Suns HotSpot Performance Engine
• .NET (Microsoft and Mono)
• Research groups

28
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
29
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
30
Optimize When Programming

• Pick best algorithm
• Program for the machine
• Multiple instead of divide
• Program for locality

do i 1, n for (i 0 i lt n
i) do j 1,n for (j 0 j
lt n j) a(j,i)
aij enddo enddo

i1,j1
i1,j2
i2,j1
i2,j2
31
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
32
Compiler Optimization

• Many well known techniques
• Common subexpression elimination
• Strength reduction
• Instruction scheduling
• Register allocation
• Locality optimizations
• Limited by machine and input knowledge

33
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
34
Link-time Optimization

• May have all objects available
• Can optimize across boundaries
• Software is becoming more modular
• Compiler does not see entire application
• Linker may see entire application
• Dynamic Link Libraries (DLLs)?
• Not mainstream!!

35
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
36
Load-Time Optimization

• DLLs may now be available
• Can optimize entire application
• Machine information is available
• Can load DLLs during execution
• Now you see impact in runtime
• User sees load time
• Slowing down the critical path
• Not mainstream!!

37
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
38
Runtime Optimization

• Entire application is available
• Machine information is available
• Input data set is available
• Adds overhead to critical path
• This is what the class is about
• Of great interest to many people!

39
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
40
Feedback-Directed Compilation

• Most commercial compilers support it
• Find hotspots to direct optimization
• Help to direct inlining
• No guarantee that behavior repeats
• Definitely cannot do something unsafe
• Must find representative input

41
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
42
Feedback-Directed Modification

• User changes the source
• Find bottlenecks
• change algorithm
• back-off of good practice
• The user can always do more
• knows the programs intent
• Always has been, always will be

43
Traditional Optimization Process
High-Level Language
Modify
Intermediate Language
Compile
Machine Code
Link
Load
Execute
44
Runtime Program Optimization
Optimization Modification of a programs
behavior that has no perceptible effect on the
output.
Runtime At least part of the optimization
decision making occurs during program execution.
45
Runtime Optimization

• Pros
• Input data set knowledge
• Machine parameter knowledge
• More of the program available
• Cons
• Optimization is seen in the critical path
• Can perturb runtime, memory use
• Must amortize these costs

46
How much is done at runtime
Power
Overhead
of decisions made at runtime
47
What is the overhead?

• Extra instructions
• Changes in cache and memory use
• More complex, less optimizable code
• May still use a traditional compiler
• Bad decisions

48
Simplest Approaches

• Static Multiversioning
• Most compilers do this
• If-else or switch statement that selects
• Pros / Cons?

if N gt Threshold DOALL I 1, N else DO
I 1,N
49

• Parameterization
• Not uncommon with compilers
• Use a variable to change behavior
• Read or set variable based on environment
• Tile size for Tiling
• Pros / Cons?

50
Example Loop Tiling
X

for i 1 to N do for k 1 to N do t
Ai,k for j 1 to N do Ci,j
Ci,j t Bk,j
j
k
i
51
Example Loop Tiling
X

for kk 1 to N by B do for jj 1 to N by B
do for i 1 to N do for k kk to
min(kkB-1,N) do t Ai,k for j
1 to min(jjB-1,N) do Ci,j
Ci,j t Bk,j
j
k
i
jj
kk
52
Inspector-Executor Models

• Run an inspector loop to see if a technique
  should be applied
• Then run the executor loop using this decision
• Scheduling for parallel computation is a common
  example, runtime ddtest
• Research compilers
• Joel Saltz (UMD)
• Lawrence Rauchwerger (TAM), not really IE model
• Pros / Cons?

53
Using Performance Feedback

• Run 2 or more versions of a piece of code
• Select the one that shows best performance
• fastest
• least cache misses
• Research compilers
• ATLAS (Whaley )
• Dynamic Feedback (Rinard )
• ADAPT (Voss )
• Pros / Cons?

54
Big Pros and Big Cons

• Pros
• Dont need to model
• Captures entire system behavior
• Cons
• Are comparisons valid?
• How do you debug?
• Is it necessary?

55
Dynamic Compilation

• Generate new code at runtime
• Generally requires two stages
• anaylsis at compile-time
• application at runtime with staged compilers
• Several research groups
• DyC (UW)
• Tempo (INRIA)
• C / Vcode (MIT)
• Pros / Cons?

FUNC_PTR fp gen_sub1(N) fp()
56
Dynamic Compilation Pros/Cons

• Pros
• Generated new code, anything possible
• Cons
• Compiler in the critical path!!!!
• How do you access the new code.
• Must do quick optimization

57
Binary Translation

• Make changes directly to the executable
• no source code needed
• Used for 2 main purposes
• to improve performance
• to run non-native code
• Many companies interested
• HP Dynamo
• Compaq FX!32
• IBM Daisy

58
Binary Translation Pros Cons

• Pros
• no need for source code !!! great !!!
• can work on instruction traces
• Cons
• In the critical path
• Might use interpretation
• Quick optimizations
• Instruction cache is not a data cache

59
Java the traditional way
javac
interpret
60
Just-in-Time Compilers
Do we need to do this for every .class
file? Every class in a .java file? Every method
in a class? Every instruction in the method?
javac
JIT
execute
61
JITs and VMs

• Move from interpreted to native code
• even bad native code is faster
• removes a software layer
• Move from bad native to good native
• Some do complicated things
• overlap compilation with execution
• only optimize HotSpots
• monitor and recompile if things change
• pick weird shapes for compilation units

62
Next Week A Quick and Dirty Overview of Compiler
Optimization
