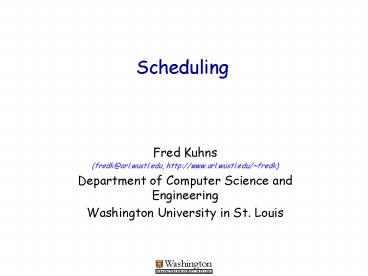

Scheduling

• Fred Kuhns
• (fredk_at_arl.wustl.edu, http//www.arl.wustl.edu/fr
  edk)
• Department of Computer Science and Engineering
• Washington University in St. Louis

2
CPU Scheduling

• Multiprogrammed Operating System maximize
  utilization by switching the CPU between
  competing processes.
• goal is to always have some process running
• one process runs until it must wait for some
  event (for example an I/O operation)
• rather than remaining idle the OS removes the
  waiting process from the CPU and inserts another
  ready process onto the CPU
• Overview of scheduling module
• Basic Concepts burst cycle, scheduler,
  preemption, dispatcher
• Scheduling Criteria
• Scheduling Algorithms
• Scheduling Issues, Implementations and Mechanisms

3
Burst Cycle

• CPUI/O Burst Cycle Process execution consists
  of a cycle of CPU execution and I/O wait.
• process begins with a CPU burst then waits for an
  I/O operation. When the I/O completes the process
  will run fora period of time then wait again for
  another I/O operation. This cycle repeats ending
  with a final CPU burst which ends with the
  process voluntarily terminating.
• CPU burst distribution generally consists of
  many short CPU bursts and few longer bursts.

4
Scheduling

• Short-term scheduler
• Selects next process to run from among the Ready
  processes in memory (i.e. the Ready Queue)
• Ready queue may be implemented as a FIFO queue,
  priority queue, tree or random list.
• CPU scheduling decisions occur when process
• 1. Switches from running to waiting state.
• 2. Switches from running to ready state.
• 3. Switches from waiting to ready.
• Terminates.
• Process (or thread) Preemption
• Scheduling under 1 and 4 is nonpreemptive.
• 2 and 3 preemptive.
• With non-preemptive when a process get the CPU it
  keeps running until it either terminates or
  voluntarily gives up the CPU
• With Preemptive schemes the OS may force a
  process to give up the CPU

5
Dispatcher

• Dispatcher module gives control of the CPU to the
  process selected by the short-term scheduler
  this involves
• switching context
• switching to user mode
• jumping to the proper location in the user
  program to restart that program
• Dispatch latency time it takes for the
  dispatcher to stop one process and start another
  running.

6
Scheduling Criteria

• CPU utilization Percent time CPU busy
• Throughput of processes that complete their
  execution per time unit
• Turnaround time time to execute a process from
  start to completion. sum of
• waiting to be loaded into memory,
• waiting in ready queue,
• executing
• Blocked waiting for an event, for example waiting
  for I/O
• Waiting time time in Ready queue, directly
  impacted by scheduling algorithm
• Response time time from submission of request
  to production of first response.

7
Optimization Criteria

• General goals
• Max CPU utilization
• Max throughput
• Min turnaround time
• Min waiting time
• Min response time
• May target average times or choose to place
  bounds on maximum or minimum values.
• May also choose to minimize variance in these
  times.

8
Scheduling Algorithms

• FIFO (or FCFS)
• Easily implemented
• Average waiting time may be long with this policy
• Convoy effect or head-of-line blocking short
  process behind long process many I/O bound
  processes behind CPU-bound process results in
  inefficient use of I/O resources
• Shortest-Job-First (SJF)
• optimal in that it provides the minimum average
  waiting time for a given set of processes
• can use exponential averaging to estimate next
  burst size
• non-preemptive and preemptive versions
• Priority-based
• preemptive or non-preemptive
• static or dynamic priorities
• problem Starvation. Solution Aging.
• Round-robin
• time-sharing, define quantum, bounded wait times
  (n-1)/q
• large q gt FCFS, small q gt dedicated processor
  of speed F/n (processor sharing)
• Multilevel Queue
• ready queue partitioned into bands or priorities
• Multilevel feedback queue
• use feedback to move process between queues

9
Policy versus Mechanism

• Policies set rules for determining when to switch
  and which process/thread to run next
• Mechanisms are used to implement the desired
  policy. They consists of the data structures and
  algorithms used to implement policy
• Policy and Mechanisms
• influenced by platform - for example, context
  switch cost
• balance needs of different application types
  Interactive, Batch and Real-Time

10
Consider Three Basic Policies

• First-In First-Out (FIFO)
• runs to completion
• Round Robin (RR)
• runs for a specified time quantum
• Time-Sharing (TS)
• Multilevel feedback queues

11
Platform Issues

• Interrupt latency
• Clock resolution
• Cost of a context switch
• saving processor state and loading new
• instruction and data cache misses/flushes
• memory map cache (TLB)
• FPU state

12
Typical Scheduler Goals

• Interactive examples are shells and GUI.
• Spend most of their time waiting for I/O.
• Minimize perceived delay (50-150msec)
• Batch
• compiles long running computations.
• Optimize throughput can tolerate large
  scheduling latencies but want to maximize the
  number of jobs completed over some given time
  interval.
• Real-time
• Require predictable behavior.
• May require guarantees on throughput, latency or
  delay
• real-time does not equal fast, it implies
  temporal constraints.

13
Periodic Execution of OS Clock Interrupts

• Common requirement is for a system to track the
  passage of time
• processes request timed event notifications
• time-sharing of resources
• periodic system housekeeping
• Implemented using a hardware clock interrupt
• generally set to a periodic rate (clock tick),
  typically 10msec, see tick frequency defined by
  HZ in param.h
• however may use a random timeout interval or
  synchronize to some other external event.
• High priority, only NMI (non-maskable interrupt)
  are higher.

14
Interrupt Latency

• time to recognize interrupt and execute first
  instruction of ISR
• hardware CPU finish current instruction,
  acknowledge interrupt over bus
• software dispatch interrupt to correct ISR
• plus time to run ISR
• affected by interrupt nesting
• plus worst-case interrupt disable time

15
Clock Interrupt Handler

• Update CPU usage for current process
• scheduler functions - priority computation,
  time-slice expiration (major/minor ticks)
• quota policing
• update time-of-day and other clocks
• callout queue processing
• process alarms
• run system processes

16
Callout queue

• Queue of functions to be processed at a
  particular tick
• System context, base interrupt priority (sw int)
• Example
• packet retransmission, system management
  functions, device monitoring and polling
• for real-time systems insertion time is important
• Typical to optimize lookup time not insertion
  time
• time-to-fire,
• absolute time,
• timing wheel (fixed size circular array)

17
Alarms

• BSD alarm(), setitimer()
• SVR4 alarm(), hrtsys()
• Real-time - actual elapsed time
• sends SIGALRM
• profiling - execution time
• sends SIGPROF
• virtual time - user mode time
• sends SIGVTALRM

18
BSD Scheduler

• Policy - Multilevel Feedback queues
• Policy Goal - good response time for interactive
  tasks while guaranteeing batch job progress
• How achieve
• leverage priority-based scheduler by adjusting
  priorities in response to I/O events
• Preemptive time-slicing (time quantum), usage
  based priority assignment
• Mechanisms
• Priority-based always run highest priority
  process
• Dynamically adjustable process priorities
• Clock interrupt to vary priorities

19
4.4 BSD Process Scheduling

• Scheduling priority range, hi to lo 0 - 127
• 0-49 kernel mode
• 50-127 user mode
• 32 run queues (prio/4 run queue)
• Priority adjusted based on resource usage.
• Time quantum set to 0.1 second for over 20 years.
• Sleep priorities

20
Scheduling Related Attributes
Predefined Process Priorities
PROC structure
PSWP 0 while swapping process PVM
4 wait for memory PINOD 8 wait for
file control info PRIBIO 16 wait on disk
I/O PVFS 20 wait for kernel-level FS
lock PZERO 22 baseline priority PSOCK
24 wait on socket PWAIT 32 wait for child to
exit PLOCK 36 wait for user-level FS
lock PPAUSE 40 wait for signal to
arrive PUSER 50 base user priority
p_priority (kernel pri)
p_usrpri (user pri)
p_estcpu
p_slptime
...
21
Calculation of Priority

• Proc structure
• p_estcpu - estimate of cpu utilization
• p_nice - user-settable (-20 to 19, default 0)
• priority (p_usrpri) recalculated every 4 clock
  ticks
• p_estcpu incremented each clock tick process is
  running
• every second CPU usage is decayed
• sleeping processes are ignored

22
BSD Formulas

• Priority calculation (PUSER 50)
• p_usrpri PUSER (p_estcpu/4) 2 ? p_nice
• p_estcpu 1 // each clock tick process is
  running
• Decay calculation - schedcpu () each second
• p_estcpu((2load_avg)/(2load_avg1))p_estcpup_
  nice
• ex, load1, p_estcpu 0.66T4 0.13T0
• Processes sleeping for gt 1 second
• p_slptime set to 0 then incremented by 1 ea.
  second
• p_estcpu p_estcpu((2load)/(2load1))p_slptime

23
Context switch on 4.4 BSD

• Synchronous vs. asynchronous
• Interprocess voluntary vs. involuntary
• voluntary - process blocks because it requires an
  unavailable resource. sleep ()
• involuntary - time slice expires or higher
  priority process runnable. mi_switch ()

24
BSD - Voluntary Context Switch

• Invoke sleep() with a wait channel (resource
  address) and (kernel) priority
• sleeping process organized as an array of queues.
  Wait channel is hashed to find bin.
• sleep() raises priority level splhigh (block
  interrupts). Set kernel priority (p_priority)
• wakeup() remove process(es) from queue splhigh
  and recalculate user priority (p_usrpri).

25
BSD - Involuntary context switch

• Results from an asynchronous event
• kernel schedules an AST, need_resched (), and
  sets global flag want_resched
• current proc checks this flag before returning to

• user mode. If set, then call mi_switch ()
• Note BSD does not preempt process in kernel mode.

26
BSD Interprocess Context Switch

• Change user and kernel context
• All user mode state located in
• kernel-mode HW state - stored in PCB (u area)
• user-mode HW state - kernel stack (u area)
• proc structure (not swapped)
• kernel changes the current process pointers and
  loads new state.

27
Selecting a process to run

• cpu_switch (), called by mi_switch ()
• block interrupts and check whichqs for nonempty
  run queue. If non, unblock interrupts and loop.
• Remove first process in queue. If queue is not
  empty then reset bit in whichqs
• clear curproc and want_resched
• set new process (context switch) and unblock
  interrupts

28
Limitations of the BSD Model

• Limited scalability
• No resource guarantees
• non-deterministic, unbounded delays (priority
  inversion)
• limited application control over priorities

29
Scheduler Implementations

• SVR4
• Solaris
• Mach
• Digital UNIX
• Other RT

30
SVR4 Scheduler

• Redesigned from traditional approach
• Separate policy from implementation
• Define scheduling classes
• define framework with well defined interfaces
• Attempt to bound dispatch latencies
• Enhance application control

31
SVR4 Scheduling Classes

• Scheduler represents an abstract base class
• defines interface
• performs class independent processing
• Derived classes are specific implementations of a
  scheduling policy
• priority computation, range of priorities,
  whether quantums are used or if priorities can
  vary dynamically.

32
SVR4 - Issues Addressed

• Dispatch Latencies - time between a process
  becoming runnable and when it executes.
• Does not include interrupt processing. Includes
  nonpreemptive kernel processing and context
  switch time.
• Kernel preemption points - PREMPT checks kprunrun
  at well defined points in the kernel
• runrun also used as in traditional
  implementations
• Response time - total time from event to
  application response.

33
SVR4 - Class-Independent

• Responsible for
• context switching, run queue management and
  preemption.
• Highest (global) priority always runs
• priority range 0 - 160, each with own queue
• Default allocations
• real-time 100-159,
• system 60-99,
• timesharing 0-59

34
SVR4 - Scheduler Interface
CL_TICK CL_FORK, CL_FORKRET CL_ENTERCLASS,
CL_EXITCLASS CL_SLEEP, CL_WAKEUP CL_PREEMPT
CL_YIELD CL_SETRUN
...
35
SVR4 Class Implementations

• Time-Sharing event driven scheduling.
• priority changed dynamically, round-robin within
  priority, time-slice and priority static
  parameter table.
• System - fixed priority (FIFO). System tasks.
• Real-time fixed priority and time quantum.

36
Solaris Overview

• Multithreaded, Symmetric Multi-Processing
• Preemptive kernel - protected data structures
• Interrupts handled using threads
• MP Support - per cpu dispatch queues, one global
  kernel preempt queue.
• System Threads
• Priority Inheritance
• Turnstiles rather than wait queues

37
Hidden Scheduling

• Hidden Scheduling - kernel performs work
  asynchronously on behalf of threads, without
  considering priority of requester
• Examples STREAMS process and callout queue
• Solaris addresses by using system threads
• run at kernel priority which is lower than the RT
  class.
• Callout processing is also a problem. Solaris
  uses two different callout queues real-time and
  non-real-time (callout thread).

38
Priority Inversion

• Low priority thread holds a resource required by
  a higher priority thread.
• Partial solution - Priority Inheritance.
• High priority thread lends its priority to the
  lower priority thread.
• Must be transitive
• kernel keeps a synchronization chain

39
Priority Inheritance in Solaris

• Each thread has a global and inherited priority.
• Object must keep a reference to the owner
• If requester priority gt owner, then owner
  priority raised to that of the requesters
• This works with Mutexes, owner always known
• Not used for semaphores or condition variables
• For reader/writer,
• owner of record inherits priority, only partial
  solution

40
MACH

• Inherited base scheduling priority which is
  combined with a CPU usage factor
• CPU usage factor decayed 5/8 each second inactive
• threads set own priority after waking up.
• Clock handler charges current thread.
• Every 2 seconds, system thread scans run queue
  and recomputes priorities (addresses starvation)
• Fixed quantums, preemptive scheduling
• handoff scheduling - used by IPC

41
MACH MP Support

• No cross processor interrupts
• processor sets
• thread runs on any of the processors from the
  assigned set.
• Processor allocation can be handled by a
  user-level server
• Gang scheduling
• dedicate one processor per thread.
• Minimize barrier synchronization delay

42
Digital UNIX

• Time-sharing and real-time classes SCHED_OTHER,
  SCHED_FIFO, SCHED_RR,
• Highest priority process is always run
• Priority range 0-60 (0-29 TS, 20-31 SYS, 32-63
  RT)
• nonpreemptive kernel
• no control for priority inversion

43
Digital UNIX - MP

• Per processor dispatch queues
• Scheduler will move threads between queues to
  balance load
• soft affinity
