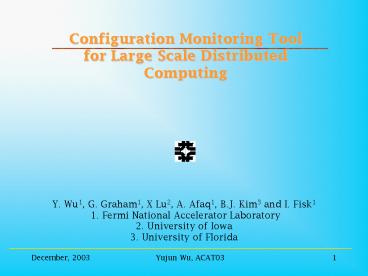

Configuration Monitoring Tool for Large Scale Distributed Computing

1

Configuration Monitoring Tool for Large Scale
Distributed Computing
Y. Wu1, G. Graham1, X Lu2, A. Afaq1, B.J. Kim3
and I. Fisk1 1. Fermi National Accelerator
Laboratory 2. University of Iowa 3. University of
Florida
2
Outline

• Introduction to the CMS computing
• Why a configuration monitoring tool
• Design consideration and approach
• Configuration monitoring tool architecture and
  components
• Current status of the configuration monitoring
  tool
• Future development plan and summary

3
Introduction to the CMS computing

• CMS (Compact Muon Solenoid) experiment, which
  will run at the Large Hadron Collider (LHC), is
  expected to have the following features in its
  computing
• - Will have petabytes of data
• - Need very large scale distributed computing
  systems to analyze the data
• - Grid computing will likely be used to achieve
  much of its offline data analysis needs
• - The computing systems utilized in the CMS data
  analysis will be heterogeneous and dynamic

4
CMS Data Grid Hierarchy
1 TIPS 25,000 SpecInt95 PC (2000) 20 SpecInt95
PBytes/sec
Online System
100 MBytes/sec
Tier 01
Bunch crossing per 25 nsecs.100 triggers per
secondEvent is 1 MByte in size
0.6-2.5 Gbits/sec
or Air Freight
Tier 1
FNAL Regional Center
France Regional Center
Italy Regional Center
UK Regional Center
2.4 Gbits/sec
Tier 2
622 Mbits/sec
Tier 3
Physicists work on analysis channels. Each
institute has 10 physicists working on one or
more channels Data for these channels should be
cached by the institute server
Institute
Institute
Institute
Institute
Physics data cache
100 - 1000 Mbits/sec
Tier 4
5
Why A Configuration Monitoring Tool?

• To meet the CMS distributed computing challenges,
  we find we need to have a monitoring system to
  track and query site configuration information
  for large-scale distributed CMS applications
• A few selected use cases
• - Job generators, e.g. MOP, need to know
  a list of configurations on a computer resource
  (e.g., CMS software location, scratch area, etc.)
  for generating and submitting jobs
• - A general user need to know what kind of
  services are available within an organization
  (e.g., USCMS) and their corresponding
  configurations, e.g., gatekeeper port number and
  available job managers
• - Users also want to know the services
  status critical services need to be available
  even before job submission

6
Design Consideration and Approach

• The goal of a configuration monitoring system is
  to fit the needs of CMS production and user
  analysis across the US CMS resources
• The following features are desirable (based on a
  user survey)
• - The information in the configuration
  monitoring system should be highly available
• - The history configuration information
  should be archived and retrievable
• - The configuration information should
  only be available for authorized users and/or
  groups
• Utilize as much existing tools as possible

7
Design Consideration and Approach (2)

• Globus Toolkit and Tomcat servlet container are
  chosen as the building blocks for the
  configuration monitoring tool
• A relational database server is used to store the
  configuration information. This has the advantage
  to log the info for future queries
• The Grid Security Infrastruction (GSI), together
  with the EDG Java Security package, is used for
  secure authentication and transparent access to
  the configuration information across the USCMS
  grid

8
Design Consideration and Approach (3)

• A layered structure is used to develop the whole
  system. It has the advantage to replace a layer
  without interfering other layers. Tentatively,
  the system is divided into the following layers
• Site info provider layer
• - The module in this layer is distributed
  at each computing resource. It collects and
  publishes resource configuration info.
• Configuration Database Server layer
• - It tracks the hosts and services to be
  monitored, and stores all the collected
  configuration info.
• Tomcat service layer
• - Through Tomcat, a user can view the info
  through a web browser and/or query the info in
  the database through web service
• User Interface
• - They are here for the convenience of
  users

9
A Protype Architecture
Tomcat Server
query
VOMS
query
Configuration Database Server (MySQL)
Site Info Provider
Site Info Provider
Site Info Provider
10
Site Information Provider Layer

• This layer is responsible for collecting and
  publishing site configuration information at each
  resource. It accomplishes the task through
  Globus MDS with our own information provider and
  the standard GLUE schema (Grid Laboratory Uniform
  Environment)
• The information provider can publish the
  information from the following source
• - Configuration information in a text
  file
• - Output from a user command
• - Special scripts can also be written as
  plug-ins for other configuration generations
• The published resource configuration info in MDS
  can be queried directly using standard Globus
  commands or through a set of client scripts
  provided by the configuration monitoring tool.

11
Configuration Database Server Layer

• The database server layer consists of a
  relational database server and cron job scripts
  to track and update the information in the
  database. It is the core component of the whole
  configuration monitoring architecture
• - Provides a mechanism on controlling
  hosts and services to be monitored
• - Tracks the availability of the services
  within a Virtual Organization (VO) --- some
  services are supposed to be available all the
  time
• - Archives the collected configuration
  information for later use
• Currently, we are using MySQL as the relational
  database server. It is an open source product. It
  can fit our current need when the number of hosts
  and services to be monitored is relatively small.


12
Configuration Database Server Layer (2)

• The configuration information in the database are
  collected through site information providers and
  get updated at a scheduled interval using the
  cron job scripts
• The old configuration information are archived
  and only updated in the database when there is a
  change in a resource configuration. In another
  word No change in information, no update!

13
Tomcat Service Layer

• Tomcat plays an important role in our
  configuration monitoring system.
• Tomcat servlet technology is used to provide a
  web interface for users to accomplish the
  following tasks
• - Browse the available hosts
• - Browse the available services, and its
  configurations
• - Make a specific query on the host and/or
  service
• And the same technology is used for authorizing a
  person to perform the administration tasks
  securely
• - Update the resources/services to be
  monitored
• - Reset the availability of services

14
Tomcat Service Layer (2)

• In the future, we plan to provide web service
  through Tomcat for both users and administrators
• - Users may query the information in the
  configuration database through command-line
  scripts. This will include the available
  resources, services, and their configuration info
  in the central database (or databases). Still, if
  a user wants the newest information, he/she has
  to retrieve those information directly from a
  local info provider.
• - Administrators can update their site
  information through the web service mechanism,
  e.g., when a service must be shut down
  immediately.

15
Web Interface Screenshot (1)
16
Web Interface Screenshot (2)
17
Web Interface Screenshot (3)
18
Security features of the Configuration Monitoring
System

• Keeping the configuration information only
  accessible by authorized users is always one of
  our top priorities
• As the site info provider is part of the Globus
  MDS, it has the same security mechanism as the
  standard Globus toolkit
• The web interface enforces strong authentication
  and authorization using the digital certificates.
  This requires a client web browser to be able to
• - manage client certificates
• - perform SSL mutual authentication

19
Security features of the Configuration Monitoring
System (2)

• On the server side, all the web pages and
  servlets are put behind an authorization servlet
  filter----currently, we are using a filter
  package developed by EDG.
• The authorization filter examines every incoming
  request and tries to extract the client
  certificate from the request. It then passes the
  extracted client DN to an authorization manager
  for verification. If the authorization manager
  can verify the client DN, it gives permission for
  the user to view the web info otherwise, it just
  termites the request and informs the user
  authorisation failed.
• Currently, the authorization manager is
  configured to examine a standard grid-mapfile to
  see if a request user DN can be found in the
  grid-mapfile.
• Furthermore, the user DN entries in the
  grid-mapfile is extracted from a VOMS (Virtual
  Organization Membership Service) server

20
Security features of the Configuration Monitoring
System (3)
User Request (DN, etc)


Tomcat
Authorization Manager
Servlet filter
Authorized?
Grid-mapfile
Configuration Info (.html, .jsp, servlets)
VOMS
21
The Current Status of Configuration Monitoring
Tool

• We have finished the initial development on major
  components of the configuration monitoring tool
  and tested it using USCMS grid resources
• The information provided by configuration
  monitoring tool has been used in the USCMS
  distributed Monte Carlo production---its first
  customer (detail next page)
• Other applications, such as GridServ under
  development at University of Florida, also show
  interest in using the info published by the
  Configuration Monitoring tool.
• - More info on this can be found at
• https//gdsuf.phys.ufl.edu8443/gridmon/ad
  min/gridserv/dpeclient

22
The Current Status of Configuration Monitoring
Tool (2)

• MOP is a system for distributing CMS production
  jobs over the distributed grid environment.
  Currently, it is the main production system used
  in the USCMS grid testbeds.
• In order to generate and submit MOP jobs, the MOP
  job submitter need to know a set of parameters at
  each remote site intended to run jobs
• MOP_MAX_JOBS100MOP_REMOTE_JOB_MANAGER_
  FOR_RUNgarlic.hep.wisc.edu/jobmanagerMOP_REMOTE
  _JOB_MANAGER_FOR_STAGE_INgarlic.hep.wisc.edu/job
  managerMOP_REMOTE_JOB_MANAGER_FOR_STAGE_OUTgarli
  c.hep.wisc.edu/jobmanagerMOP_REMOTE_JOB_MANAGER_
  FOR_PUBLISHgarlic.hep.wisc.edu/jobmanagerMOP_RE
  MOTE_JOB_MANAGER_FOR_CLEANUPgarlic.hep.wisc.edu/
  jobmanagerMOP_REMOTE_RUNTIME_AREA/afs/hep.wisc.e
  du/grid3/shared-tmpMOP_EXPORT_DIR/afs/hep.wisc.e
  du/grid3/shared-tmpMOP_REMOTE_VDT_LOCATION/data/
  grid/GRID3/MOP_REMOTE_DAR_ROOT/afs/hep.wisc.edu/
  grid3/app/uscms01

23
The Current Status of Configuration Monitoring
Tool (3)

• Before Using Configuration Monitoring Tool
• - Remote system administrators had to mail
  this information to the person who generated MOP
  jobs. He/she would put these info into a
  configuration file.
• - It was a model very prone to failure If
  there was a change in the site configuration,
  there is a potential of job failure even before
  submitting the jobs---sometime a system
  administrator forgot to mail this info or a MOP
  user forgot to check the e-mail to modify the
  submitter side file.
• After using the tool
• - The site system administrator just
  need modify a local copy of the configuration
  file. The configuration monitoring tool will take
  care of the rest.

24
Future development

• We think further developments are needed in the
  following areas
• Need to provide web services to query the info
  from the database and/or to update the info in
  the database through Tomcat
• More resource configuration information need to
  be collected from other monitoring tools, like
  MonaLisa, Ganglia, etc.
• Provide a web interface to view history data
• - They are now archived in the database
  with timestamp. We need to have an interface to
  view those info.

25
Summary

• A configuration monitoring tool has been
  developed on top of the Globus technology and web
  service to allow users/sites to publish the site
  configuration info, archive the collected info
  and query them
• The Grid Security Infrastructure, together with
  EDG Java Security packages, are used for secure
  authentication and transparent access to the
  configuration information across the USCMS grid
• The configuration monitoring tool has been
  installed on the USCMS Grid testbeds and tested
  in the USCMS grid production jobs
• Further improvements have been identified and
  will be available in the near future
