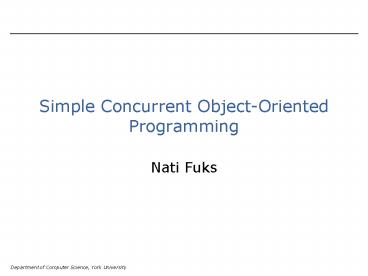

Title: Simple Concurrent Object-Oriented Programming


1
Simple Concurrent Object-Oriented Programming
  • Nati Fuks

2
SCOOP Outline
  • SCOOP Introduction
  • Generator
  • SCOOP vs Java
  • PRODUCER-CONSUMER example
  • SCOOP Semantics
  • Mapping from SCOOP to EiffelTHREADs

3
Concurrency
  • Concurrent programming is difficult
  • e.g. Java Memory Flaw circa 1999
  • A variety of mechanisms must be mastered
  • Thread class, synchronize, wait, notify, mutexes,
    monitor, critical regions
  • Problems such as deadlock, safety and liveness
    properties, inheritance anomaly

4
SCOOP
A single new keyword (separate) provides for a
full-fledged concurrency mechanism !!!
5
SCOOP
SCOOP Simple Concurrent Object-Oriented
Programming. Defined by Bertrand Meyer in OOSC in
1997
Implementations
  1. Compton. Changes in the open source SmallEiffel
    compiler
  • 2. This work
  • 3. SCOOP in the .NET framework

6
SCOOP Generator
  • Why SCOOP Generator?

Object-Oriented Design
Design By Contract
  • Simple and intuitive concurrency model of SCOOP
  • What do we achieve?
  • Concurrent programs using SCOOP

7
SCOOP Generator
  • Eiffel SCOOP -gt Eiffel THREAD
  • Standard Eiffel code (mutexes and THREADs)
  • Eiffel Studio 5.4

Advantages
  • Pure Eiffel
  • Independence
  • Target code is cross-platform

Disadvantage Debugging on a target code
8
Producer-Consumer Java Solution
9
Producer-Consumer SCOOP Solution
  • - same behaviour as the Java solution

- only one extra keyword separate is used ()
- uses contracts with all the benefits of DbC
10
ROOT_CLASS
  • class ROOT_CLASS creation
  • make
  • feature
  • b separate BUFFER
  • p PRODUCER -- declared separate
  • c CONSUMER -- declared separate
  • make is
  • -- Creation procedure.
  • do
  • create b.make
  • create p.make(b)
  • create c.make(b)
  • end
  • end

11
Bounded BUFFER
  • class BUFFER creation
  • make
  • feature
  • put (xINTEGER) is
  • require count lt 3
  • do q.put(x)
  • ensure count old count 1 and q.has (x)
  • end
  • remove is
  • require count gt 0
  • do q.remove
  • ensure count old count - 1
  • end

12
PRODUCER
  • separate class PRODUCER creation
  • make
  • feature
  • buffer separate BUFFER
  • make (b separate BUFFER) is do keep_producing
    end
  • keep_producing is do produce(buffer,i) end
  • produce (b separate BUFFER iINTEGER) is
  • require b.count lt 2
  • do b.put(i)
  • ensure b.has(i)
  • end
  • end

13
CONSUMER
  • separate class CONSUMER creation
  • make
  • feature
  • buffer separate BUFFER
  • make (b separate BUFFER) is do keep_consuming
    end
  • keep_consuming is do consume(buffer) end
  • consume (b separate BUFFER) is
  • require b.count gt 0
  • do b.remove
  • ensure b.count old b.count - 1
  • end
  • end

14
Synchronization in SCOOP
  • A call to the routine produce with a separate
    will block until

(a) the producer gets sole access to the
buffer
  • (b) the buffer must not be full as indicated in
    the precondition

15
Preconditions in SCOOP
  • if not buffer.full then
  •     buffer.put(value)
  • produce (b separate BUFFER i INTEGER) is
    require b.count lt 2
  • i gt 0 do b.put (i) end

16
Mapping to Eiffel THREAD
  • separate class
  • ROOT_CLASS

class ROOT_CLASS inherit THREAD_CONTROL
feature
feature request_pended INTEGER_REF requests_pende
d_mutexMUTEX
bseparate BUFFER pPRODUCER
bBUFFER b_mutex MUTEX pPRODUCER
17
Mapping to Eiffel 2
  • make is
  • do

make is do requests_pended 1
create b.make
b_mutex.lock create b.make b_mutex.unlock
18
Mapping to Eiffel 3
create p.make (b, b_mutex, requests_pended,
requests_pended_mutex)
create p.make (b)
p.launch
set_feature_to_do (Current, "KEEP_PRODUCING_ROUTI
NE")
19
Mapping to Eiffel 4
  • create c.make (b)

same as p.make
requests_pended_mutex.lock requests_pended.copy
(requests_pended-1) requests_pended_mutex.unlock

end
join_all end
20
Contributions
  • Analysis of Meyers SCOOP with a view to
    implementation semantics of SCOOP via Comptons
    subsystems
  • Based on the semantics of SCOOP provided a
    mapping from SCOOP to Eiffel Threads.
  • Generator parses SCOOP programs, flags syntax
    errors and automatically translates to portable
    executable code based on the mapping.
  • First full implementation of SCOOP
  • contracts
  • routine calls with multiple separate objects

21
Thank You
