Title: DLink Surveillance Products Solution


1

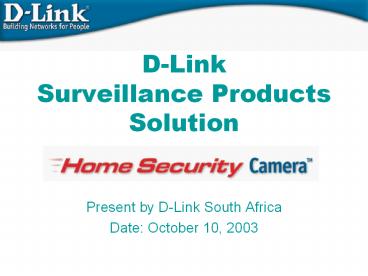

D-Link Surveillance Products Solution
  • Present by D-Link South Africa
  • Date October 10, 2003

2
  • D-Link Product Review
  • D-Link provides….
  • Comparison of Internet Camera
  • Server

3
D-Link Provides
4
DCS-900 Features
  • Common Features for DCS-900
  • 10/100Mbps Throughput
  • Without I/O support
  • Board Lens
  • Web-Based Remote Access
  • View Live Streaming Video From Anywhere
  • VGA Quality Resolution
  • M-JPEG Compression
  • Up To 30 fps in LAN
  • IPView Lite Software
  • Multi-Camera Monitoring (4 cameras) and
    Management
  • Motion-Detection
  • Record Streaming Video To Hard Drive

5
DCS-900W Features
  • Enhancements of the DCS-900W
  • 802.11b Wireless or 10/100Mbps
  • Secure 128-bit 802.11b WEP Encryption
  • Low Price Leader With Advanced Features

6
DCS-900/W Technical Spec.
  • - Remote management
  • Configuration and system log can be accessed
    via Web browser remotely
  • - Networking Protocol
  • HTTP, FTP, TCP/IP, UDP, RARP, PING, ARP, DHCP,
    PPPoE
  • - Ethernet
  • 10BaseT or 100BaseT Fast Ethernet
  • 802.11b (DCS-900W)
  • - Algorithm supported
  • Motion JPEG
  • - Video resolution
  • Up to 30 frames at 640x480 in NTSC (25fps PAL)
  • Up to 30 frames at 320x240 in NTSC (25fps PAL)
  • - Security
  • Administrator and user group protected
  • Password authentication

- Camera specification 1/3 inch color CMOS
sensor 640x480 pixel 2.5Lux/F1.4
AGC/AWB Electronic shutter 1/60 1/15000
second Board lens, - Power 5VDC 2.5A,
external power supply - Weight About 300g -
Viewing system requirement Protocol Standard
Internet TCP/IP suite - Browser Internet
Explorer 5.x or above Netscape
7
DCS-1000 Features
  • Common Features for DCS-1000
  • 10/100Mbps Throughput
  • With I/O support
  • CS Mount Type Lens
  • Web-Based Remote Access
  • Integrated Web Server
  • View Live Streaming Video From Anywhere
  • VGA Quality Resolution
  • M-JPEG Compression
  • Up To 30 fps in LAN
  • IPView Software
  • Multi-Camera Monitoring (16 cameras) and
    Management
  • Record Streaming Video To Hard Drive

8
DCS-1000W Features
  • Enhancements of the 1000W
  • 802.11b Wireless or 10/100Mbps
  • Secure 128-bit 802.11b WEP Encryption
  • First to Market With 802.11b Wireless
    Internet Camera

9
DCS-1000/W Technical Spec.
  • - Remote management
  • Configuration and system log can be accessed
    via Web browser remotely
  • - Networking Protocol
  • HTTP, FTP, TCP/IP, UDP, RARP, PING, ARP, DHCP,
    PPPoE
  • - Ethernet
  • 10BaseT or 100BaseT Fast Ethernet
  • 802.11b (DCS-1000W)
  • - Algorithm supported
  • Motion JPEG
  • - Video resolution
  • Up to 30 frames at 640x480 in NTSC (25fps in
    PAL)
  • Up to 30 frames at 320x240 in NTSC (25fps in
    PAL)
  • - General I/O
  • 2 input
  • 2 relay output
  • - Security
  • Administrator and user group protected
  • Password authentication

- Camera specification 1/3 inch color CMOS
sensor 640x480 pixel 2.5Lux/F1.4
AGC/AWB Electronic shutter 1/60 1/15000
second Standard CS mount type lens, 6mm,
F1.8 - Power 5VDC 2.5A, external power
supply - Weight About 240g - Dimension
6.5x3.5x2.25 inch - Viewing system requirement
Protocol Standard Internet TCP/IP suite -
Browser Internet Explorer 5.x or above
Netscape
10
DCS-2000 Features
  • Common Features for DCS-2000
  • 10/100Mbps Throughput
  • H.263 (MPEG4 Short Header Mode) Video
    Compression
  • IP surveillance Software Enhances
    Multi-Camera Monitoring (16 cameras) and
    Management
  • Record Streaming Video To Hard Drive
  • Powerful playback program to display all
  • kinds of video
  • Real-time synchronized audio and video
  • Flexible configuration for various bandwidth
  • HTTP (Port 80) open
  • Advanced Motion-Detection

11
DCS-2100 Features
  • Enhancements of the 2100
  • 802.11b Wireless or 10/100Mbps
  • Secure 256-bit WEP Encryption
  • First to Market With 802.11b Wireless
    Internet Camera

12
DCS-2000/2100 Technical Spec.
  • - Remote management
  • Configuration and system log can be accessed
    via Web browser and FTP application remotely
  • - Networking Protocol
  • TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS,
    DDNS, DHCP and UPnP
  • - Ethernet
  • 10BaseT or 100BaseT Fast Ethernet
  • 802.11b (DCS-2100)
  • - Video Algorithm supported
  • MPEG4(short header mode)
  • - Features
  • Three adjustable image size and quality
  • Intelligent motion detection windows
  • Flexible bit rate
  • - Audio
  • 24Kbps, 8Kbps(optional)
  • - Video resolution
  • Up to 30 frames at 160x120
  • Up to 30 frames at 320x240
  • Full screen mode(depends on PC display chip)

- Security Administrator and user group
protected Password authentication - LED
indicator Bi-color status indicator - Camera
specification 1/3 inch color CMOS sensor
640x480 2.5Lux/F1.4 AGC/AWB Electronic
shutter 1/60 1/15000 second Standard CS
mount type lens, 6mm, F1.8 - Power 12VDC 1.2A,
external power supply - Weight About 240g -
Dimension 6.x3.2x2 inch - Viewing system
requirement Protocol Standard Internet TCP/IP
suite - Operating system Microsoft Windows -
Browser Internet Explorer 5.x or above
13
DCS-5300 Features
  • Common Features for DCS-5300
  • 10/100Mbps Throughput
  • H.263 (MPEG4 Short Header Mode) Video
    Compression
  • Pan range /- 135 degree
  • Tilt range 90-45 degree
  • IP surveillance Software comply with
  • DCS-2000 DCS-2100
  • UPnP support
  • DDNS support with several famous
  • DDNS server
  • Real-time synchronized audio and video
  • HTTP server max. 10 users to view at the
  • same time

14
DCS-5300W Features
  • Enhancements of the 5300W
  • 802.11b Wireless or 10/100Mbps
  • Secure 256-bit WEP Encryption

15
DCS-5300/W Technical Spec.
  • - Remote management
  • Configuration and system log can be accessed
    via Web browser and FTP application remotely
  • - Networking Protocol
  • TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS,
    DDNS, DHCP and UPnP
  • - Ethernet
  • 10BaseT or 100BaseT Fast Ethernet
  • 802.11g (DCS-5300G)
  • - Video Algorithm supported
  • MPEG4(short header mode)
  • - Features
  • Three adjustable image size and quality
  • Intelligent motion detection windows
  • Flexible bit rate
  • - Audio
  • 24Kbps, 8Kbps(optional)
  • - Video resolution
  • Half 176x112(NTSC) / 176x144(PAL)
  • Halfx2 enlarge half to 352x240(NTSC) /
    352x288(PAL)
  • Normal 352x240(NTSC) / 352x288(PAL)

- Driving Motor Pan range /- 135 degree
Tilt range 90-45 degree - Security
Administrator and user group protected Password
authentication - LED indicator Bi-color status
indicator - Camera specification 1/4 inch
Panasonic CCD sensor Resolution 380 TV Line
2.5Lux/F1.4 AGC/AWB Electronic shutter 1/60
1/15000 second - Power 12VDC 1.2A, external
power supply - Weight About 240g - Dimension
6.x3.2x2 inch - Viewing system requirement
Protocol Standard Internet TCP/IP suite -
Operating system Microsoft Windows - Browser
Internet Explorer 5.x or above
16
DCS-5xxx 2xxx series -
Powerful IP surveillance
  • Monitor program
  • 16 channels real-time monitoring
  • 16 channels real-time recording
  • High compression ratio(1/10 of JPEG), 1fps -
    550days - 40G HDD
  • Optimal full screen
  • Multiple screen layouts
  • Remote digital output control and input
  • indication
  • Flexible schedule
  • Single button recording
  • Event trigger
  • Independent profile for each channel
  • Hard disk reservation
  • Loop-back recording
  • Remote backup

17
DCS-5xxx 2xxx series -
Powerful IP surveillance
  • Playback program
  • Zero waiting searching
  • 16x play forwarding
  • Event searching
  • Time searching
  • Searching on click
  • Nine preview windows
  • Event indication in any
  • period
  • Easy magnification
  • AVI output
  • Encrypted database

18
Why D-Link Surveillance Solution
  • Superior RD team to develop right products
    Time-to-Market
  • Products with high quality
  • Strong local support via worldwide offices
  • Competitive offer to win market share
  • Global network integrate solution provider
  • Unique Culture / Operation Lead by Local
  • Invest on the Local Touch / Service
  • Win - Win Partnership
  • Global Top 2 Professional Networking Brand
  • Superior power surveillance management software
    system
  • (bundled with Internet Camera)

19
Why D-Link Surveillance Solution cont
Superior RD
  • Over 600 engineers in 4 RD
  • centers
  • ASIC design and cost down
  • engineering
  • Software development and
  • system integration
  • Award-winning designs and
  • products

Irvine
Chengdu
Hsinchu
DongGuan
Mumbai
20
Why D-Link Surveillance Solution cont
World Class Manufacturing Capability
  • ISO 9001/14000/TL 9000 Certified.
  • ASRS and Shop Floor Control for flawless process
    engineering.
  • Global ERP system, Supply Chain Management, and
    e-Business for comprehensive IT Support.
  • Manufacturing facilities in Taiwan, China, and
    India.
  • World renowned customers including IBM, Intel,
    HP, Nortel, Extreme, Enterasys in US and Fujitsu,
    NEC in Japan.

21
Extensive Global Brand Channels
D-Link Taiwan Head Office / D-Link China D-Link
North America D-Link Europe D-Link
International
Leading brand name in SMB market segment
83 Sales Offices worldwide in 36
Countries Divided into 4 business units 14 RMA /
logistic centers
22
Comparison of D-Link Camera Servers
23
Comparison of D-Link Competitor
24
Camera Server Roadmap
  • Black Ready
  • Red Release in Q4 2003
  • Purple Release in Q1 2004
  • Brown Release in Q2 2004
  • Blue Release in Q3 2004

DCS-5620G 10/100M 802.11g CCD sensor Internet
Camera With Pan/Tilt/Optical Zoom support
DCS-5620 10/100M CCD sensor Internet Camera With
Pan/Tilt/Optical Zoom support
AudioPTZ
DCS-5325 10/100M CCD sensor Pan/Tilt Internet
Camera With POE support
Bi-Directional AudioPT
DCS-5320 10/100M CCD sensor Internet Camera With
Pan/Tilt support
DCS-5320G 10/100M 802.11g CCD sensor Internet
Camera With Pan/Tilt support
DCS-5300 10/100M CCD sensor Internet Camera With
Pan/Tilt support
DCS-5300W 10/100M 802.11b CCD sensor Internet
Camera With Pan/Tilt support
AudioPT
DCS-2125 10/100M Bi-directional Audio Internet
camera with POE support
DCS-2100 10/100M802.11b Internet camera
w/Audio-in
DCS-2000 10/100M Internet camera w/Audio-in
Audio
DCS-1000 SOHO 10/100M Internet camera
DCS-1000W SOHO 10/100M802.11b Internet camera
SOHO
DCS-905 10/100M Internet camera with POE support
DCS-900 10/100M Internet camera w/o I/O
DCS-900W 10/100M802.11b Internet camera w/o I/O
Entry Level
10/100 Ethernet
802.11b
802.11b
802.11g
POE
25
Building Networks
for People
Thank You!
About PowerShow.com
