Title: LLNL Collaboration on NCSX


1

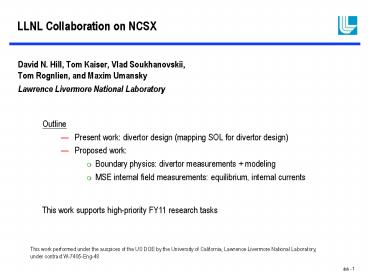

LLNL Collaboration on NCSX
  • David N. Hill, Tom Kaiser, Vlad Soukhanovskii,
    Tom Rognlien, and Maxim Umansky
  • Lawrence Livermore National Laboratory
  • Outline
  • Present work divertor design (mapping SOL for
    divertor design)
  • Proposed work
  • Boundary physics divertor measurements
    modeling
  • MSE internal field measurements equilibrium,
    internal currents

This work supports high-priority FY11 research
tasks
This work performed under the auspices of the US
DOE by the University of California, Lawrence
Livermore National Laboratory, under contract
W-7405-Eng-48
2
LLNL began looking at boundary physics for NCSX
in 2000
  • Internal funding for three years
  • Engaged Greifswald W7-X boundary group to assist
    with development of 3D SOL model
  • Worked with W7-AS group to apply
    VMEC/MFBE/GOURDON codes to map structure of the
    proposed NCSX coil set
  • Began looking at potential diagnostics for SOL
    measurements.
  • Very modest OFES funding since 2002
  • Focus on mapping structure of SOL plasma as
    equilibrium has evolved
  • Focus on mapping SOL to divertor structures to
    support design activies
  • Reduced the scope of our collaboration with
    Greifswald to periodic consulting on their 3D
    SOL code

3
Field line tracing using MHD equilibrium from
either PIES or VMEC/MFBE determines SOL and
divertor geometry
  • Extensive benchmarking activity during FY05-06 to
    compare SOL geometry as determined by PIES and
    VMEC/MFBE equilibrium codes. Some differences are
    observed, but within uncertainties.
  • Computed SOL geometry used in deriving conceptual
    design for divertor plates. SOL transport
    simulated by magnetic field line diffusion.

4
LLNL is supporting design of PFCs
  • Heat flux is estimated by mapping LCFS field
    lines to divertor targets.
  • Field lines are a bit short (higher Te at
    target), but density is higher (lower Te at
    target). Different than Local Island Divertors.
  • Do we need the inner target plates during early
    low-power operation?

5
Infrared and visible TV cameras can provide
information on 3D SOL structure provided
appropriate viewing geometry.
  • Wide-angle tangential views provide outline at
    single cross section.
  • Inversions possible with model of LCFS (similar
    to what we do now on DIII-D with recycling and
    ELMs).
  • Also possible to generate simulated diagnostic
    images.
  • Imaging through most ports will require
    re-entrant optics to obtain desired field of
    view, so most of the cost is related to
    engineering design activities.

6
Livermore Is Responsible for Divertor IR Imaging
on DIII-D and Has Used the Data to Validate 2D
SOL models
  • IR brightness converted to surface temperature,
    from which heat flux can be derived.
  • Heat flux profiles mapped to MHD equilibrium.
  • Measurements can be compared with simulations.
    Example shows UEDGE 2D simulation.
  • On DIII-D, divertor Thomson (LLNL-GA
    collaboration) provides 2D temperature and
    density to compare with simulation.

2d reconstruction of plasma pressure profile in
detached divertor plasma in DIII-D.
7
LLNL Brings Experience Designing, Building, and
Using World-Class DIII-D MSE System to NCSX
Internal Current Profile Measurements.
  • MSE routinely used to constrain MHD
    reconstruction of DIII-D plasmas with strong
    current profile modification (Advanced Tokamak,
    Hybrid, Negative Central Shear, Current Holes,
    edge bootstrap currents). DIII-D will not run AT
    experiments without MSE.
  • Calibration for precision polarization
    measurements, proper line-of-sight, adequate
    spatial resolution, are key elements to
    successful MHD reconstruction.
  • Existing collaborations with U. Wisconsin and
    General Atomics complement strengths of the
    Livermore team.

8
BES measurements verify strong RSAE localization
around qmin location
BES measurements verify strong RSAE localization
around qmin location
119346
A
B
MSE q-profile
A
Major Radius (m)
119345
B
  • BES makes radially localized measurements of
    density fluctuations
  • Combined with MSE, BES data confirm high-n RSAE
    density fluctuations are localized near qmin.

Mike Van Zeeland General Atomics
9
Some general comments on collaborations
  • Collaborations can bring many benefits to host
    institution
  • Unique skills/experience in personnel, new
    hardware capability
  • Potentially cheaper and/or more flexible
    workforce
  • Free energy and fresh ideas from an external
    without the project perspective
  • Collaborations can bring many benefits to the
    collaborating institution
  • New funding for people and equipment (as opposed
    to more work for same people)
  • Opportunity to expand scope of research, applying
    expertise to new problems
  • Increased recognition and invitation to branch
    out further, tackle bigger challenges.
  • Some key elements of successful long-term
    collaborations in experimental science
  • Fund people instrumentation design support
    (free energy, safety valve, tangible assets)
  • Have clearly defined institutional roles for
    collaborating institutions (more than
    individuals)
  • Provide professional growth opportunities for
    collaborators and help advertise role of host
    institutions
