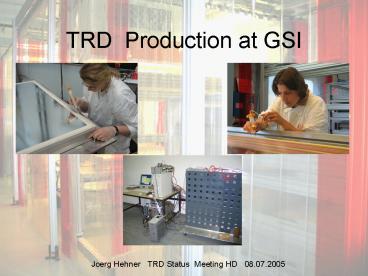

TRD Production at GSI

1
TRD Production at GSI

• Joerg Hehner TRD Status Meeting HD
  08.07.2005

2
24 L5C1 Radiators Frames glued
15 L5C1 Radiator Frames wired 15
Padplanes glued 2 Padplanes
bad
Production Status

• Joerg Hehner TRD Status Meeting HD
  08.07.2005

3
5 L4C1 Radiators Frames glued
1 L4C1 Padplanes glued
Production Status

• Joerg Hehner TRD Status Meeting HD
  08.07.2005

4
13 L5C1 Moduls tested with Fe55
SourceClosed with Tape Gas ArCO2 70/30
HV-Anode 1550 V, HV-Drift -2000 VO2
Concentration below 30ppm, Flush 40l/h, 8hup
to know Dark Current lt 1nA
Testing Status

• Joerg Hehner TRD Status Meeting HD 08.07.2005

5
Problem with Glue System
- Used Araldit AW 106/AW116 with Hardener
HV953U - Observed a very sticky surface after
hardening - Manufacturer declared that they have
Problems producing this Hardener since 2004

• Joerg Hehner TRD Status Meeting HD 08.07.2005

6
Problem with Glue System
- We decide to stop the Production because the
manufacturer cannot guarantee the mechanical
and electrical Properties of this Charge -
Get a Charge of an modifcated Hardener to test
the mech. and electr. Properties - After
checking the Properties, we declared this glue
is ok for our use ( 500 G 3.8T Ohm cm)

• Joerg Hehner TRD Status Meeting HD 08.07.2005

7
Problem with Glue System
- We cannot checked the outgasing of the cured
Glue, concerning of Ageing Phenomena in the
TRD Chamber (Last Ageing test in 1993 of
this glue) - Conclusion, we orderd for all
production Sites enough Hardener to finished
the TRD Production

• Joerg Hehner TRD Status Meeting HD 08.07.2005

8
Problem with Glue System
- What is to do for Future Quality Control -
Make Incoming goods inspection of every
delievered Glue Charge, checked mech./electr.
Properties - Additional Ageing Test - Create
a glue, depends on the Project Specifications
- Test Standards (Create Own Standards or DIN
-Norm Standards)

• Joerg Hehner TRD Status Meeting HD 08.07.2005

9
Statement
Based on this experience, Issues of the Design,
mass Production, Quality Control, system assembly
and testing of this large and complicated
detector system are very important to guarantee a
good quality of the whole system.
