Highlights 2002

1

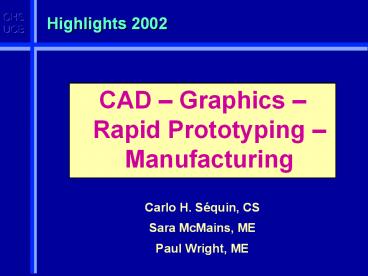

Highlights 2002

• CAD Graphics Rapid Prototyping
  Manufacturing
• Carlo H. Séquin, CS
• Sara McMains, ME
• Paul Wright, ME

2
Prototyping Consumer Products

• Solarcator and Contact-Compact
• Two student-designed products in ME221
• http//kingkong.me.berkeley.edu/html/gallery/Fall1
  999TradeShow/

3
Fused Deposition Modeling
4
Zooming into the FDM Machine
5
Single-thread Figure-8 Klein Bottle
As it comes out of the FDM machine
6
Sculpture Design / Optimization

• Galapagos 2 and Galapagos 3 ( made on our
  FDM machine )

7
Viae Globi Sculptures

• FDM maquettes of other bronze sculptures

8
Z402 3D Printer (Z Corporation)

• Plaster powder selectively glued together

9
3D Printing Z Corporation

• Cleaning up in the de-powdering station

10
120 Cell -- Close-up
11
120 Cell -- Perspective View

• Zcorp,
• 6 diam.,
• 6hrs.

12
Parallel Projection of the 4D 120-Cell

• Zcorp,
• 6 diam.,
• 6hrs.

13
3D Printing in Color !

• Several colors of glue ? Multi-colored parts
• No assembly required !

14
Model ? Prototype ? Mold (milled)

• Injection Molded Housing for ST TouchChip
