Graphs, Good and Bad

1

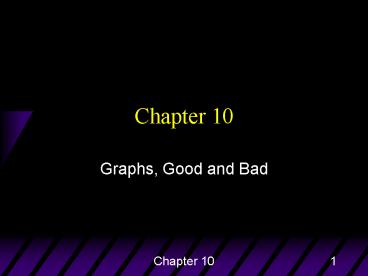

Chapter 10

• Graphs, Good and Bad

2
Chapters 10 -11 Summarizing Data

• Presentation of data
• Frequency Tables
• Pictures of Data
• Numerical Summaries (Center and Variation)

3
Summarizing Data

• Data is often collected in order to answer some
  question or
• address a specific issue.
• When analyzing a data set we should first
  consider whether the data comes from a complete
  population (remember this means taking a census -
  for example test scores of everyone in this
  class) or a sample.
• Methods of descriptive statistics are used to
  summarize the important characteristics of a set
  of data.

4
Important Characteristics of Data

• The following characteristics of data are usually
  important
• Center An average value that indicates where the
  middle of the dataset is located.
• Variation/Spread A measure of the amount of
  variation in the data (average variation from the
  center).
• Distribution The shape of the distribution of
  the data (symmetric, uniform or skewed).
• Outliers Sample values that lie far away from
  the vast majority of the other values.
• Time Trend- changing characteristics of the data
  over time.

5
Frequency Tables

• A frequency table lists data values (either
  individually or by groups of intervals called
  classes ), along with the number of items that
  fall into each class (frequency). Example
• Test Score Frequency
• 0- 4 3
• 5 - 9 10
• 10-14 12
• 15-19 35
• 20-24 20
• 25-29 15
• 30-34 5
• This frequency table has 7 classes
  (0-4,5-9,10-14,15-19,20-24,25-29,30-34). The
  frequency represents the number of students
  receiving that score.

6
Example

• The heights (in inches) of 30 students are as
• follows
• 68 64 70 67 67 68 64 65 68 64 70 72
  71 69 72
• 64 63 70 71 63 68 67 67 65 69 65 67
  66 61 65
• Create a frequency table for the above data
• using the classes 60-61, 62-63, 64-65 etc.

7
RELATIVE FREQUENCY TABLES

• Relative frequency frequency / total of items

• The relative frequency gives the percent of items
  in each class.
• A relative frequency table is a frequency table
  with a column for the relative frequencies. The
  relative frequencies might not add to 1 (100)
  due to rounding.
• Example Construct a relative frequency table for
  our last example.

8
Distribution

• Tells what values a variable takes and how often
  it takes these values.
• Can be a table, graph, or function.

9
Graphs for Categorical Data

• A picture (a good one) is worth a thousand
  words.
• Bar Graph
• Horizontal axis represents the categories.
• Vertical axis represents the frequencies.
• A bar whose height is proportional to the
  frequency is drawn
• centered at the category.

10
Example

• The following table gives the grade distributions
  of a Math 161 Test
• Grade Frequency
• A 5
• B 7
• C 12
• D 5
• F 3
• Draw a bar graph for the data.

11
Graphs for Categorical Data

• Double (Side-by-side) Bar Graphs
• Used to compare two different distributions.
• For each category, draw two adjacent bars (one
  for each
• distribution).

12
Example

• Suppose we now have the grades for two sections
  of Math 161
• Grade Frequency
• Section 1 Section 2
• A 5 3
• B 7 5
• C 12 9
• D 5 4
• F 3 1
• Draw a double bar graph for the data.

13
Example

• Are the frequency bar graphs the right way to
  compare the performance of the two sections? Note
  that the class sizes are not the same. What would
  be a better way to compare the two sections?
• Grade Frequency
• Section 1 Section 2
• A 5 3
• B 7 5
• C 12 9
• D 5 4
• F 3 1

14
Graphs for Categorical Data

• Pie Chart
• Shows the whole group of categories in a circle.
• Shows the parts of some whole .
• The area of the sector representing a category
  is
• proportional to the frequency of the category.

15
Example

• The following table gives the grade distributions
  of a Math 161 Test
• Grade Frequency
• A 5
• B 7
• C 12
• D 5
• F 3
• Draw a pie chart for the data.

16
Pictographs

• A picture of a set of small
• figures or icons used to
• represent data, and often to
• represent trends.
• Usually, the icons are
• suggestively related to the
• data being represented.
• They can be misleading.

17
Pictographs

• Double the length, width, and height of a
  cube, and the volume increases by a factor of
  eight.

18
(No Transcript)
19
Line Graphs

• A line graph shows behavior over time.
• Time is always on the horizontal axis.
• Look for an overall pattern (trend).
• Look for patterns that repeat at known regular
  intervals (seasonal variations).
• Look for any striking deviations that might
  indicate unusual occurrences.

20
(No Transcript)
21
Misleading Graphs

• Changing the scale of a line graph or a bar graph
  can make
• increases or decreases appear more rapid.
• Both graphs plot the same data. Which one makes
  the increase in cancer
• deaths appear more rapid? Which graph would a
  cancer advocate use?

22
Salaries of People with Bachelors Degrees and
with High School Diplomas Which graph is
misleading?
40,500
40,500
40,000
40,000
30,000
35,000
24,400
30,000
20,000
24,400
25,000
10,000
20,000
0
Bachelor High School Degree Diploma
Bachelor High School Degree Diploma
(a)
(b)
23
Important skills

• Computer programs will construct plots and
  calculate summary statistics automatically.
• The important skills for people are
• knowing what to use when.
• Interpretation.
• The tools used to analyze and summarize data
  depend upon the type of variable one is
  interested in.

24
Principles for plots

• The way plots are used depends upon the purpose
  for which
• they are being used
• Exploration
• Principle Look at the data in as many different
  ways as possible searching for its important
  features.
• Communication to others (follows exploration)

• Principle Be selective. Choose the displays
  that best show to a reader features you have
  observed.

25
Making Good Graphs

• Title your graph.
• Make sure labels and legends describe variables
  and their measurement units. Be careful with the
  scales used.
• Make the data stand out. Avoid distracting
  grids, artwork, etc.
• Pay attention to what the eye sees. Avoid
  pictograms and tacky effects.

26
Key Concepts

• Categorical and Quantitative Variables
• Distributions
• Pie Charts
• Bar Graphs
• Line Graphs
• Techniques for Making Good Graphs

27
Chapter 11

• Displaying Distributions with Graphs

28
Stemplots(Stem-and-Leaf Plots)

• For quantitative variables.
• Separate each observation into a stem (first part
  of the number) and a leaf (the remaining part of
  the number).
• Usually, the last digit is used as the leaf and
  the remaining digits form the stem.
• If using the last digits as they are results in a
  lot of stem values, we could round the numbers to
  more convenient values.
• Write the stems in a vertical column draw a
  vertical line to the right of the stems.
• Write each leaf in the row to the right of its
  stem order leaves if desired.

29
Weight DataWeights (in pounds) for a group of 40
students.
30
Weight DataStemplot(Stem and Leaf Plot)
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2
6
5
2
570
Key 203 means203 pounds Stems 10sLeaves
1s
2
31
Stem-and-Leaf Plots

• Double stemmed (expanded) stem-and-leaf
• If there are a lot of leaves on one stem, we
  could break it up into two stems one for the
  digits 0-4 and the other for the digits 5-9.
• Back to back Used to compare two different sets
  of data.

32
Histogram

• A histogram is a bar graph in which
• the horizontal axis represents the items or
  classes.
• the vertical axis represents the frequencies.
• the height of the bars are proportional to the
  frequencies.
• There are usually no gaps between the bars
  (unless some classes have 0
• frequencies).
• To draw a histogram, we first need to construct a
  frequency table.
• Example draw a histogram for our weights
  example.
• The number of classes can affect the shape of the
  histogram.
• http//www.stat.sc.edu/west/javahtml/Histogra
  m.html

33
Weight Data Frequency Table
Left endpoint is included in the group, right
endpoint is not.
34
Weight Data Histogram
Left endpoint is included in the group, right
endpoint is not.
35
Shape of the Data

• Symmetric
• bell-shaped
• other symmetric shapes
• Asymmetric
• skewed to the right
• skewed to the left
• Unimodal, bimodal

36
Symmetric Distributions
Bell-Shaped
Mound-Shaped
37
Symmetric Distributions Uniform
38
Asymmetric Distributions
Skewed to the Left
Skewed to the Right
39
(No Transcript)
40
Number of Books Read for Pleasure
41
Outliers

• Extreme values, far from the rest of the data.
• May occur naturally.
• May occur due to error in recording.
• May occur due to error in measuring.
• Observational unit may be fundamentally different.

42
Key Concepts

• Displays (Stemplots Histograms)
• Graph Shapes
• Symmetric
• Skewed to the Right
• Skewed to the Left
• Outliers
