Grid and High Energy Physics

1
Grid and High Energy Physics

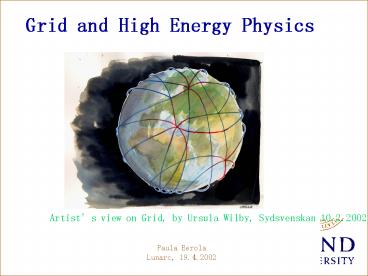

Artists view on Grid, by Ursula Wilby,
Sydsvenskan 10.2.2002
Paula Eerola Lunarc, 19.4.2002
2
High Energy Physics and Grid
(108 events3.5 PetaBytes)/year
3
High Energy Physics Computing

• High Throughput Computing
• Data consists of independent events
• Computing in parallel not parallel computing
• Use inexpensive mass market components
• Use nationally available resources
• Need inexpensive, distributed, scalable
  system?GRID
• A fully operational GRID-system has to work when
  the Large Hadron Collider, LHC, starts in 2007

4
Computing Model for LHC data processing
Data Grid concept in high energy physics
applications
5
What is Grid?

• A technology to join together computers at
  different locations, and to provide easy access
  to this capacity.
• User can get access to computer capacity anywhere
  in the Grid.
• World-wide-web?access to information
• World-wide-grid?access to PC capacity

• Initiated in the end-90s in the US by physicists
  who wanted to connect together the US
  supercomputer centers.
• Ian Foster, Carl Kesselman, July, 1998 The GRID
  Blueprint for a new Computing Infrastructure

6
Who are interested in Grid?

• All areas of basic research which deal with large
  amounts of data and/or large computing
  requirements, for example biomedicine, earth
  sciences, space/astrophysics, particle physics,
  etc.

• All areas of applied research which deal with
  large amounts of data and/or large computing
  requirements, for example analysis of financial
  markets, industrial process optimization,
  industrial design, etc.

7
Who are interested in Grid?

• Huge commercial interests film animation,
  electronic commerce etc.

• IBM, Sun, Compaq, Platform Computing are some of
  the companies which have joined the Grid
  development
• IBM Grid-enable the companys entire product
  portfolio. Close cooperation with the open source
  Globus development.
• Platform Computing Recently acnnouned the first
  commercial Grid software, the Platform Globus.

8
Swedish HEP Grid activities

• March 2000 Lund workshop first discussion on
  using Grid for basic research in particle physics
• During 2000 CERN-EU DataGrid and Nordic
  NorduGrid projects are formed. Lund group
  (Elementary Particle Physics, EPF, at the Lund
  University) active in both projects.
• Testbeds building, testing and developing Grid
  in the framework of DataGrid and NorduGrid.
  Generic research in Grid-systems.

9
NorduGrid

• NorduGrid NordicTestbed for Wide area Computing
  and Data Handling
• www.nordugrid.org
• The pioneering Grid project in the Nordic
  countries

10
NorduGrid objectives

• Introduce the Grid to the Nordic countries
• Create a Grid infrastructure in Nordic countries
• Survey and develope current Grid technologies
• Operate a functional Testbed
• Expose the infrastructure to end-users of
  different scientific communities

Sites Lund, Copenhagen, Oslo, Bergen, Uppsala,
Stockholm, Helsinki
11
NorduGrid project

• The project was initiated by the Nordic High
  Energy Physics community
• LHC data challenge of CERN (several Petabytes /
  year)
• Operates as part of the CERN-EU DataGrid Testbed
• Physicists are among the driving forces of the
  World Wide Grid developement
• The project is financed via the Nordunet2
  programme. Project duration Jan 2001 - Nov 2002.
• Continued NorduGrid is being planned under NOS-N.

12
NorduGrid progress

• Hardware dedicated test clusters at 5 sites (3-5
  machines), separate test machines at 2 sites
• 7 Grid-connected sites
• Manpower 5 full time researchers (O. Smirnova
  B.Kónya Lund, A. Wäänänen Copenhagen, M. Ellert
  Uppsala, A. Konstantinov Oslo)
• Design and implementation of the NorduGrid
  Middleware Architecture
• Deployment evaluation of the first release of
  the CERN-EU DataGrid Middleware (Information
  index, Job submission interface, Broker)

13
NorduGrid status April 2002

• Grid-services which are now fully functional
• Certification Authority,
• NorduGrid Information System browser
• NorduGrid Virtual Organization,
• Grid Data Mirroring Package GDMP and Data
  Replication Catalog
• GridFTP.
• Stable software releases and documentation

• Based on the Globus Toolkit
• A new jobmanager is written
• A User Interface is added
• The appropriate information schema is deployed
• Extensions to the Globus Resource Specification
  Language are made
• March 28, 2002 first REAL job is submitted from
  Lund to Oslo and successfully returned all the
  expected output

14
CERN-EU DataGrid

• Swedish participation in the EU DataGrid project
  VR (SWEGRID) is an associate partner to CERN.
• WP2 Data Management (PDC), WP6 Testbeds
  (NorduGrid), WP8 HEP Applications (NorduGrid),
  WP10 Biology Applications (KI),
• In total EU-IST funds different Grid projects
  (DataGrid, CrossGrid, DataTag, EGSO, Gridlab,)
  ranging from applications to middleware to
  infrastructure for 36 MEuro

15
Planned future Nordic Data Grid Facility

• In 2004 it is foreseen that a Nordic Data Grid
  Facility will be created.
• The Nordic Facility will be a so-called Tier-1
  Centre with a capacity of about 1700 x (Dual 1
  GHz Intel PIII) plus fileservers and tape robots.
• Financial scope 150 MSEK (16MEuro).
• The Facility will serve all interested fields of
  science.

16
Nordic Data Grid Facility

• Working paper by a NOS-N working group (April 4,
  2002) road map towards the Nordic Grid Facility

Prorotype period 2002-2004 continued NorduGrid.
Scope 0.54 MEuro.
Capacity building 2004-2007 Scope 15 MEuro.
17
Planned future Sweden

• Continued NorduGrid 2002-2004 build-up of
  competence in Lund-EPF and elsewhere.
• Build-up of resources multidisciplinary project
  for Development of GRID testbed in Sweden in
  preparation.
• Includes biomedical science, earth sciences,
  space/astrophysics, high-energy physics (incl.
  Lund-EPF), information sciences, computer centers
  (incl. Lunarc).
• Could become part/first phase of the Nordic Data
  Grid Facility.
