Development Plan of the Slovenian Transmission Grid Inside the UCTE Interconnection

1

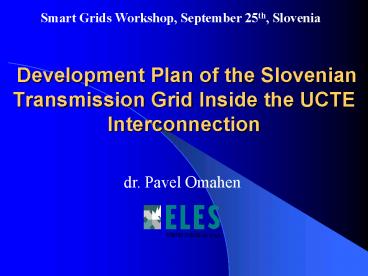

Development Plan of the Slovenian Transmission
Grid Inside the UCTE Interconnection
Smart Grids Workshop, September 25th, Slovenia
2
Current operation state of the Slovenian power
system

• Relatively strong transmission network, 2000 MW
  of peak load and sufficient production capacities
  inside system for domestic demand covering
• In-expensive use of the Slovenian transmission
  network by EU energy market players leads to
  un-secure operation conditions of the Slovenian
  power system and the whole UCTE network.
• Extensive energy power flow from north-east to
  west is concentrated on the Slovenia-Italy border
  and secure power system operation is endangered

3
UCTE Energy Balance is Concentrated on the
Slovenia-Italy Border
-7000 MW
4
Total Power Flow on Slovenia-Italy Border During
2001
MW 1200 900 600 300 0 -300
TTC
NTC
Power flow
January February March April May
June July August Sept. October
Novem. Decem.
5
Total Power Flow on Slovenia-Italy Border During
2005
NTC
6
Dynamic simulation results, case 1 SLO-I
tie-lines outage at 1000 MW
7
Dynamic simulation results, case 2 SLO-I
tie-lines outage at 1700 MW
NTC
8
Possible UCTE splitting due to the large distance
power transfer
9
Actual and Administrative Slovenia-Italy
Tie-lines Capacity Contrast

• Thermal capacity of the existing two high-voltage
  lines between Slovenia and Italy, installed on
  the corridor from Divaca substation, is more than
  2000 MW.
• Secure capacity of the existing corridor is due
  to the whole UCTE network limitation (mostly
  because of the un-complete Austrian network)
  about 1200 MW to max.1500 MW, depending on power
  flow control possibilities.
• The actual power flow on Slovenia-Italy border is
  moving around the maximal technical capacity of
  the tie-lines.
• The existing administrative level for network
  trading is just cca. 400 MW and is not in
  accordance with the actual power flows and
  technical limits.

10
The reason for discrepancy between actual power
flow and administrative NTC level money game

• Average auction price for the Slovenian-Italy
  cross-border capacity use is pretty high (12
  Euro/MWh) due to existence of the non-expensive
  power sources in the north-east area.
• Slovenia is loosing about 25 million Euro/year
  for its network use due to the too low
  administrative NTC level on Slovenia-Italy border
  this money is collected on other EU borders.
• Merely a cost of the Slovenian transmission
  network active power losses are climbed to 20
  millions Euro/year and almost a half of that
  losses are caused by the transit power flows.
• ELES should cover the costs (losses, maintenance,
  re-dispatching) and risks of energy trading power
  flows by income from domestic energy users.

11
Possible Technical Solutions

• Strengthening the transmission network by
  constructing new high-voltage lines, and
• installing devices for active power flow control
  on the certain transmission lines (phase-shifting
  transformers, PST)

12
PST Inside Divaca Substation

• ELES already started investment process for 400
  kV and 1200 MVA PST construction inside Divaca
  substation in order to
• control power flows across its network under
  secure technical level assuring thus reliable
  operation of a huge part of the UCTE network,
• control power flow on Slovenia-Italy border close
  to the existed maximal technical limit (1500 MW)
  if the NTC height will follow this technical
  possibilities,
• enable a safe and non-cost re-closure of the
  Slovenia-Italy tie-lines by help of the wide
  range voltage-angle control of the installed PST.


13
Steps of ELES investment plan on the Slovenian
transmission network
14
Conclusion

• ELES steps of its transmission network
  investments will assure
• reliable supply of domestic electric energy
  consumers,
• secure operation of the whole UCTE
  interconnection, not dependent of unpredictable
  EU market processes,
• more fair distribution of market affected costs
  and incomes inside EU TSO partners
