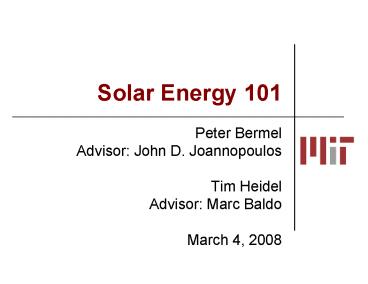

Solar Energy 101

1
Solar Energy 101

• Peter Bermel
• Advisor John D. Joannopoulos
• Tim Heidel
• Advisor Marc Baldo
• March 4, 2008

2
Outline

• Introduction to solar energy
• Solar thermal
• Solar photovoltaics
• Organic (soft) materials
• Inorganic (hard) materials
• Solar market
• Conclusion

3
Inorganic Photovoltaics

• Device design
• Major categories
• Silicon
• Single crystal
• Polycrystalline
• Amorphous silicon
• Microcrystalline
• Micromorph
• CIGS
• Cadmium telluride

4
Inorganic PV Device Design

• Solid-state device, based on diode
• Optical design maximizes absorption
• Absorption generates photocarriers
• Electric field brings photocarriers to terminals

electric field
5
Monocrystalline Silicon PV

• One of the first, and still dominant, cell
  technologies
• Advantages
• Process is mature
• Relatively high efficiencies
• Disadvantages
• High materials usage
• High costs
• Batch processing

Czochralski process for creating monocrystalline
silicon ingots
Ingots are then sawed into individual wafers
6
Polycrystalline Silicon PV

• Manufacturing improvement decreases
• Costs
• Kerf loss
• Disadvantages
• Lower electronic quality
• Increased fragility

Evergreens string ribbon process
7
Amorphous Silicon PV

• First commercial thin-film technology
• Advantages
• Monolithic deposition
• Low materials usage
• Disadvantages
• Large bandgap
• Low material quality

Sanyos Amorton a-Si PV cell
8
Microcrystalline Silicon PV

• Emerging commercial thin-film technology
• Advantages
• Broader absorption spectrum (vs. a-Si)
• Disadvantages
• Light trapping problematic in near-IR

CSG Solars nc-Si PV cell
9
Micromorph PV

• Combines microcrystalline and amorphous silicon
• Can be double or triple junction
• Covers whole solar spectrum more efficiently ?
  20 efficiency improvement

Schematic of triple-junction cell design
10
CIGS (Copper Indium Gallium Diselenide)

• Engineered for direct bandgap at target
  wavelength
• Promising efficiencies up to 20
• Sticking point manufacturing processes
• Vacuum deposition
• Inkjet-style printing

CIGS cell diagram (from AIST, Japan)
CIGS manufacturing (from AIST, Japan)
11
CdTe (Cadmium Telluride)

• Advantages
• Direct bandgap at target wavelength
• Inexpensive fabrication process
• Disadvantages
• Susceptibility to degradation
• Cd toxic

CdTe cell diagram (from Awakura lab, Kyoto
University)
12
Best Research-Cell Efficiencies (NREL)
Spectrolab
Multijunction ConcentratorsThree-junction
(2-terminal, monolithic)Two-junction
(2-terminal, monolithic) Crystalline Si
CellsSingle crystalMulticrystallineThin
Si Thin Film TechnologiesCu(In,Ga)Se2CdTe
Amorphous SiH (stabilized) Emerging PVOrganic
cells
36
Spectrolab
Japan Energy
32
NREL/ Spectrolab
NREL
28
NREL
UNSW
UNSW
24
UNSW
Spire
UNSW
NREL Cu(In,Ga)Se2 14x concentration
UNSW
Stanford
Spire
UNSW
ARCO
Georgia Tech
20
NREL
Efficiency ()
Sharp
Georgia Tech
Westing- house
Varian
NREL
NREL
NREL
16
UniversitySo. Florida
NREL
No. Carolina State University
NREL
AstroPower
Euro-CIS
Boeing
Solarex
ARCO
Boeing
Kodak
12
Boeing
UnitedSolar
AMETEK
Masushita
United Solar
AstroPower
Kodak
Boeing
8
Monosolar
Photon Energy
RCA
Solarex
University California Berkeley
Boeing
Princeton
University of Maine
4
RCA
RCA
UniversityKonstanz
RCA
RCA
RCA
NREL
RCA
0
2000
1995
1990
1985
1980
1975
026587136
13
Solar Market
14
Solars Growing Rapidly

• Solars transitioning from niche to mainstream at
  CAGR 40
• 10 billion in sales in 06
• Drivers
• Rising energy costs
• Increased subsidies
• Environmental concerns
• Energy security
• Improved manufacturing

Solar markets growth (from Travis Bradford)
15
Solar Market Share
Fraction of modules manufactured in 2006
(2.5 GW total)
16
Photovoltaic Learning Curve
Courtesy Dan Arvizu (Director, NREL)
17
Silicon Supply Issues

• Silicon supply is constrained reasons
• Explosive demand growth
• Capital and time-intensive process of building
  new plants
• Few companies have necessary expertise
• Hoarding?
• New supplies coming online later this year

Polysilicon price inflation (from Travis Bradford)
18
Solar Investments

• 1 billion of VC investments in 07
• Most deals in thin-film space
• CIGS Nanosolar, Miasole, Heliovolt, Solibro,
  Solopower, Solyndra
• Thin-film silicon CSG Solar, Flexcell,
  Optisolar, Signet
• II-VI materials Sunovia, EPIR
• Other deals Stion, Infinia

19
Market Growth Projections

• Overall market projected to grow at 30 tripling
  to 30 billion by 13
• Thin films growing from niche to a quarter of
  overall supply

3 scenarios for PV sales growth (from Travis
Bradford)
20
Decreasing Costs of Solar
Courtesy Dick Swanson (CTO, Sunpower)

• Potential for huge drop in installed costs of
  solar system through variety of sources
• Solar power on track to match grid prices in a
  variety of locations grid parity

21
Conclusion

• Two mechanisms to convert photons into power
• Technological landscape is diverse in terms of
  applications, maturity, and costs
• Solar market should continue growing rapidly
• Thin-films expected to be major players in the
  near-term
• Grid parity possible within a decade

22
Thank You!

• Any questions for Tim or Peter?

23
(No Transcript)
24
Introduction to Solar Energy

• Objective convert photons into electricity as
  efficiently as possible
• Approaches
• Concentration of light ? steam ? turbine
• Absorbed photons ? free electrons ? electricity

25
Solar Energy

• Clean, abundant energy source
• Solar spectrum close to black-body spectrum for
  T5800K
• Crystalline silicon has near-optimal band gap
• Absorption of silicon limited in near IR

Solar irradiance spectrum (on earth)
c-Si absorption spectrum
26
Photonic Crystals (PhCs)
1D
2D
3D

• Periodic dielectric media reflect certain
  wavelengths and transmit others
• Certain structures display a full 3D photonic
  band gap (PBG)

periodic dielectric structures
PBG for diamond structure
Joannopoulos et al., Photonic Crystals (2007)
27
Omnidirectional Reflectors

• 1D PhC with special index values
• Brewster angle outside light line of air leads to
  reflection at
• All angles, and
• All polarizations, for
• Frequencies in omnidirectional band gap

Projected bandstructure for omnidirectional
reflector
Joannopoulos et al., Photonic Crystals (2007)
28
Current Light Trapping Schemes

• Traditional light trapping based on geometric
  optics
• Aluminum back reflector absorptive
• Effective path length enhancement limited to 2n2
• Perfect scattering not achieved in experiments
• Texturing can introduce electrical losses

Front surface texturing
c-Si, index n
Aluminum back reflector
29
Two New Solar Cell Designs

• Wave optics targets key wavelengths in c-Si
• Two designs
• DBR reflector grating
• Photonic crystal

30
Mechanisms of Light Trapping

• Reflection introduces stronger reflection than
  before
• Diffraction introduces coupling to guided modes
  in silicon
• Mode characteristics modeled with simple model

31
Absorption Spectrum (2 ?m-thick c-Si)

• Slight edge for PhC Less scattering loss
  extra absorbing region

32
Efficiency Enhancement for Gratings
For optimized parameters, 2D grating efficiency
enhancement ranges from 7 at 128 mm up to 35 at
2 mm
