Title: TIGGE Archive and Access at NCAR


1

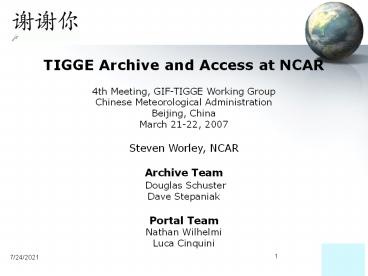

TIGGE Archive and Access at NCAR
  • 4th Meeting, GIF-TIGGE Working Group
  • Chinese Meteorological Administration
  • Beijing, China
  • March 21-22, 2007
  • Steven Worley, NCAR
  • Archive Team
  • Douglas Schuster
  • Dave Stepaniak
  • Portal Team
  • Nathan Wilhelmi
  • Luca Cinquini

2
Outline
  • Introduction
  • Archive Structure and Content
  • Access Portal
  • Analysis Tools
  • Futures
  • Summary

3
Introduction
  • Archive Centers
  • NCAR
  • ECMWF
  • CMA
  • Data Collection Mechanism
  • Unidatas Internet Data Distribution/Local Data
    Manager system (IDD/LDM)
  • Proven and scalable method
  • 172 GB/day and will accommodate more

4
Archive Structure and Content
  • Future Data Providers
  • Australia
  • China (also an archive center)
  • Canada
  • Brazil
  • Korea
  • France

5
Archive Structure and Content
  • Organization of TIGGE Parameters
  • Four Level Types
  • Grouping of parameters into data file
  • (SL) Single Level
  • includes surface
  • (PL) Pressure Level
  • 1000, 925, 850, 700, 500, 300, 250, 200, 50 hPa
  • (IL) Isentropic Level
  • 320K
  • (PV) Potential Vorticity Level
  • 2 PVU

6
Archive Structure and Content
  • Storage Strategy
  • Level Types separated by
  • Provider
  • Forecast time
  • Each file contains all ensemble members and
    parameters for a Level Type
  • Long-term archive at NCAR on Mass Store System
  • Dataset Research Data Archive (RDA)
  • Near real-time, 2-3 weeks data online
  • Access via TIGGE Portal
  • Note File strategy is quite different than ECMWF
    and CMA
  • MARS System - enables access to individual 2D
    global grids

7
Archive Structure and Content
  • Summary of Data Providers

8
Archive Structure and Content
  • Type Pressure Level

9
Archive Structure and Content
  • Type Isentropic Level

Type Potential Vorticity Level
10
  • Type Single Level

11
  • Type Single Level Parameters cont.

12
Access Portal
  • TIGGE Web Portal Features (http//tigge.ucar.edu)
  • Registration
  • Search, discover, and download files
  • Select data by
  • initialization date/time
  • data provider
  • level type, i.e. file type
  • forecast time
  • By agreement, 48 hour delay for access
  • Real-time by IPO determination

13
Access Portal
14
(No Transcript)
15
Access Portal
  • TIGGE Web Portal (http//tigge.ucar.edu)
  • Steps to finish a request
  • Form to review and verify request
  • Includes data volume
  • If acceptable
  • Download files one-by-one via browser
  • Receive a download script to run on your machine
  • Uses wget utility
  • Each wget command has an encrypted key
  • Running the script - stream multi-center,
    multi-file data to your system
  • If not acceptable - refine your request, repeat,
    or stop

16
Access Portal
  • TIGGE Web Portal Metrics
  • Portal Users
  • Total guests 1745
  • User registrations 36
  • Data Movement
  • Data downloaded 140 GB
  • Files downloaded 656
  • Unique download users 21
  • Expect Data Movement to increase drastically
    with new interface

17
Access Portal, long-term data provision
  • NCAR Research Data Archive
  • http//dss.ucar.edu/datasets/ds330.0/ -2006
  • http//dss.ucar.edu/datasets/ds330.1/ -2007
  • The RDA dataset enables
  • Access to the long-term TIGGE archive.
  • Easy use to use on NCAR CISL computers data
    coming directly from the Mass Store System
  • NCAR computing accounts available upon request
  • Support staff to handle requests for offline data
  • Forecast file structure identical to online files

18
Analysis Tools
  • Tools for Basic Data Manipulation
  • WMO GRIB2 is relatively new, - tools are immature
  • Forecasts with ensemble members add another
    dimension
  • Improvements underway in
  • NCAR Command Language (NCL)/Python
  • New Release end of March 2007
  • GEMPACK, GRIB-Java (Unidata)
  • NOAA tools (wgrib2, GRIB-2 software libraries,
    etc)
  • ECMWF GRIB API
  • http//tigge.ucar.edu/data-tools.htm

19
Futures
  • New providers and provider updates, e.g. NCEP is
    going to increase ensemble members next week
  • Interface to receive subset data requests (e.g.
    parameter selection), the delayed mode processing
  • Provide user selected grid interpolation across
    multiple models
  • Add spatial sub-setting functionality
  • Include subscription services for recurring
    requests
  • Continue improvement on analysis tools
  • Provide web services for automated requests
  • Common interface for NCAR, ECMWF, and CMA
  • Accomplishments are funding resource dependent

20
Summary
  • NCAR now archiving data from 4 providers (ECMWF,
    NCEP, UKMO, JMA)
  • Other data providers plan to begin in 2007
  • TIGGE archive and access systems designed to
    accommodate high diversity in data provided
  • More access improvements are needed
  • Excellent collaboration with the other archive
    centers

21
  • Questions
  • Contact Information
  • http//tigge.ucar.edu
  • worley_at_ucar.edu
