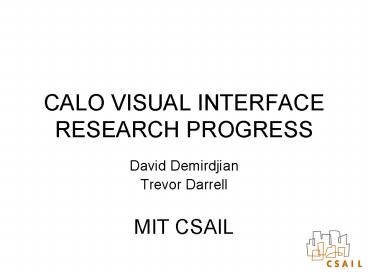

CALO VISUAL INTERFACERESEARCH PROGRESS

• David Demirdjian
• Trevor Darrell
• MIT CSAIL

2
pTablet (or pLaptop!)

• Goal visual cues to conversation or interaction
  state
• presence
• attention
• turn-taking
• agreement and grounding gestures
• emotion and expression cues
• visual speech features

3
Functional Capabilities

• Help CALO infer
• whether the user is still participating in a
  conversation or interaction,
• is focused on the interface or listening to
  another person.
• when the user is speaking,
• further features pertaining to visual speech
• non-verbal means to observe whether a user is
  confirming understanding of or agreement with the
  current topic or question,
• is confused or irritated
• both for meeting understanding, and CALO UI

4
Machine Learning Research Challenges

• Focusing on learning methods which capture
  personalized interaction
• Articulatory models of visual speech
• Sample-based methods for body tracking
• Hidden-state conditional random fields
• Context-based gesture recognition
• (Not all are yet in deployed demo)

5
Articulatory models of visual speech

• Traditional models of visual speech presume
  synchronous units based on visimes, the visual
  correlate of phonemes.
• Audiovisual speech production is often
  asynchronous
• Model with formed with a series of loosely
  coupled streams of articulatory features.
• (See Saenko and Darrell, ICMI 2004, and Saenko et
  al., ICCV 2005, for more information.)

6
Sample-based methods for body tracking

• Tracking human bodies requires exploration of a
  high-dimensional state space
• Estimated posteriors are often sharp and
  multimodal.
• New tracking techniques based on novel
  approximate nearest neighbor hashing method which
  have comprehensive pose coverage, and optimally
  integrate information over time.
• These techniques are suitable for real-time
  markerless motion capture, and for tracking the
  human body to infer attention and gesture.
• (See Demirdjian et al. ICCV 2005, and Taycher et
  al. CVPR 2006 for more information.)

7
Hidden-state conditional random fields

• Discriminative techniques are efficient and
  accurate, and learn to represent only the portion
  of a state necessary for a specific task.
• Conditional random fields are effective at
  recognizing visual gestures, but lack the ability
  of generative models to capture gesture
  substructure through hidden state.
• We have developed a hidden-state conditional
  random field formulation.
• (See Wang et al. CVPR 2006.)

8
Hidden Conditional Random Fields for Head Gesture
Recognition
3 classes Nods, Shakes, Junk
Models Accuracy()
HMM W 0 46.33
CRF W 0 38.42
HCRF(multiclass) W 0 45.37
HCRF(multiclass) W 1 64.44
9
Context-based gesture recognition

• Recognition of users gesture should be done in
  the context of the current interaction
• Visual recognition can be augmented with context
  cues from the interaction state
• conversational dialog with an embodied agent
• interaction with a conventional windows and mouse
  interface.
• See Morency, Sidner and Darrell, ICMI 2005 and
  Morency and Darrell, IUI 2006

10
User Adaptive Agreement Recognition

• Persons idiolect
• User agreement from recognized speech and head
  gestures
• multimodal co-training
• Challenges
• Asynchrony between modalities
• Missing data problem

11
Status

• New pTablet functionalities
• Face/gaze tracking
• Head gesture recognition (nod/shake) Gaze
• Lip/Mouth motion detection
• User enrollment/recognition (ongoing work)
• A/V Integration
• Audio-visual sync./calibration
• Meeting visualization/understanding

12
pTablet system

• user model (frontal view)
• pose (6D)

• OAA messages
• person ID
• head pose
• gesture
• lips moving

pTablet camera
Head Gesture Recognition
Speech
audio
13
(No Transcript)
14
Speaking activity detection

• Face tracking as
• Rigid pose

15
Speaking activity detection

• Face tracking as
• Rigid pose Non-rigid facial deformations

16
Speaking activity detection

• Speaking activity
• high motion energy in Mouth/lips region
• weak assumption (eg. hand moving in front of
  mouth will trigger speaking activity detection)
• But complement well audio-based speaker detection

17
Speaking activity detection
18
User enrollment/recognition

• Idea
• At start the user is automatically identified and
  logged in by the pTablet.
• If the user is not recognized or misrecognized,
  he will have to login manually.
• Face recognition based on a Feature Set Matching
  algorithm (The Pyramid Match Kernel
  Discriminative Classification with Sets of Image
  Features. Grauman and Darrell ICCV05)

19
Audio-Visual Calibration

• Temporal calibration
• aligning audio with visual data
• How? by aligning lip motion energy in images with
  audio energy
• Geometric calibration
• estimate camera location/orientation in the world
  coordinate system

20
Audio-Visual Integration
CAMEO
pTablets
21
Calibration

• Alternative approach to estimate the
  position/orientation of the pTablets with or
  without global view (eg. from CAMEO)
• Idea use discourse information (eg. who is
  talking to who, dialog bw. 2 people) and local
  head pose to find the location of the pTablets

22
A/V Integration

• AVIntegrator
• Same functionalities as Year 2 (eg. includes
  activity recognition, etc)
• modified to accept calibration data estimated
  externally

23
Integration and activity estimation

• A/V integration
• Activity estimation
• Whos in the room
• Who is looking at who?
• Who is talking to who?

24
A/V Integrator system
Calibration information

• OAA/MOKB messages
• user list
• speaker
• agrees/disagrees
• who to whom

A/V Integrator
eg. current speaker
Discourse/Dialog
Speech recognition
?
25
A/V Integration
26
Demonstration?

• Real-time meeting understanding
• Use of pTablet suite for interaction with
  personal CALOeg.
• use of head pose/lip motion for speaking
  activity detection
• Yes/No answer by head nods/shakes
• Visual login
