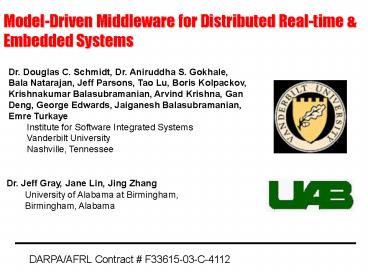

Model-Driven Middleware for Distributed Real-time
Embedded Systems
Dr. Douglas C. Schmidt, Dr. Aniruddha S. Gokhale,
Bala Natarajan, Jeff Parsons, Tao Lu, Boris
Kolpackov, Krishnakumar Balasubramanian, Arvind
Krishna, Gan Deng, George Edwards, Jaiganesh
Balasubramanian, Emre Turkaye Institute for
Software Integrated Systems Vanderbilt
University Nashville, Tennessee
Dr. Jeff Gray, Jane Lin, Jing Zhang University
of Alabama at Birmingham, Birmingham, Alabama
DARPA/AFRL Contract F33615-03-C-4112
2
Model Driven Middleware for DRE Systems
Metadata descriptors, deployment launch scripts

• CoSMIC Tailored towards the new OMG Deployment
  Configuration specification

• Analysis model checking (KSU)

• Aspect modeling

• Model weaving via C-SAW (UAB sub)

• Synthesize benchmarking suite, descriptor
  metadata, launch scripts

• CIAO QoS-enabled component middleware for DRE
  systems (WashU Collaboration)

• www.dre.vanderbilt.edu/cosmic
  www.dre.vanderbilt.edu/CIAO

3
CoSMIC Tools Packaging (1/7)

• Composable Adaptive Software Systems (COMPASS)
  tool to resolve the problem of packaging
  component functionality
• Modeling paradigm that allows DRE application
  integrators to model the component assembly and
  packaging aspect
• Model interpreter enables the synthesis of
  metadata describing component packages
• Run-time tool support to parse the descriptors
  and create assemblies
• POC Krishnakumar Balasubramanian
  (kitty_at_dre.vanderbilt.edu)

4
CoSMIC Tools ORB Configuration (2/7)

• Options Configuration Modeling Language (OCML)
• Addressed ORB-level configuration aspects
• OCML provides constraints on valid combinations
  of ORB parameters.
• Synthesizes descriptors encoding the rules
• Application developers model a set of ORB
  configuration parameters
• Application developers validate their ORB
  configurations against these rules

POC Emre Turkaye (turkaye_at_dre.vanderbilt.edu)
5
CoSMIC Tools Event Channel Integration (3/7)
Event channel integration in CIAO

• RT Event channel integration with CIAO containers
• Patterns-based unified API to integrate event
  service, notification service and real-time event
  service
• Model-driven synthesis of descriptor metadata for
  event channel configuration and integration
• Permits event delivery for events between
  colocated components
• Integration with KSU Cadena
• POC George Edwards (edwardsgt_at_dre.vanderbilt.edu)

6
CoSMIC Tools Federated Event Channels (4/7)

• Federated Event Service Modeling Language (FESML)
• Used to model a federation of event channels
• Modeling entities include the producers,
  consumers, channels, networks, and gateways
• Synthesizes the metadata to configure a federated
  event channel

POC Gan Deng (dengg_at_dre,vanderbilt.edu)
7
CoSMIC Tools Deployment Planning (5/7)

• Model Integrated Deployment and Configuration
  Environment for Composable Software Systems
  (MIDCESS)
• Resolves deployment planning challenges
• Allows modeling artifacts of deployment
  environment, such as nodes, networks, bridges
• Synthesizes deployment plan metadata
• POC Jaiganesh Balasubramanian (jai_at_dre.vanderbilt
  .edu)

8
CoSMIC Tools Benchmarking (6/7)

• CCMPerf is a model integrated test and
  benchmarking suite
• Models application use-case scenarios to
  synthesize desired performance aspects of DRE
  applications
• POC Arvind Krishna (arvindk_at_dre.vanderbilt.edu)

9
CoSMIC Tools Integration with C-SAW (7/7)
Aspect Model Weaving
CoSMIC Packaging Model
CoSMIC Configuration Model
POC Dr. Jeff Gray (gray_at_cis.uab.edu)
Common/Project Library ofBoldStroke C Source
Code
Transformed Bold Stroke Code
DMS
10

• VIDEO of C-SAW INTEGRATED WITH GME
• Video URL

11
Downloads

• Software Releases ACE 5.4, TAO 1.4 (end of
  December 2003)

• Beta and Stable release can be accessed from
  http//deuce.doc.wustl.edu/Download.html

• Software release CIAO 0.3.3 CoSMIC models (end
  of Dec 03)

http//www.dre.vanderbilt.edu/CIAO http//www.dre.
vanderbilt.edu/cosmic

• Software release C-SAW Aspect Model Weaver

http//www.gray-area.org/Research/C-SAW/Contains
papers, downloads, video demos
