Algorithms for a large sparse nonlinear eigenvalue problem

1

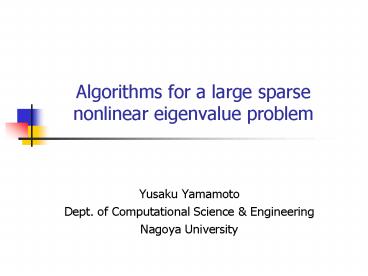

Algorithms for a large sparse nonlinear
eigenvalue problem

• Yusaku Yamamoto
• Dept. of Computational Science Engineering
• Nagoya University

2
Outline

• Introduction
• Algorithms
• Multivariate Newtons method
• Use of the linear eigenvalue of smallest modulus
• Use of the signed smallest singular value
• Numerical experiments
• Conclusion

3
Introduction

• Nonlinear eigenvalue problem
• Let A(l) be an n by n matrix whose elements
  depend on a scalar parameter l. In the nonlinear
  eigenvalue problem, we seek a value of l for
  which there exists a nonzero vector x such that
• l and x are called the (nonlinear) eigenvalues
  and eigenvectors, respectively.
• Examples
• A(l) A lI Linear eigenvalue problem
• A(l) l2 M lC K Quadratic eigenalue
  problem
• A(l) (el 1) A1 l2 A2 A3 General
  nonlinear eigenvalue problem

A(l) x 0.
4
Applications of the nonlinear eigenvalue problem

• Structural mechanics
• Decay system l2 Mx lCx Kx 0
• M mass matrix, C damping matrix, K
  stiffness matrix
• Electronic structure calculation
• Kohn-Sham equation H(l)f lf
• H(l) Kohn-Sham Hamiltonian
• Theoretical fluid dynamics
• Computation of the scaling exponent in turbulent
  flow

5
Solution of a quadratic eigenproblem

• Transformation to a linear generalized
  eigenproblem
• Quadratic eigenproblem can be transformed into a
  linear generalized eigenproblem of twice the
  size.
• In general, nonlinear eigenproblem of order k can
  be transformed into a linear generalized
  eigenproblem of k times the size.
• Efficient algorithms for linear eigenproblems
  (QR, Krylov subspace method, etc.) can be applied.

l2 Mx lCx Kx 0
6
Our target problem

• Computation of the scaling exponent of a passive
  scalar field in a turbulent flow
• Governing equation of the passive scalar y
• n-point correlation function
• Scaling exponent
• We are interested in computing ln in the case of
  n 4.

Turbulent flow
Yn(sx1, sx2, , sxn) sln Yn(x1, x2, , xn)
7
Our target problem (contd)

• The PDE satisfied by Y4
• By writing Y4 sl4F4, we have
• Non-linearity comes from folding the (unbounded)
  domain of (x1, x2, x3, x4) into a bounded one
  using the scaling law.

F Y4 0, where
(l4(l4-1)A l4B C) F4 0 quadratic
eigenproblem
Y4(s, sr1, sr2, , sr5) r1l4 Y4(s/r1, s,
sr2/r1, , sr5/r1 )
8
Our target problem (contd)

• Problem characteristics
• A(l) is large (n 105), sparse and nonsymmetric.
• Dependence of A(l) on l is fully nonlinear
  (includes both exponential and polynomial terms
  in l), but is analytical.
• Computation of A(l) takes a long time.
• The smallest positive eigenvalue is sought.

9
Solution of a general nonlinear eigenproblem

• Necessary and sufficient condition for l
• A simple approach (Gat et al., 1997 the case of
  n 3)
• Find the solution l of det(A(l)) 0 by Newtons
  method.
• Find the eigenvector x as the null space of a
  constant matrix A(l) .
• Difficulty
• Computation of det(A(l)) requires roughly the
  same cost as the LU decomposition of A(l).
• Not efficient when A(l) is large and sparse.

10
Approach based on multivariate Newtons method

• Basic idea
• Regard A(l) x 0 as nonlinear simultaneous
  equations w.r.t. n1 variables l and x and solve
  them by Newtons method.
• Since there are only n equations, we add a
  normalization condition vtx 1 using some vector
  v.

• Equations to be solved
• Iteration formula

11
Multivariate Newtons method (contd)

• Advantages
• Each iteration consists of solving linear
  simultaneous equations.
• Much cheaper than computing det(A(l)).
• Convergence is quadratic if the initial values l0
  and x0 are sufficiently close to the solution.
• Disadvantages
• The iterates may converge to unwanted eigenpairs
  or fail to converge unless both l0 and x0 are
  sufficiently good.
• It is in general difficult to find a good initial
  value x0 for the eigenvector.
• A'(l) is necessary in addition to A(l).

12
Approaches based on the linear eigenvalue
/singular value of smallest modulus

• Definition
• For a fixed l, we call m a linear eigenvalue of
  A(l) if there exists a nonzero vector y such that
  A(l)y my.
• For a fixed l, we call s gt0 a linear singular
  value of A(l) if s 2 is a linear eigenvalue of
  A(l)TA(l).
• Linear eigenvalue / singular value are simply an
  eigenvalue
• / singular value of A(l) viewed as a constant
  matrix.
• m and s are functions of l.
• Necessary and sufficient conditions for l

x 0, A(l) x 0 det(A(l)) 0
A(l) has a zero linear eigenvalue.
A(l) has a zero linear singular value.
13
Approaches based on the linear eigenvalue
/singular value of smallest modulus (contd)

• A possible approach
• Let
• m(l) the linear eigenvalue of smallest modulus
  of A(l),
• s(l) the smallest linear singular value of
  A(l).
• Find the solution l l to m(l) 0 or s(l) 0.
• Find the eigenvector x as the null space of a
  constant matrix A(l).
• Advantages
• Only the initial value for l is required.
• m(l) and s(l) can be computed much more cheaply
  than det(A(l)).
• Use of the Lanczos, Arnoldi, and Jacobi-Davidson
  methods
• A'(l) is not necessary if the secant method is
  used to find l.

14
Approach based on the linear eigenvalue of
smallest modulus

• Algorithm based on the secant method
• Difficulty
• When A(l) is nonsymmetric, computing m(l) is
  expensive.
• Though it is much less expensive than computing
  det(A(l)).

Set two initial values l0 and l1. Repeat the
following until m(ll) becomes sufficiently
small Find the eigenvector x as the null
space of a constant matrix A(ll).
m(l)
ll2
ll
l
ll1
15
Approach based on the smallest linear singular
value

• Possible advantages
• For nonsymmetric matrices, singular values can be
  computed much more easily than eigenvalues.
• Problems
• The linear singular value s(l) of A(l) is defined
  as the positive square root of the linear
  eigenvalue of A(l)TA(l).
• Hence, s(l) is not smooth at s(l) 0.
• The secant method cannot be applied.
• Solution
• Modify the definition of s(l) so that it is
  smooth near s(l) 0.
• Analytical singular value
• Signed smallest singular value

s(l)
l
ll1
ll2
ll
16
Analytical singular value decomposition

• Theorem 1 (Bunse-Gerstner et al., 1991)
• Let the elements of A(l) be analytical functions
  of l. Then there exist orthogonal matrices U(l)
  and V(l) and a diagonal matrix S(l)
  diag(s1(l), s2(l), , sn(l) ) whose elements
  are analytical functions of l and which satisfy
• This is called the analytical singular value
  decomposition
• of A(l).
• Notes
• Analytical singular values may be negative.
• In general, s1(l) gt s2(l) gt ... gt sn(l) does
  not hold.
• Analytical singular values are expensive to
  compute.
• Requires the solution of ODEs starting from some
  initial point l0.

si(l)
A(l) U(l) S(l) V(l)T.
s1(l)
s3(l)
l
l0
s2(l)
17
Signed smallest singular value

• Definition
• Let vn and un be the right and left singular
  vectors of A(l) corresponding to the smallest
  linear singular value sn . Then we call sn sn
  sgn(vnTun) the signed smallest singular value of
  A(l).
• Theorem 2
• Assume that sn(l) is a simple root and
  vn(l)Tun(l) 0 in an interval l0 l
  l1. Then the signed smallest singular value
• sn(l) sgn(vn(l)Tun(l)) is an analytic
  function of l in this interval.
• Proof
• From the uniqueness of SVD, un(l) un(l) and
  vn(l) vn(l) . Hence,
• The right-hand-side is clearly analytical
  when vn(l)Tun(l) 0.

.
.
.
sn(l) sn(l) sgn(vn(l)Tun(l))
sn(l)vnT(l)un(l) / vnT(l)un(l)
vnT(l)A(l)vn(l) / vnT(l)un(l)
vnT(l)A(l)vn(l) / vnT(l)un(l).
18
Approach based on the signed smallest singular
value

• Characteristics of the signed smallest singular
  value sn(l)
• sn(l) 0 sn(l) 0
• sn(l) is an analytical function of l under
  suitable assumptions.
• Easy to compute (requires only sn(l), vn(l) and
  un(l) )
• Algorithm based on the secant method

s (l)
ll2
ll
l
ll1
19
Numerical experiments

• Test problem
• Computation of the scaling exponent in turbulent
  flow
• Matrix size is 35,000 and 100,000.
• Seek the smallest positive (nonlinear) eigenvalue
• It is known that the eigenvalue is in 0, 4, but
  the estimate for the (nonlinear) eigenvector is
  unknown.
• Computational environment
• Fujitsu PrimePower HPC2500 (16PU)

20
Algorithm I Approach based on the linear
eigenvalue of smallest modulus

• Result for n35,000
• Nonlinear eigenvalue 2.926654
• Computational time 35,520 sec. for each value of
  l.
• Secant iteration 4 times

m(l)
l
21
Algorithm II Approach based on the signed
smallest singular value

• Result for n35,000
• Result for n100,000
• Computational time 16,200 sec. for each value of
  l.
• Could not be computed with Algorithm 1 because
  the computational time was too long.

s(l)

• Nonlinear eigenvalue 2.926654
• Computational time
• 2,005 sec. for each value of l.
• (1/18 of Algorithm 1)
• Secant iteration 4 times

l
22
Conclusion

• Summary of this study
• We proposed an algorithm for large sparse
  nonlinear eigenproblem based on the signed
  smallest positive singular value.
• The algorithm proved much faster than the method
  based on the linear eigenvalue of smallest
  modulus.
• Future work
• Application of the algorithm to various nonlinear
  eigenproblems
