Title: Abaqus%20Setup
1

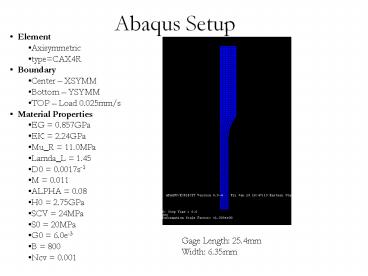

Abaqus Setup
- Element
- Axisymmetric
- typeCAX4R
- Boundary
- Center XSYMM
- Bottom YSYMM
- TOP Load 0.025mm/s
- Material Properties
- EG 0.857GPa
- EK 2.24GPa
- Mu_R 11.0MPa
- Lamda_L 1.45
- D0 0.0017s-1
- M 0.011
- ALPHA 0.08
- H0 2.75GPa
- SCV 24MPa
- S0 20MPa
- G0 6.0e-3
Gage Length 25.4mm Width 6.35mm
2
Abaqus Results
Onset of necking Strain 0.09
3
Abaqus Results
Strain 0.13
4
Abaqus Results
Strain 0.20
5
Abaqus Results
Strain 0.40
6
Abaqus Results
Strain 0.60
