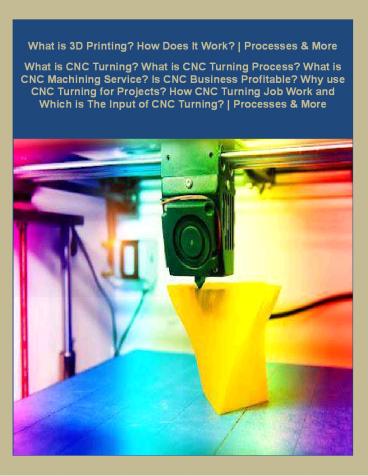

What is 3D Printing? How Does It Work?
Processes More What is CNC Turning? What is CNC
Turning Process? What is CNC Machining Service?
Is CNC Business Profitable? Why use CNC Turning
for Projects? How CNC Turning Job Work and Which
is The Input of CNC Turning? Processes More
2

• Braddock's Machine Turned into Reality - Far, far
  away, multiple billions of miles in empty space,
  Things moved towards our Sun. They were arranged
  as a warlike space fleet. There were scouts and
  advanced guards fanned out ahead. Things were
  moving at an inconceivable speed. Two scout
  patrols have already passed through our solar
  system and it has led to two cosmoquakes that
  have caused damage to the earth. Things have no
  idea whats happening on earth. As more scouts
  approach the solar system, it will destroy
  civilization.
• Three men and a girl were at work to save the
  earth. Braddick - an inventor, Thorn - a
  technician, Hamlin - a useless guy and Jane - a
  draftsman. Braddick wants to build a spaceship so
  that he can persuade Things to change their
  course. Braddick has got an impossible job in his
  hand. Braddick tells Thorn and Hamlin that
  machining can produce a particular part cheaper
  than any other method can do but when the product
  is changed, the machine is useless because
  efficiency is obtained at the cost of flexibility
  and thats why there arent any mass production
  machines for ships.
• Braddick shows Thorn and Hamlin, the Constructor
  which he has built and is more efficient and
  flexible than machine-tool. The Constructor has
  a moving arm. Plastics are fed and as it comes
  out of the moving arm, it hardens. The
  Constructor follows the drawings shown to it and
  then the moving arm starts drawing in the air.
  The Constructor will construct the ship in the
  same way as an insect spins the cocoon. The
  result will be a ship made of plastic as strong
  as steel but vastly lighter than steel.
• From Things Pass By, written by Murray Leinster -
  3D printing services
• What was once science fiction is now a reality.
  Today these Constructors are called 3D Printers
  and the process of manufacturing as 3D Printing.
  How is this science fiction converted into
  reality? What is a 3D Printer? What can be done
  with 3D Printing Services? What are its
  advantages and disadvantages? The article
  answers these questions.
• - Table of Contents
• What is 3D Printing Services?
• What is a 3D Printer?
• What is the process of providing instructions to
  a 3D Printing Services?
• What can we do with 3D Printing services?

3

• What is 3D printing and What is 3D Printing
  Services?
• 3D printing Services is the idea of manufacturing
  a 3-dimensional object unconventionally. 3D
  Printing has not replaced the traditional/convent
  ional methods. It is just an alternative to the
  traditional method. As shown in Fig 1.
  Individual laminae representing the
  cross-sections of the object have to be formed.
  Then the adjacent laminae need to be combined to
  form the 3-dimensional object.
• 3D Printing Services Overview
• The idea of 3D printing
• People have found 7 different ways to make this
  idea possible.
• Vat Photopolymerization
• When certain liquids are exposed to the beams of
  radiation, the liquid converts itself into a
  solid. This process is known as curing. This
  property of liquid is used to achieve 3D printing
  Services. There will be individual laminae made
  up of this liquid. Only a specific portion of the
  laminae will be solidified to produce the desired
  object.

4

• What is 3D Printing Services
• Photopolymerization process for 3D printing
  Services
• Apparatus for Photopolymerization and its
  working
• The Apparatus Includes
• Vat It is a container that contains the liquid.
  Radiation source Light is the source. Elevator
  platform It is a platform on which the object
  is built.
• - Top-Down approach
• Bottom-Up approach
• Powder Bed Fusion (PBF)
• In PBF each lamina is in powdered form. A
  specific portion of laminae is converted to solid
  i.e the goal is to convert the powder into
  solid. This can be achieved by two methods
• Sintering The powder will be heated in such a
  way that the particles will cluster/fuse together
  at the molecular level. The powder must be
  heated below its melting point. There is no phase
  change during sintering.

5

• Sheet Lamination The individual laminae are
  composed of a sheet. For the first layer, a thin
  sheet of material is placed on the build
  platform. Depending on the type of sheet
  lamination, the next layer may or may not be
  bonded to the first layer. There are two types
• Form then Bond Sheet material is first to cut
  into shape and then bonded to the base or
  previous layer.
• Bond then Form Sheet material layers are bonded
  together before cutting them into the desired
  shape.
• In the previous methods, a lamina was taken and
  an object was created by curing, sintering,
  melting, binding, or cutting specific portions
  of laminae. In the next 3 methods, the specific
  portion will be directly created and then each
  portion will be stacked to create a 3D object.
• Material Jetting For the first layer, a liquid
  photopolymer is deposited on the platform. Then
  the layer is cured using UV light. The platform
  is lowered down and the process is repeated till
  the 3D Object is formed. In material jetting,
  support structures are also printed to support
  overhang features.
• Material Extrusion To create a layer, a nozzle
  extrudes the heated filament of the material and
  traces the cross-section of the layer by
  depositing the heated filament. The layer cools
  down and the procedure is repeated for
  subsequent layers until a 3D object is built.
  Support structures are printed to support the
  overhang features.
• Directed Energy Deposition (DED)
• DED apparatus includes directed energy and
  nozzles. The directed energy can be laser,
  electron beam, or plasma arc. The material
  ejected by the nozzle can be in wire or powder
  form. To create a layer, the cross- section of
  the layer is traced by depositing a molten pool
  of the material. The nozzle continuously ejects
  the material towards the focal point of the
  directed energy. This results in a molten pool of
  material and the pool is then moved to trace the
  cross-section. The process is repeated until the
  3D Object is built.
• What is a 3D printer?
• It is a machine that performs 3D Printing
  Services and Process to produce a 3D object.

6
The main components of 3D Printing Services are

• Build Platform It is the surface where 3D
  Objects are built. Build Platform is also known
  as build plate or bed.
• Printing Head The printing head holds the energy
  source (laser, UV, etc), the printing jet or the
  hot end of the extruder.
• Controller Board It executes the instructions
  fed to the 3D Printing Services.
• Motion Components The components include a
  stepper motor, belt and leadscrew. With the help
  of these components, the build platform and
  printing head can perform motion along the X,Y
  and Z axis. What is the process of providing
  instructions to a 3D Printer? The 3D Printer
  needs to be instructed to produce the 3D Object.
  A set of instructions needs to be prepared in a
  language understood by 3D Printer. The steps
  involved in this process are

7

• CAD Model File Prepare the CAD file of the 3D
  Object to be produced.
• Conversion Convert to file formats that can be
  used by slicer software. Ex STL, OBJ, AMF, VRML,
  3MF, etc.
• Slicing Import the converted file into slicer
  software. The software slices the 3D Object into
  layers and automatically generates the
  instruction file for 3D Printer.
• Instruction File The formats for the instruction
  file can be G-Code, X3D, S3G, CBDDLP, etc.

• What can we do with 3D Printing Services?
• Build a sustainable future, For the first time in
  the history of the Olympic Games, the podiums for
  awarding medals were made up of recycled
  plastic. PG, the Tokyo 2020 Organising Committee
  and the International Olympic Committee
  established the Podium Project. In the course of
  nine months, the Japanese public donated 24.5
  tonnes of discarded plastic. The plastics were
  recycled to be used as a resin for 3D Printing of
  the podium. 3D Printing Services can be used to
  convert existing plastic products into a new
  product rather than discarding plastics or
  throwing plastics into water bodies.
• Recreation activities for 3D Printing Services
• Lewis Holden, an industrial designer from
  Attleborough has built an ergonomic cricket
  bowling machine with zero electrical components.
  The machine named Ovafly is manufactured using 3D
  Printing Technology. The machine can be used for
  indoor and outdoor practice. Check out how the
  machine was developed.
• Exploration for 3D Printing Services
• In May 2020, NASA astronaut Andrew Morgan
  completed the first functional 3D Bioprinting
  experiment in space. He printed a human knee
  meniscus. Bioprinters work in the same way as a
  3D Printer but instead of delivering materials
  such as metal, plastic, etc. they deposit layers
  of biomaterial such as living cells. This
  research conducted at the International Space
  Station is a part of a long-term plan to
  manufacture human organs in space.

8
- 3D Printing Services use for Fashion Spanish
fashion brand ZER Collection manufactures
reusable 3D Printed garments. The material for
manufacturing the garments is TPU. According to
the co-founders, around 20 to 30 percent fabric
is wasted in the cutting process. By using a 3D
Printer we can produce the cloth with only the
required amount of fabric. It reduces the waste
to almost zero. Also, when the client doesnt
want the garment anymore, the client can return
the garment to the manufacturer. The garment can
be melted and reused again.
- 3D Printing Services Build props to support a
theme By using 3D Printing, props can be
produced to support a theme. An example is
Tomorrowland's 2016 music festival. The theme
for the year 2016 was The Elixir of Life. The
theme had a heavy focus on nature. The theme
required a magical ring to be used as a prop in
a video trailer. The design of the ring mimics
the roots of a tree growing together. A
Belgium-based 3D Printing in Delhi company has
printed the ring. Although the ring has a minor
role in the video, it helped to complement the
theme.
- Make ceremonies special and unique Erin
Winick, associate editor at MIT Technology Review
has used 3D Printing to customize her wedding
ceremony. She used 3D Printing Services to make
her headband, bouquets for herself and the
bridesmaids, all the table numbers, the cake
topper, the floral cake decoration and the flower
girls necklace. She owned two 3D Printers.
Therefore making these things required only a
small amount of investment. In total she
spent 75 on all bouquets. She says that the
average cost of a brides bouquet alone is 150
and each additional bridesmaids arrangement is
about 75 and thats a bargain with using 3D
printing. She also says that 3D Printed items
have a personal touch that we dont get from
purchasing something at a store.
9
Advantages and Disadvantages of 3D Printing
Services Process

• Interested in using the 3D Printing Services
  Process? Consider advantages disadvantages
• Advantages of 3D Printing Services
• Rapid Prototyping The cycle time involved in
  prototyping can be reduced using 3D Printing
  Pune. With subtractive manufacturing, tooling
  and logistics will come into play for every new
  design. 3D Printing Technologies remove the need
  for tooling and hence the idea can be directly
  taken from a design file and converted to a
  tangible prototype. Also, changes can be easily
  made by updating a product's CAD file and hence
  iterations can be produced rapidly.
• Sustainability It is possible to implement the
  3Rs for the 3D Printing Process. Also, the design
  process is carried out on a computer and hence
  the blueprint is digital in nature. These
  blueprints can be transferred digitally and
  parts can be printed nearby, onsite or at home.
  This decreases the need for shipping final
  products and raw materials over long distances.
  Thus it reduces carbon-dioxide emissions.
• Part Consolidation Using 3D Printing, the entire
  assembly can be printed as a single piece. The
  advantage of parts consolidation can be taken to
  squeeze major cost savings from assembling the
  parts. An example is set by GE.
• Disadvantages of 3D Printing Services
• High Energy Consumption 3D Printers consume 50
  to 100 times more energy than injection molding
  when melting plastic with heat or laser. DMLS
  uses 100 times more energy than traditional
  manufacturing. For mass production, 3D Printing
  Pune will consume a lot of energy and hence they
  are suitable for batch production.
• Cost of buying and setting Cost of initial setup
  is high. A top end 3D Printing device can cost
  anything between 300,000 and 2 million. Even
  consumables can cost between 100 to 200 for
  every pound consumed.

10
Harmful Emissions According to researchers at
Illinois Institute of Technology, 3D Printers
used in enclosed spaces can generate
carcinogenic and potentially toxic emissions.
Their study showed that 3D Desktop Printers
emitted 20 billion ultrafine particles per minute
using PLA filament and ABS emitted upto 200
billion particles per minute. Emitted radiations
may settle in the bloodstream or lungs posing
health risks. Conclusion. The 3D Printing
Services and Process is truly efficient and
flexible when a customized product needs to be
manufactured. Traditional rules are no longer a
barrier and the features and geometries of a
product can be changed for every new quantity.
The 3D Printing Process provides a power to the
individual to convert envisioned products into
tangible products. This process can be utilized
for building creative products and to create an
environment of invention and innovation.
Read More About CNC Turning Services.
11
With CNC turning services, tooling is mounted
onto a computer-controlled turret. once operative
a shop, preciseness CNC turning could be a
specific technique used whereby a pointed cutlery
feeds parallel onto the surface of fabric being
revolved. For rotation, a shaper is employed,
that secures and spins the a part of the fabric
being machined. Therefore, with cnc turning
services, the single-point cutlery removes and
shapes the fabric into the specified half. For
CNC returning Ohio from NexGen Machine, we have a
tendency to use a twin axis of movement, that
might be a line or complicated angles and curves.
Our preciseness CNC turning centre creates a
range of shapes, as well as tapered, contoured,
plain, threaded, radius, and filleted. With a CNC
drilling machine, we offer custom CNC Al
elements and elements in varied size batches. the
lowest line Our custom CNC turning meets the
wants of each client. CNC turning services and
machines square measure one in all the economical
tools for producing trade and each manufacturer
will broad their business through this technique.
There square measure loads of benefits of
victimization this technology in producing. CNC
turning Services machines keep you earlier than
the business In the regular competitive market,
business concern is challenge for each new and
recent one. There square measure variety of
firms within the game that providing similar
services at most cost-effective worth to
customers that may usually be swayed by these
firms. they're very most advanced services
supplier and providing fast turnaround times.
CNC machining is thought as pc controlled,
they're way more skillful at production than
ancient common systems. If you're concerned
during this business and seeking for big
contracts or agreements with different firms,
then there are not any different resolution than
knowing that you just have the new-edge
technology to fulfill the requirement and demand.
it'd be a dispiriting condition if you could not
attack a giant project as a result of you're
unable to facilitate the assembly
procedures. Here one will manufacture with
accuracy. By victimisation cnc turning services
and machines manual turners and millers is very
higher at what will do, hence, it's extremely
unlikely that they will match the additional
engineering of CNC truth. With handling by pc the
turning and edge procedure might immensely widen
your business prospects. The services suppliers
or makers that need to very precise and
sophisticated styles, like those within the aid
sector, cannot afford to accumulate elements that
square measure something however good. after you
use this new technology then you will be capable
to an outsized amount of same precise elements,
while not having to stress concerning the chance
of individual fault.
12
By victimisation this each businessperson will
cut back prices and increase profits. CNC turning
services and machines aren't thus cheaper,
however a businessperson can purchase it through
procure a brief quantity. If you presently have
your machining done yourself, then you'll be able
to pay remaining quantity on monthly basis. this
can not solely cut back the price on production
however additionally time. CNC is basically long
and cost-cutting technology through the
perimeters. If you're trying to find purchase the
machine then think about on initial purchase of
machining and make sure the device that you just
trying to find right and error-free. this can be
real choice for increase the assembly.
