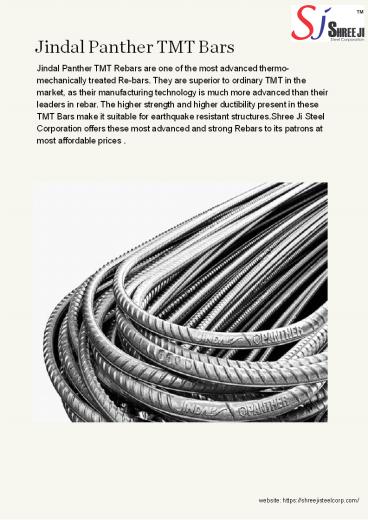

Jindal Panther TMT Bars
Jindal Panther TMT Rebars are one of the most
advanced thermo- mechanically treated Re-bars.
They are superior to ordinary TMT in the market,
as their manufacturing technology is much more
advanced than their leaders in rebar. The higher
strength and higher ductibility present in these
TMT Bars make it suitable for earthquake
resistant structures.Shree Ji Steel Corporation
offers these most advanced and strong Rebars to
its patrons at most affordable prices .
website https//shreejisteelcorp.com/
2
Brand Single Piece Length Material
Grade Material Application Features
Jindal Panther 12 meter IS 1786/2008 Mild
Steel Construction Ensured Quality
website https//shreejisteelcorp.com/
3
Vizag TMT Bar Sizes and Weights Vizag TMT Bar Sizes and Weights Vizag TMT Bar Sizes and Weights Vizag TMT Bar Sizes and Weights Vizag TMT Bar Sizes and Weights
Size (in mm) Weight ( in Kg/m) Weight (in kg/feet)
Jindal TMT Bar 8mm 0.395 0.120
Jindal TMT Bar 10mm 0.617 0.188
Jindal TMT Bar 12mm 0.890 0.271
Jindal TMT Bar 16mm 1.580 0.482
Jindal TMT Bar 20mm 2.470 0.753
Jindal TMT Bar 25mm 3.850 1.173
Jindal TMT Bar 28mm 4.830 1.472
Jindal TMT Bar 32mm 6.310 1.923
website https//shreejisteelcorp.com/
4
Chemical Properties of Jindal TMT Bars
Chemical Composition Of Jindal TMT Bars The raw
material (Billets) which are used for making
Bars must have the following chemical
composition which we make sure is present in the
bars we provide.
Components
Carbon ()
0.22 - 0.25
Silicon ()
0.15 - 0.25
Manganese ()
0.95 - 1.05
Sulphur Max ()
0.03
Phosphorus Max ()
0.03
Sulphur Phosphorus Max ()
0.055
Carbon Equivalent ()
0.35 - 0.41
website https//shreejisteelcorp.com/
5
Mechanical Properties of Jindal Panther TMT Bars Mechanical Properties of Jindal Panther TMT Bars Mechanical Properties of Jindal Panther TMT Bars Mechanical Properties of Jindal Panther TMT Bars Mechanical Properties of Jindal Panther TMT Bars
Sizes Yield Strength (N/mm2) Tensile Strength( N/mm2) (min) UTS/YS Ratio Elongation (min)()
Jindal Panther 6mm 575 645 1.12 16
Jindal Panther 8mm 575 645 1.12 16
Jindal Panther 10mm 575 645 1.12 16
Jindal Panther 12mm 575 645 1.12 16
Jindal Panther 16mm 575 645 1.12 16
Jindal Panther 20mm 575 645 1.12 16
Jindal Panther 25mm 575 645 1.12 16
Jindal Panther 28mm 575 645 1.12 16
Jindal Panther 32mm 575 645 1.12 16
Jindal Panther 36 mm 575 645 1.12 16
Jindal Panther 40 mm 575 645 1.12 16
