Title: MS Hex Nut

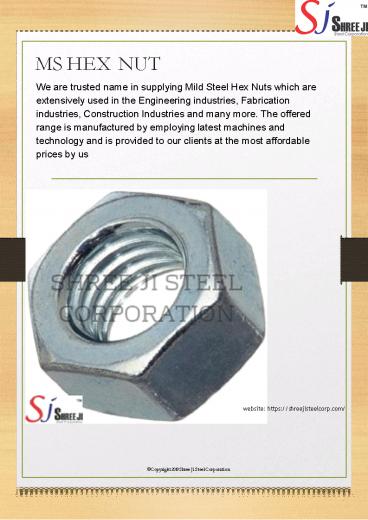

1
MS HEX NUT
We are trusted name in supplying Mild Steel Hex
Nuts which are extensively used in the
Engineering industries, Fabrication industries,
Construction Industries and many more. The
offered range is manufactured by employing
latest machines and technology and is provided
to our clients at the most affordable prices by
us
website https//shreejisteelcorp.com/
2
WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART
MS Hex Nut Nominal Size (in inches) Width Across Flat Thickness Approx count per 50Kgs
¼ 7/16 7/32 17224
5/16 ½ 17/64 9570
3/8 9/16 21/64 6221
7/16 11/16 3/8 3635
½ 3/4 7/16 2268
9/16 7/8 31/64 1600
5/8 15/16 35/64 1205
¾ 1-1/8 41/64 723
7/8 1-5/16 ¾ 592
1 1-1/2 55/64 398
1-1/8 1-11/16 31/32 275
1-1/4 1-7/8 1-1/16 192
1-3/8 2-1/16 1-11/64 140
1-1/2 2-1/4 1-9/32 110
1-5/8 2-7/16 1-25/64
1-3/4 2-5/8 1-39/64 68
1-7/8 2-13/16 1-1/2
2 3 1-23/32 60
2-1/4 3-3/8 1-59/64 39
2-1/2 3-3/4 2-9/64 28
2-3/4 4-1/8 2-23/64
website https//shreejisteelcorp.com/
3
WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART WEIGHT CHART
MS Hex Nut Nominal Size (in inches) Width Across Flat Thickness Approx count per 50Kgs
3 4-1/2 2-37/64 17
3-1/4
3-1/2
3-3/4
4
website https//shreejisteelcorp.com/
4
MS Hex Nut BSW Size (in mm) Approx count per 50Kgs
4 75000
5 47000
6 21500
8 10080
10 4710
12 3025
14 2150
16 1620
18 1110
20 855
22 695
24 500
27 322
30 235
33 196
36 140
39 108
42 82
45 70
48 56
56 38
60 32
website https//shreejisteelcorp.com/
5
MS Hex Nut BSW Size (in mm) Approx count per 50Kgs
63 25
70 23
75 20
80 15
90 11
100 8
website https//shreejisteelcorp.com/
6
THANK YOU
  • website https//shreejisteelcorp.com/
