Title: R. D. Mould & Industry Profile


1

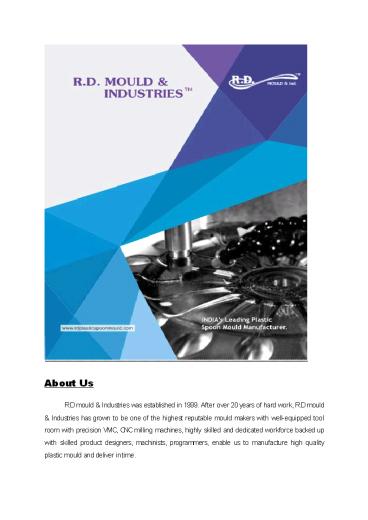

About Us R.D mould Industries was established
in 1999. After over 20 years of hard work, R.D
mould Industries has grown to be one of the
highest reputable mould makers with well-equipped
tool room with precision VMC, CNC milling
machines, highly skilled and dedicated workforce
backed up with skilled product designers,
machinists, programmers, enable us to manufacture
high quality plastic mould and deliver in time.
2
R.D mould Industries is located in Ahmedabad,
Gujarat, India. We are one of the prime plastic
mould manufacturers for all types of disposable
spoon mould, food containers household articles,
Pharmaceutical items , industrial parts ,
agriculture items etc. With the guidance and
assistance of our mentor Mr. Rajesh Dudhat, We
have a very impressive, long associated customer
base spread all across India and worldwide. We
export Moulds to customers in Asian Countries,
Gulf countries and Africa continent.
Our Infrastructure
  • According to our vast experience we have
    established well infrastructural base which is
    associated with highly advance amenities. Our
    infrastructural base is spread into units like
    Quality Assurance, R D, Production,
    Administration, marketing Sales etc. we also
    have an unit for new comer who wants to embark
    new business our unit help them to provide all
    guidance about preferable machineries and
    material and its availabilities we also help them
    to provide short time training session like how
    to operate machine and maintain it
  • Mould Making Process
  • As a good reputed manufacturer in India, we share
    the basic injection mould making process in our
    company
  • EVALUATION
  • Product design department provides product
    information to injection mould design
    department, injection mould designers complete
    cost analysis in two working days, and provide
    to R D manager
  • R D department release Mould Making Apply to
    plastic injection mould design
  • department after confirmed the project.
  • Injection mould designers organize relevant
    personnel to review the project base on the
    product information, including product structure,
    mould structure, cooling system runner, slang,
    venting, etc.
  • MOULD DESIGN
  • After evaluation, injection mould designer begin
    to design the plastic injection mould, including
    3D drawing correction, 3D parting , mould parts
    assembly drawing , EDM Drawing

3
  • Electrode Drawing etc., and organize relevant
    personnel to evaluate those drawings , then
    issue to plastic injection mould making
    department.
  • MATERIAL ORDER
  • Injection mould makers evaluate and study the
    drawings, and order mould materials if there is
    no objection, otherwise communicate with the
    plastic injection mould designers.
  • MATERIAL INSPECTION
  • Injection mould maker inspect the mould materials
    in time after the material arrive to the
    factory, and arrange technicians to do locksmith
    works, include turning , grinding, milling ,
    screw holes, water carrying hole, center hole,
  • VMC WORK
  • After material inspection next step would be VMC
    machining we have high precision VMC Machines.
    The technician pay attention to the precision of
    each right angle sides, avoid empty of the
    center hole and each production base.

PRE TRIAL PROCESS 8. In tryout, injection mold
designers ,plastic mould makers and other
personnel should go to the site , making
analysis and solution of abnormal in tryout, and
fill mold Tryout Report While tryout cycle
time the products are defect-free Our creative
team is pay attention to minimize all common
molding defects as as below
Keep these factors in mind when designing your
injection moulded part, and remember that it is
easier to avoid problems in the beginning than
change your design down the line.
Molding Defects Alternative Name Descriptions Causes
Blister Blistering Raised or layered zone on surface of the Plastic part Tool or material is too hot, often caused by a lack of cooling around the tool or a faulty heater
Burn marks Air Burn/Gas Burn Black or brown burnt areas on the plastic part located at furthest points from gate Tool lacks venting, injection speed is too high
4
Color streaks (US) Localized change of color Plastic material and colorant isn't mixing properly, or the material has run out and it's starting to come through as natural only
Delamination Thin mica like layers formed in part wall Contamination of the material e.g. PP mixed with ABS, very dangerous if the part is being used for a safety critical application as the material has very little strength when delaminated as the materials cannot bond
Flash Burrs Excess material in thin layer exceeding normal part geometry Tool damage, too much injection speed/material injected and clamping force too low. Can also be caused by dirt and contaminants around tooling surfaces.
Embedded contaminates Embedded particulates Foreign particle (burnt material or other) embedded in the part Particles on the tool surface, contaminated material or foreign debris in the barrel, or too much shear heat burning the material prior to injection
Flow marks Flow lines Directionally "off tone" wavy lines or patterns Injection speeds too slow (the plastic has cooled down too much during injection, injection speeds must be set as fast as you can get away with at all times)
Jetting Deformed part by turbulent flow of material Poor tool design, gate position or runner. Injection speed set too high.
Polymer degradation polymer breakdown from oxidation, etc. Excess water in the granules, excessive temperatures in barrel
Sink marks Localized depression (In thicker zones) Holding time/pressure too low, cooling time too short, with sprueless hot runners this can also be caused by the gate temperature being set too high
Short shot Non-Fill/Short Mold Partial part Lack of material, injection speed or pressure too low
Splay marks Splash Mark/Silver Streaks Circular pattern around gate caused by hot gas Moisture in the material, usually when resins are dried improperly
Stringiness Stringing String like remain from previous shot transfer in new shot Nozzle temperature too high. Gate hasn't frozen off
Voids Empty space within part (Air pocket) Lack of holding pressure (holding pressure is used to pack out the part during the holding time). Also mold may be out of registration (when the two halves don't centre properly and part walls are not the same thickness).
Weld line Knit Line/Meld Line Discoloured line where two flow fronts meet Mold/material temperatures set too low (the material is cold when they meet, so they don't bond)
Warping Twisting Part Distorted part Cooling is too short, material is too hot, lack of cooling around the tool, incorrect water temperatures (the parts bow inwards towards the hot side of the tool)
5
OUR COMMITMENT Baked by a state of the art
infrastructure facility, we are able to meet the
qualitative and quantitative demands of our
valuable clients. We use all entire available
resources in efficient manners in order to
minimize the production cost. Owning to our
transparent bossiness dealing and timely
delivery of consignments, we have been able to
gain the trust of our honorable customers. Our
entire team is committed to deliver order in time.
OUR VISION We look forward for the providing
one-stop solution to all the mould and die
requirements. Achieve business growth through
customer satisfaction by providing reliable
business association in each and every step,
mentioned above, keeping I mind quality work,
timely response and cost effectiveness. Our
vision to be worlds most customer centric
company to build a place where people can come
to find and discover anything they might want in
injection mould. CUSTOMIZATION AND AFTER SALE
SUPPORT We strive to attain satisfaction of our
client. So, we are efficaciously equipped with
all the necessary facilities that are vital to
offer the customization service. We design and
develop our products as per the specifications
of our clients. We offer our products with the
assurance of genuine quality and
performance. In additional to these, we also
provide after sale support to our clients. In
this , we provide efficient training to embark
new business and also help our client to set up
new business by providing the guidance of
preferable machines , material, operating tips
and how to maintain it. Why Us? Owing to our
offered excellent quality products, we have
become the foremost choice of our esteemed
clients. Some of the noticeable factors we have
which we have gained a prominent position in the
industry are as follows
6
  • Skillful team of professional
  • Advance infrastructure
  • Timeliness
  • Affordable rates
  • Transparent dealing
  • Prompt delivery

BASIC INFORMATION
Nature of Business
Manufacturer
Additional Business
Trader
Company Owner
Mr. Rajesh Dudhat
34, Arihant Estate, Odhav Ring Road,
Odhav-Kathwada, Ahmedabad-382415 (Gujarat) 20
Peoples
Register Address
Total Number of Employees
Year of Establishment
1999
Legal Status of Firm
Proprietorship Firm
Annual Turn Over
Rs. 50Lakh 1 Crore
GST NO CONTACT US R.D MOULD INDUSTRIES 34,
Arihant Estate, Odhav Ring Road Circle, Odhav-
Kathwada, Ahmedabad-382415. 91 9377761062
