Automatic Water Level Controller

1

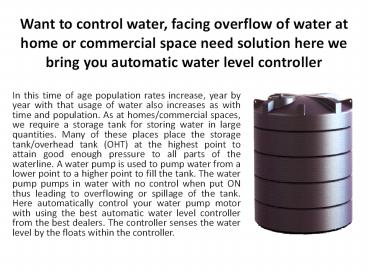

Want to control water, facing overflow of water
at home or commercial space need solution here we
bring you automatic water level controller

• In this time of age population rates increase,
  year by year with that usage of water also
  increases as with time and population. As at
  homes/commercial spaces, we require a storage
  tank for storing water in large quantities. Many
  of these places place the storage tank/overhead
  tank (OHT) at the highest point to attain good
  enough pressure to all parts of the waterline. A
  water pump is used to pump water from a lower
  point to a higher point to fill the tank. The
  water pump pumps in water with no control when
  put ON thus leading to overflowing or spillage of
  the tank. Here automatically control your water
  pump motor with using the best automatic water
  level controller from the best dealers. The
  controller senses the water level by the floats
  within the controller.

2

• Digital point home automation service in
  Kottayam provide you the best services for
  automatic water level controller. Now there is no
  need for manually switching on the motor giving
  simple easy effortless solution to your problems.


3
Automatic water-level controller circuit

• Each of the sensors floats is suspended
  from the top using an aluminium rod. This
  arrangement is enclosed in a PVC pipe and fixed
  vertically on the inside wall of the water tank.
  Such sensors are more reliable than
  induction-type sensors. Sensor 1 senses the
  minimum water level which is at the low level of
  the water tank, while sensor 2 senses the maximum
  water level at the high level of the water
  tank(see the figure). Leaf switches at a low
  level and high level (used in tape recorders) are
  fixed at the top of the sensor units in such a
  way that when the floats are lifted, the attached
  5mm dia. (approx.) aluminium rods push the moving
  contacts of leaf switches at a low level and high
  level from normally closed (N/C) position to
  normally open (N/O) position. Similarly, when the
  water level goes down, the moving contacts
  reverse back to their original positions. These
  products are provided at home automation products
  in Kottayam.
•

4
Construction and testing

• As each of the float sensor units can be
  assembled at home as they are identical sensors
  to each other but except for their lengths are
  different. Based on the depth of the water tank
  from top to the opening of a water pipe can be
  taken as the length of the minimum-level for the
  sensing unit. The depth of the water tank from
  top to the level where max capacity reached or
  lesser than that is taken as the length of the
  maximum-level sensing unit. The leaf switches are
  fitted at the top of the tank.
• Each of the pipes is closed at both ends
  by using two caps over it. A 5mm diameter hole is
  drilled at the centre of the top cap so that the
  aluminium rod goes through it easy to select the
  contact of leaf switches. Similarly, a hole is to
  be drilled at the bottom cap of the pipe so as
  water can enter the pipe to lift the float.
• When the water reaches the set limit
  level, the floats stop and want to go up more
  than the required distance for pushing the moving
  contact of the leaf switch to the normally open
  position. Or else the pressure on the float may
  lead to failure of the leaf switch itself. The
  length of the aluminium rod is set accordingly
  for the purpose. It should be attached to the
  metal/thermocol float using some glue. Digital
  point provide the best home automation products
  in Kollam.

5
Benefits

• As in this time of age digitization and
  automation is the future to a better lifestyle.
  Almost everything around us is being depended on
  automation where all the latest technology fixed
  in it. Here automatic water level controller
  comes in our daily life where avoiding wastage of
  water As the name tells you its an automatic
  device that can be used to control or check the
  level of water at all times and our motor or
  pumps can be managed accordingly.
• This application can be very useful in
  industrial, domestic, commercial agricultural
  fields. Industries involving liquids like soft
  drinks industries, water refilling industries,
  petroleum companies and many more. They can use
  the automatic level controller while filling for
  any type of liquids in the tank. Through this
  process, the tank is filled correctly and loss of
  water is avoided.
• In agricultural fields, this applicant can play a
  crucial role in watering the fields and saving a
  lot of water from any wastage. Farmers can use
  these systems to water their fields without the
  need for physical presence in the fields.
  Similarly, it is an important device for domestic
  purposes, like in water tanks and underground
  tanks where it is very difficult to monitor the
  level of water. This machine allows the user to
  see the level of water so accordingly pumps can
  be switched on or switched off.

6
General features

• This device of automatic water level
  controller can change based on the purpose of
  use. It can play as a level indicator or fully
  automatic which is used in this time of age.
  Using the automatic one as it switches on the
  water pump when there is need of water in the
  tank and switches it off when the tank gets to
  max limits. The best thing about this device is
  that the motor/ water pump is automatically
  switched on when the level of water in the tank
  is below a certain level (say25) and turned off
  when the underground tank gets empty or the
  overhead tank gets filled up.
• The best thing is that customers can even
  set this device timely, this means that there are
  some locations where water supply is time bounded
  it comes one hour in the morning and evening.
  Automatic water level controller can be tweaked
  for pumping at set timing. It will automatically
  get on at the time water comes and fill the tank
  as per the required need. This will ensure your
  water need is fulfilled and wastage is avoided.

7
Advantages of using the automatic water level
controller in our daily life

• Electricity Motor or our pumps will only run for
  a fixed time, so the overuse of electricity will
  be saved and this will also reduce the
  electricity bills.
• The overflow of tanks Giving accurate knowledge
  about the level of water in tanks by the
  automatic water level controller will never allow
  water to overflow.
• Seepage problems Excess flowing water causes
  seepage problems on roofs which can cause failure
  to the structure. By controlling overflow it will
  stop all the seepage problems.
• Increases the life of pumps Damage may occur to
  pumps if operated dry. By this device, you will
  be able to understand when the underground tank
  gets empty. This will prevent operating the dry
  pump.
• No Human Interference required the automatic
  water level controller does not require any sort
  of human interaction as the motor/pump is
  automatically switched on and off depending upon
  the level of water in the tank.
