Title: Double Decker Exhibition Stands Design London.


1

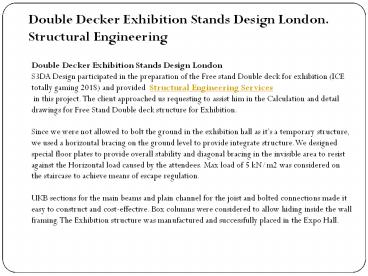

Double Decker Exhibition Stands Design London.
Structural Engineering
Double Decker Exhibition Stands Design
London S3DA Design participated in the
preparation of the Free stand Double deck for
exhibition (ICE totally gaming 2018) and provided
 Structural Engineering Services  in this
project. The client approached us requesting to
assist him in the Calculation and detail drawings
for Free Stand Double deck structure for
Exhibition. Since we were not allowed to bolt
the ground in the exhibition hall as its a
temporary structure, we used a horizontal bracing
on the ground level to provide integrate
structure. We designed special floor plates to
provide overall stability and diagonal bracing in
the invisible area to resist against the
Horizontal load caused by the attendees. Max load
of 5 kN/m2 was considered on the staircase to
achieve means of escape regulation. UKB sections
for the main beams and plain channel for the
joist and bolted connections made it easy to
construct and cost-effective. Box columns were
considered to allow hiding inside the wall
framing. The Exhibition structure was
manufactured and successfully placed in the Expo
Hall.
