Title: Tactical Targeting Network Technology ( TTNT ) Training


1

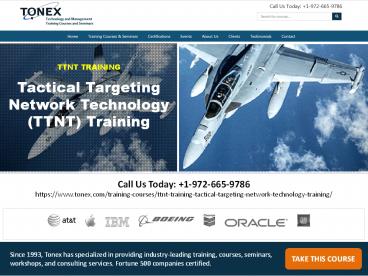

TTNT TRAINING Tactical Targeting Network
Technology (TTNT) Training
Call Us Today 1-972-665-9786 https//www.tonex.c
om/training-courses/ttnt-training-tactical-targeti
ng-network-technology-training/
TAKE THIS COURSE
Since 1993, Tonex has specialized in providing
industry-leading training, courses, seminars,
workshops, and consulting services. Fortune 500
companies certified.
2
(No Transcript)
3
TONEX TRAINING TTNT TRAINING Tactical
Targeting Network Technology Call Us Today
1-972-665-9786
2 Days Course
TAKE THIS COURSE
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
4
Tactical Targeting Network Technology Training,
TTNT Training TTNT Training, Tactical Targeting
Network Technology Training covers all aspects
of Department of Defense (DoD)s TTNT waveforms
for use in air-to-air networks of high-speed
aircraft at 17551850 MHz which is currently used
and shared by commercial LTE/LTE-A cellular
users. Tactical Targeting Network Technology
(TTNT) represents a  secure, robust and low
latency IP-based TDL waveform delivering the
fastest adhoc mesh network to the tactical
edge. TTNTs low latency and on-demand ad hoc IP
networking allows aircraft, UAVs, ships and
ground vehicles to automatically enter and exit
the network without pre-planning. The masterless
self-healing networking capability ensures that
even if a platform node is lost or leaves the
area, the network remains active for all the
other users. Department of Defense (DoD) is
planning to relocate TTNT from 17551850 MHz to
17551850 to 20252110 MHz band in the next
couple of years.
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
5
  • Learn about
  • Advanced JTRS waveform for aircraft battlefield
    communications
  • Overview of Tactical Targeting Network Technology
    (TTNT)
  • TTNT Architecture and Building Blocks
  • TTNT related technologies
  • Basics of Tactical Targeting Network Technology
    (TTNT)  waveform technology
  • TTNT operation
  • TTNT radio terminals
  • TTNT use cases for dynamic battlespace and
     networking needs of  warfighter
  • Time Sensitive Target Networking Technology
    (TSTNT) requirements Tactical Data
  • Link Transformation (TD-L) Capability Document
    (CDD)
  • Joint Airborne Network-Tactical Edge (JAN-TE)
    capabilities
  • Tactical Targeting Network Technology on MIDS
    JTRS Terminals
  • Tactical Targeting Network Technology (TTNT) wave
    form and the Multifunctional Information
    Distribution System (MIDS)
  • Joint Tactical Radio System (JTRS) terminal
  • Key features and benefits of Tactical Targeting
    Network Technology (TTNT) technology and
    platforms
  • On-demand ad hoc IP networking and more.

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
6
TONEX TRAINING TTNT TRAINING Tactical
Targeting Network Technology Call Us Today
1-972-665-9786
2 Days Course
TAKE THIS COURSE
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
7
  • Course Agenda
  • Introduction to Tactical Targeting Network
    Technology and Connectivity
  • Overview of Joint Tactical Radio Systems (JTRS)
  • TTNT (Tactical Targeting Networking Technology)
    Architecture and Protocols
  • Data Link Transceivers for TTNT
  • TTNT Waveform
  • Principles of Ad Hoc Networking
  • TTNT and Common Networking Services and
    Operations
  • TTNT Network Security Features
  • TTNT Case Studies

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
8
  • Introduction to Tactical Targeting Network
    Technology and Connectivity
  • What is Tactical Targeting Network Technology
    (TTNT)?
  • TTNT benefits
  • Network Enabled Capability (NEC)
  • Waveform technologies based on the Joint Airborne
    Network-Tactical Edge (JAN-TE) capabilities
  • Time Sensitive Target Networking Technology
    (TSTNT) requirements
  • Tactical Data Link Transformation (TD-L)
    Capability Document (CDD)
  • Airborne and combat networks
  • Concurrent Multi-Netting (CMN)
  • Concurrent Contention Reception (CCR)
  • Overview of TTNT features
  • Throughput, anti-jam, low latency, quick net
    join, waveform for IP connectivity
  • TTNT waveform integration with JTRS terminals
  • TTNT Design Principles
  • Enhancements to Traditional TDLs
  • TTNT Networking Principles
  • TTNT Signal Structure
  • TTNT Power and Transceiver

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
9
TONEX TRAINING TTNT TRAINING Tactical
Targeting Network Technology Call Us Today
1-972-665-9786
2 Days Course
TAKE THIS COURSE
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
10
  • Overview of Joint Tactical Radio Systems (JTRS)
  • Network-Centric Warfare (NCW) concept Family of
    multi-band/multi-mode SDRs
  • Communications within the 2 MHz to 2 GHz
    frequency range
  • JTRS advanced waveforms
  • TTNT as a dynamic, robust waveform enabling
    NetCentric communications
  • Joint Enterprise Network Manager software
  • JTRS Man-Pack Radio Tactical radio systems
  • Situational awareness
  • Tactical V/UHF airborne / Ground V/UHF
  • Satellite communications (SATCOM)
  • Advanced communications
  • Electronic warfare/signals intelligence
    (EW/SIGINT)
  • Waveform design, development and sustainability
  • Deficiencies in the current tactical data link
    systems
  • Multifunctional Information Distribution System
    (MIDS) for JTRS
  • MIDS for JTRS radios JTRS family of radios with
    TTNT waveform
  • Joint Aerial Layer-Tactical Edge waveform
  • JTRS features for Link 16 and TTNT host platform

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
11
  • TTNT (Tactical Targeting Networking Technology)
    Architecture and Protocols
  • TTNT architecture and protocols
  • TTNT interfaces
  • TTNT as a high speed data link airborne network
  • Enhancements to Traditional TDL
  • No Mission Planning
  • Deterministic Latency
  • Priority based
  • IP and Non-IP Interface
  • Dynamic Network Management (OAMP)
  • SNMP (simple network management protocol) for
    Network Management (NM)
  • Enhancements to Traditional TDL
  • No Mission Planning
  • Deterministic Latency
  • Priority based IP and Non-IP Interface
  • Dynamic Network Management (OAMP)
  • SNMP (simple network management protocol) for
    Network Management (NM)
  • Principles of Software-defined radio (SDR)

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
12
TONEX TRAINING TTNT TRAINING Tactical
Targeting Network Technology Call Us Today
1-972-665-9786
2 Days Course
TAKE THIS COURSE
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
13
  • Data Link Transceivers for TTNT
  • MIDS JTRS
  • TTNT vs. Link 16 and JREAP
  • TTNT and existing Link-16 terminal/Multifunction
    Information Distribution System Low Volume
    Terminal (MIDS LVT)
  • TTNT waveforms as software applications on JTRS
    radios
  • TTNT frequency band analysis by application
  • Wireless Broadband in the 1755 1850 MHz Band
  • TTNT Porting / TTNT Transceiver / TTNT Ext PA /
    TTNT WF / TTNT Application data path
  • Common Operational Pictures (COPs)
  • Collaboration workspaces (e.g. instant messaging)
  • On-demand services
  • Relay IP-based layered communication
  • Statistical Priority-Based Multiple Access (SPMA)
    protocol
  • TTNT integration with  Line of Sight (LOS) and
    Beyond Line Of Sight (BLOS) communications
  • Pentagons JTRS waveform repository
  • TTNT link budget / TTNT Signal Structure
  • Hi Doppler Effect AND Frequency Allocation
  • Link 16 Compatible

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
14
  • Data Link Transceivers for TTNT
  • MIDS JTRS
  • TTNT vs. Link 16 and JREAP
  • TTNT and existing Link-16 terminal/Multifunction
    Information Distribution System Low Volume
    Terminal (MIDS LVT)
  • TTNT waveforms as software applications on JTRS
    radios
  • TTNT frequency band analysis by application
  • Wireless Broadband in the 1755 1850 MHz Band
  • TTNT Porting / TTNT Transceiver / TTNT Ext PA /
    TTNT WF / TTNT Application data path
  • Common Operational Pictures (COPs)
  • Collaboration workspaces (e.g. instant messaging)
  • On-demand services
  • Relay IP-based layered communication
  • Statistical Priority-Based Multiple Access (SPMA)
    protocol
  • TTNT integration with  Line of Sight (LOS) and
    Beyond Line Of Sight (BLOS) communications
  • Pentagons JTRS waveform repository
  • TTNT link budget / TTNT Signal Structure
  • Hi Doppler Effect AND Frequency Allocation
  • Link 16 Compatible

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
15
TONEX TRAINING TTNT TRAINING Tactical
Targeting Network Technology Call Us Today
1-972-665-9786
2 Days Course
TAKE THIS COURSE
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
16
  • TTNT Waveform
  • TTNT Waveform Version 7
  • Principles of Gaussian Minimum Shift Keyed (GMSK)
  • GMSK in Global System for Mobile Communications
    (GSM), Tactical Targeting Network Technology
    (TTNT) and Bluetooth
  • Stationary additive white Gaussian Noise (AWGN)
  • Frequency-Hopped (FH) waveforms
  • TTNT signal as a Frequency-Hopped Gaussian
    Minimum Shift Keying (GMSK) modulated waveform
  • TTNT variable and fixed parameters
  • TTNT GMSK generation block diagram
  • Adjacent-channel interference
  • Interception link
  • Low Probability of Intercept (LPI)
    characteristics
  • JTRS Enterprise Network Services (ENS)
  • Layer 3 common set of network services and
    capabilities

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
17
  • Principles of Ad Hoc Networking
  • What is Ad Hoc networking?
  • Mobile Ad Hoc networking and military
    communications
  • Data networking, GPS, real-time video feeds, and
    satellite intelligence
  • Mobile Network building blocks
  • IP network on fixed wired infrastructure
  • Mobile wireless networks
  • Principles of Mobile Ad hoc NETwork (MANET)
  • MANET conventional networking solutions
  • Dynamic Link Exchange Protocol (DLEP)
  • Radio Aware Routing (RAR) family of protocols
  • Applying QoS
  • TTNT QoS requirements and system capacity.
  • Available bandwidth, delay, or link
  • Size, Weight and Power (SWaP)
  • SWaP and Ruggedization
  • Network solutions for the dynamic environment
  • Networked airborne audio and video services

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
18
TONEX TRAINING TTNT TRAINING Tactical
Targeting Network Technology Call Us Today
1-972-665-9786
2 Days Course
TAKE THIS COURSE
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
19
  • TTNT and Common Networking Services and
    Operations
  • Application layer services
  • Voice over IP
  • Video over IP
  • Airborne network vision
  • The Global Information Grid (GIG)
  • Emerging IP based terminals, systems, platforms,
    and ground sites
  • Routing architecture
  • Service Type and Protocols
  • On-demand ad hoc IP networking
  • Masterless self-healing networking capability
  • Internet Protocol Support
  • IPv4, ICMP, IGMP
  • Internet Routing Unicast, Multicast, Inter
  • Intra domain
  • QoS DiffServ, IntServ, marking, policing,
    admission control, shaping, scheduling
  • Mobility Support Inter Intra Domain Network
  • Infrastructure Services

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
20
  • TTNT Network Security Features
  • IP Network Security 101
  • Ad-hoc IP Networking Security Requirements
  • PKI Assumption
  • PKI Domain Sets
  • TTNT Domain Classification
  • Ad Hoc PKI Connection
  • Ad Hoc Certificate Validation
  • TTNT Case Studies
  • TTNT in command and control architecture for the
    X-47B

TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
21
(No Transcript)
22
TTNT Training Tactical Targeting Network
Technology Training https//www.tonex.com/training
-courses/ttnt-training-tactical-targeting-network-
technology-training/
TAKE THIS COURSE
23
(No Transcript)
About PowerShow.com
