XFS Communications, Inc.

1

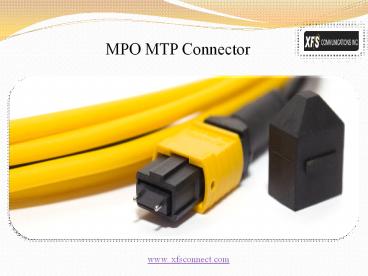

MPO MTP Connector
www. xfsconnect.com
2
THE ULTIMATE LOW-LOSS MULTI-FIBER CONNECTIVITY
CHOICE FOR 400G SYSTEM AND BEYOND
MPO connectors are well-suited for high-density,
high-traffic applications including data centers
and central offices. XFS' proprietary MPO
manufacturing process employs the most advanced
polishing technology for producing the MPO
connectors with the best optical performance in
the industry. We can offer 4, 8, 12, 24 and
48-fiber MPO assemblies, with ribbon, flat and
round cable structure options. We can also
provide MPO assemblies with IP (waterproof)
connectivity.
3
MPO/MTPFANOUT ASSEMBLIES

• Feature
• MTP (US Conec) brand or MPO standard compliant
• multifiber connector
• MPO/MTP connector on one end, with LC or SC
• connectors on the other end
• 4, 8, 12 and 24-fiber with single mode and
• multimode options

www.xfsconnect.com/MPOMTP/
4
MPO/MTPTRUNK CABLE

• Feature
• MTP (US Conec) brand or MPO standard compliant
• multifiber connector
• Connector's design complies with IEC 61754-7
  standards
• 4, 8, 12 and 24-fiber with single mode and
• multimode options

www.xfsconnect.com/MPOMTP/
5
MPO/MTPMODULE

• Feature
• MTP (US Conec) brand or MPO standard compliant
• multifiber connector
• MPO/MTP connector on one end, with LC or SC
• connectors on the other end
• 4, 8, 12 and 24-fiber with multimode and single
• mode options

www.xfsconnect.com/MPOMTP/
6
MPO Structure
Ribbon
Flat
Round
7
MPO Testing Equipment
3D_Interferometer_-_Sngle_Core
24-MPO_IL_RL_Inspector
IL_RL_inspector
Multi-wavelength_IL_RL_inspector
8
XFS is the exclusive manufacturer of the cabling
system used in the point-to-point FTTH network in
Netherlands, which most of the connections are
made with low loss SM MPOs and special
enclosures.
9
CUSTOMERS REGIONAL DISTRIBUTION
10
Contact Us XFS Communications, Inc. 5F-1, No.2,
Ln.57, Chongyang Rd. Taipei 11573 Taiwan Contact
Person Peter Sun Contact Email
peter_at_xfsconnect.com Website www. xfsconnect.com
