Title: suspended Platform


1

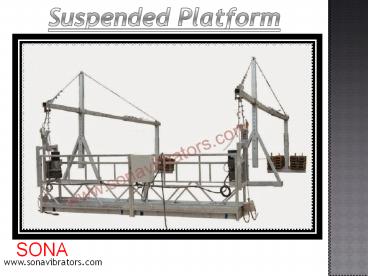

Suspended Platform
SONA
www.sonavibrators.com
2
Description
  • We "Sona Sales Agencies" are Only one
    Manufacturer of Suspended Platform In India we
    can Provide you Suspended Platform with Havels
    Motor no one else in India Can Provide you
    Suspended Platform With Havels Motor. They
    provide you Chinese Hoister. We are among the
    most distinguished organizations engaged in
    manufacturing and supplying quality range of
    Suspended Rope Platform-Aluminum. The suspended
    rope platform offered by us is widely used by the
    clients for temporary and permanent lifting of
    people and their working equipment. These rope
    platforms are also used by our patrons for
    various others purposes like building
    maintenance, decoration, glass cleaning, facade
    cleaning purpose, chimneys, glass fitting, fixing
    facade bill boards, banners, maintenance of
    facade lights, for signage fixing and signage
    maintenance. All these suspended rope platforms
    are manufactured by using latest technology,
    machines and optimum quality aluminum and
    components sourced from the reputed vendors of
    the market.

3
 Technical Specification
MODEL ZLP800
Platform size 2.5 Meter x 2 no.s 5 Meter 1.5 Meter x 1 no.s 1.5 Meter 1 Meter x 1 no.s 1 Meter Total 7.5 Meter
Material of platform M.S.Steel Platform Beta Dip Hot Galvanized
Balance Weight 1000 kgs.
Rated load 800 kgs.
Ascend Speed (working speed) 9-11m/min
Wire rope 4 x 31 Sw FC- 9.1
Wire rope Size 9.1 mm
Wire rope Length 100 Meter
Structure Weight Approx. 900-950 K.g.
Counter Weight 1000 k.g.
Rated Lifting force 5KN
Electric Motor Electric Motor
Power 1.8kW x 2 no.s
Voltage AC 415v 3 phase
Breaking 15 NM
Safety lock Tilt proof safety lock (2 No.s)
Suspended Mechanism Suspended Mechanism
Height Adjustment 1.15m 1.75m
Front Beam extension 1.1m 1.7m
4
SAFETY FEATURES
  • Central control in the cradle for traction hoist
    with IP55 Protection, Main Switch, phase
    protection push buttons.
  • Fail-Safe primary electromagnetic brake
    positively locked with power switch in off
    position. In case of power failure the
    electromagnetic brakes are instantly actuated to
    safely hold the cradle in position.
  • Emergency descent at controlled speed in case of
    power failure by operating primary brake lever.
  • Upper limit switchs to halt the ascent at
    pre-determined height.
  • Emergency push button stop on control panel and
    remote pendant switch.
  • Speed control safety Device
  • Top Board to prevent dropping down small tools.

5
Are Websites
  • www.sonavibrators.com
  • www.stirrupbender.in
  • www.sonaconstech.com
  • www.suspendedplatform.in
  • www.barbendingmachine.in
  • www.sctpl.in
  • https//www.facebook.com/Sonaconstructiontechnolog
    ies/
  • https//twitter.com/SonaConstruc
