Title: High Power Relays Distributor in India


1

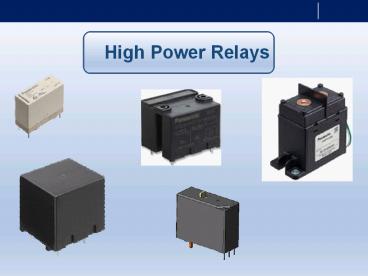

High Power Relays
2
Target Markets
Latching Relay
for Lighting Control Application
  • KEYWORDS
  • Centralized Lighting Controls
  • High Current Applications
  • Ballast / High Inrush Applications
  • Power Distribution Units
  • Latching Type Request

3
Data center PDU / DW-HL Relay
Latching relays for PDU
Target Application
  • PDU

DW-HL Relay
World smallest relay for PDU!
  • Capable of inrush 100A
  • Certify TV-8 rating
  • Power saving Latching relay
  • Market standard 15.8mm height

4
Lighting / DJ-H relay
Target Applications occupancy sensor,
automatic timer, scheduled shutoff control for
lighting
NEMA 2015 High inrush capability is required in
a relay
DJ-H Relay
  • Strong against inrush current
  • NEMA 410 20A 277VAC
  • TV-20 Ratings
  • IEC60669-1
  • Most power saving Latching relay

5
High Capacity AC DC Power Relays
for Solar Inverter Charging Station
Applications
  • Keywords
  • Higher KW (gt5kW) Solar, Fuel Cell Inverters
  • High Current Request (gt40A, AC277V)
  • High Voltage Dc Cut Off (400 1500 VDC)
  • Grid Tie Inverters

6
Charging Station AC DC Power Relay Applications
7
Solar Inverter Relay Applications for DC AC
Side
8
AC Power Relays Range
Products compliant with the European PV system
standards (VED 0126) Proposals can be made
according to applications and capacities.
120 A
HEN (120 A)
Recommended relays for PV systems
Relays Contact arrangement Max. switching current Contact gap
LF-G Series 1 Form A 22/33 A 1.5/1.8 mm
HE-PV 1 Form A 35/48 A 2.5 mm
HE-PV 90 A 1 Form A 90 A 3.0 mm
HE-S 2 Form A2 Form A, 1 Form B 35 A 3.2mm
HE PV (90 A)
HE PV (35 A)
9
DC Power Relays PV Applications
10
Slim Power Relays
for Industrial Automation PLCs
PA-N Relay
  • Withstand Voltage 3kV
  • Insulation clearance 3mm
  • Insulation creapage 5.35mm
  • Ambient temp -40? 90?
  • Power consumption 110mW
  • Acquire Ansi standard
  • Space constraints
  • Panasonic Strength NO Contact only. NC also
    available
  • PLC Input / Output Modules

11
Safety Relays
for Elevators, Machine Tools, Robotics, Railway
Signaling
  • Keywords
  • Slim Type Flat type Relays
  • Forcibly Guided Contact Structure (Mirror
    Contact)
  • Meeting IEC / EN 61810-1.
  • Wide variety of Contacts / DIN Rail Socket
    Available.
  • Where, Human Safety involved.

12
Safety Relays
The key concepts are safety circuits and feedback
circuits!
  • Use in safety circuits
  • Use for emergency stop
  • Electric discharge machines
  • Press machines
  • Semiconductor production equipment
  • Chip mounters
  • Elevators
  • Robots
  • Machine tools
  • Safety PLCs

13
Slim Safety Relays
14
Focus Applications
Connectors
  • Keywords
  • Narrow Pitch Connectors (Pitch lt0.8mm)
  • Board to Board, Board to FPC, FPC Connectors
  • Rugged High Quality Connectors
  • High Current Connectors (gt1.5A)
  • As small as Possible
  • High Speed Transmission

15
Hand Held Terminals, Measurement Devices
P r e s s u r e S e n s o r
Measuring Instruments
Hand Held Terminals
16
Smart Phones, Tablets, Cameras, Drones etc
17
Board To Board / Board to FPC Features
18
Board To Board / Board to FPC Features
19
Micro Switches
for Industrial Appliances
  • Keywords
  • Signalling or Load Control, Panasonic strong in
    Signalling (50mA) IP67, 2 terminal Load
    Handling (lt3A)/Signalling (lt100mA) IP 40 2/3
    terminal type.
  • Detection Open/Close.
  • IP 67 or IP 40..
  • 2 Terminal or 3 TerminalNO or NC

20
Applications - Air Conditioner
Equipment Air Conditioner Products
AV3/AVT3 switch, AV6 switch, Turquoise switch
series Application Cover detection (AV3/AVT3
switch, AV6 switch, Turquoise switch
series), Information As for air conditioner
with function of minus ions generation,
switch is used to detect safety
cover because a high voltage is generated.
Moreover, switch is used for
positional detection of moving part
as for the model with automatic
cleaning function.
21
Applications - Air Purifier
Equipment Air Purifier Products
Turquoise switch, AGX switch Application
Cover detection, Filter detection,
Inter rock detection (Turquoise
switch, AGX switch),
Sales point Sealed construction (Turquoise
switch). Sealed
switch is required because dust and will flow
into a purifier
when it is operating. Switch is used for the
open and close detection of
safety cover because the air purifier
has minus ion generating function
by generating high voltage plasma.
22
Applications - Washing Machine
Equipment Washing Machine Products
Turquoise switch series Application Drum
detection, Door open/close detection (Turquoise
switch), Sales point Sealed
construction, shock resistance (Turquoise
switch). Inclination
of the drum is detected in order to keep washing
machine from falling
when the rolling drum inclines too much. .
23
Applications - Coffee Maker
Equipment Coffee Maker Products
Turquoise switch series Application Waste
tank detection (Turquoise switch) Sales
point Sealed construction (Turquoise
switch). Used coffee beans are
automatically discarded to the tank.
A turquoise switch is used for the tank
detection. Sealed
construction is required as the used coffee beans
are wet.
24
Applications - Electrical Lock
Equipment Electrical Lock Products
Turquoise switch Application Solenoid
position detection Sales point Sealed
construction.
Environmental resistant, such as rain and dust,
is required as this
electric lock is used for the front door.
25
Photomos Relays
for Industrial Appliances
  • Keywords
  • Input Output Isolation Requirement..
  • Low Current Signalling Applications
  • Miniaturisation Request.
  • Long Switching life Cycles
  • Low On Resistance

26
Photomos Construction Applications
  • I/P O/P Optically Isolated
  • Bidirectional
  • Long Life
  • Small Size
  • Low Current Applications

27
Photomos Packages
28
PIR Sensors
for Lighting / Security / IOT / Smart Home
  • Keywords
  • Solar Street Light
  • Battery Operated, Low Power consumption 1uA, 2uA,
    6uA
  • Small size
  • High Sensitivity / Slight Motion
  • Temperature difference lt4 Deg Cgt

29
Applications
30
PaPIRs Engineering Features
31
New product plan
Detection distance (temperature difference 4?) Detection distance (temperature difference 4?) Lens less Standard detection Long distance detection Wall installation High density Long distance New Slight Motion Wide FOV Hammerhead
WL series 1µA 2m? 5m 12m 12m 12m 2.5m 5m
WL series 2µA 2m? 5m 12m 12m 12m 2.5m 5m
WL series 6µA 2m? 5m 12m 12m 12m 2.5m 5m
VZ series 170µA STD 2m? 5m 12m 12m 12m 2.5m 5m
VZ series 170µA High Sensitivity 3m? 7m 17m 17m 17m 3.5m 7m
VZ series 170µA Half Sensitivity 1.5m? 3.5m 8m 8m 8m 1.7m 3.5m
VZ series 170µA Analog By customers setting By customers setting By customers setting By customers setting By customers setting By customers setting By customers setting
32
PaPIRs New Product
PaPIRs Slight Motion lens
Appearance
Specification
?White lens?
?Black lens?
?Pearl white lens?
Feature
? Slight motion detection type ? 2.5m detection
Major lineup
Current lineup
NaPiOn Slight
PaPIRs Saturn
2.2m
2m
?-1White, 2Black, 3Pearl white
33
PaPIRs New Product
Lens line up with detection area
MP now
Coming soon
Coming soon
34
PaPIRs New Product
Coming soon
Long Beam lens (high density long distance lens)
12m
F16.5m
Detection area (12m)
35
PaPIRs New Product
Coming soon
New lens concept LONG BEAM
  • ? FOV 62
  • ? Two functions within one lens
  • ? 12m long detection 3m slight motion detection

Max.3m
Max.12m
Detection area at 12m
for Slight motion detection
for Walking detection
Detection area at 3m
36
PaPIRs New Product
MP now
Wide FOV HMH lens
