Solar panel Kit
Description:
if you already have a DC to DC charger, it’s as simple as connecting the panel and you’re away*. Once installed the Adventure Kings 110W Fixed Solar Panel will be hard at work during the days charging your batteries and powering devices, giving you more time to kick your feet-up and relax. *Check the manufacturers operating maximum input voltage before connecting to your DC to DC charger – PowerPoint PPT presentation
Number of Views:49
Title: Solar panel Kit
1

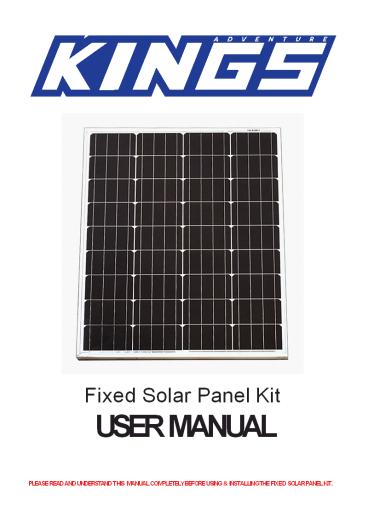

Fixed Solar Panel Kit USER MANUAL
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE USING INSTALLING THE
FIXED SOLAR PANEL KIT.
2
- Warnings
- Ensure all the bolts are firm and will not
vibrate loose. - Check all nuts and bolts frequently, making sure
they are tight and in good condition - Take care when manoeuvring installing the Solar
Panel as to not damage the unit - Never connect the Solar Panel directly (without a
controller) to a battery or other load.
Included in the Kit
ITEM QTY
110W Monocrystalline Solar Panel 1
Z-Shaped Bracket 4
Aluminium Support Plate 4
M816 Bolt 4
M8 Nylon Lock Nut 4
M8 Washer (Form A) 12
M825 Bolt 8
M8 Spring Washer 8
M8 Washer (Form C) 4
2
Adventure Kings Fixed Solar Panel Kit
3
