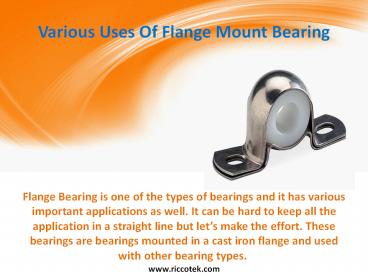

Various Uses Of Flange Mount Bearing
Flange Bearing is one of the types of bearings
and it has various important applications as
well. It can be hard to keep all the application
in a straight line but lets make the effort.
These bearings are bearings mounted in a cast
iron flange and used with other bearing types.
www.riccotek.com
2
You can find three type of basic flange bearings
which are round or square four-bolt, the
tri-cornered three-bolt and the diamond-shaped
two-bolt. They are used with ball bearings,
needle roller, plain bearings and roller bearings.
www.riccotek.com
3
On external housings that mount a bearing unit,
flange mount bearing are very popularly used to
help secure positioning for reliable operation.
These are helpful for providing enough support
for a shaft that runs perpendicular to the
bearings mounting surface.
The material the actual bearing is made from on
which the shaft rides, which are usually made of
plastic, bronze or other materials.
www.riccotek.com
4
We offer Flange bearings as per the applications
needs and they are engineered to meet specific
requirements. With different designs, cages, load
capacities and performance, these bearings
feature sturdiness, water resistance and dirt
resistance.
www.riccotek.com
5
Designed to mount ball bearing with high
precision, they are suitable for providing
mounting for other apparatuses with rotary or
linear motion.
www.riccotek.com
6
The Roller flange bearing can support radial
loads, which may or may not require oiling as
some types come maintenance free. Roller bearing
flanges are infact the best for radial load
support and fight linear movement of the shaft.
It has the ability to support the greatest amount
of load of all flange types.
www.riccotek.com
7
The flange mount bearing aids in positioning,
mounting and operation, these are commonly
installed at the outer end of the shaft to
provide low-friction, smooth rotary movement of
the shaft. So, when combined with various bearing
types, combating different loads and excess shaft
movement, they ensure longer and safer operation
of machinery.
