Title: 3d metal printing


1

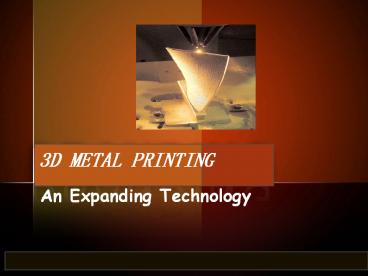

3D METAL PRINTING
  • An Expanding Technology

2
3D Printing Process
What is 3d Printing Technology ?
  • Process of building solid object of any shape
    from a digital model.
  • Also known as additive manufacturign process.
  • Successive layers of material are formed under
    computer control.

3D Metal Maker
3
First Printing Machine
History of Printing Machines
  • Invented by JOHANNES GUTENBERG.
  • He was a German blacksmith, goldsmith, printer
    and publisher.
  • Gutenberg was the first European to use printing
    press and movable type in Europe in 1439.

First Printing Press
Johannes Gutenberg
4
What is additive manufacturing ?
Additive Manufacturing Method
  • Method is use to build 3d objects.
  • It adds layer upon layer of material
  • Additive manufacturing (AM) method is limitless.
  • The AM equipment reads data from CAD sketch.
  • CAD is a Computer Aided Design.

Additive manufacturing method
Additive manufacturing equipment
5
How does 3D Printing work?
3D Printing
  • The process starts with making the virtual design
    of the object to be created.
  • Virtual design are made using CAD.
  • CAD file is made using the 3D scanner.
  • 3D scanner can make 3D digital copy of an object.

Working of 3d printing
6
3D Printing is done by different methods
Different Methods of 3D Printing
  • Selective Laser Sintering (SLS)
  • Stereolithography (SLA)
  • Fused Deposition Modelling (FDM)
  • Selective Laser Melting (SLM)

3D metal printing objects
7
What is SLS ?
Selective Laser Sintering (SLS)
  • This technique makes use of laser as the source
    of power to sinter powdered material.
  • Some SLS machines use single component powder.
  • SLS can produce parts from relatively wide range
    as compared to other AM methods.
  • This technology is increasingly being used in
    limited run manufacturing to produce end use
    parts.

Selective laser sintering process
8
What is Stereolithography ?
Stereolithography (SLA)
  • It is also known as Optical Fabrication
  • SLA is a additive manufacturing technology.
  • Used for creating model, prototype, patterns etc.
  • It is early and widely used 3d printing
    technology.

Stereolithography
9
What is FDM 3D Printing?
Fused Deposition Modelling (FDM)
  • It is most widely used 3D printing method.
  • FDM printers uses thermoplastic filament.
  • The filament is heated to its melting point and
    then it is extruded.
  • The obove process is done to produce 3
    dimentional objects.

Fused deposition modelling
10
What is SLM ?
Selective Laser Melting (SLM)
  • This process uses 3D CAD data as a digital
    information source.
  • It is used in manufacturing appications in
    aerospace or medical orthpedics.
  • The process starts by slicing the 3D CAD file
    data into layers.
  • SLM is sometimes also referred to as rapid
    manufacturng

Selective laser melting
11
3D printing technology is used in many
applications
Application of 3D Printing
  • Medical and Dental
  • Aerospace
  • Automotive
  • Jewellery
  • Art, Design and Sculpture
  • Architechture

12
remember
Remember
  • Get more detailed information regarding the 3D
    metal printing services at

http//www.atlanticprecision.com/
