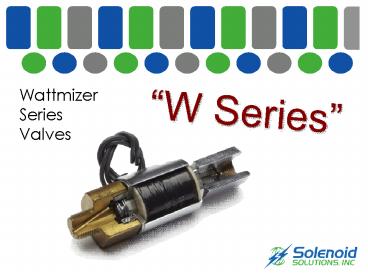

Wattmizer Series Valves

1

• Wattmizer
• Series
• Valves

W Series
2
Overview

• The Wattmizer is a miniature direct-acting
  solenoid valve.
• It is designed to provide high-efficiency in
  compact areas.
• It comes in either a 2-way or 3-way
  configuration.

3
Valve Body

• The W-Series comes in the customer's choice of
  brass or stainless steel bodies.
• The internal components are made of stainless
  steel.
• Stainless steel is ideal for use with
• Air
• Water
• Inert gases

4
Specifications
The maximum operating pressure differential of
the W-Series valve is up to 1200 psi (85 bar).
Orifice diameters are available from .025" to
1/8". Response times for this valve range from 6
to 10 milliseconds.
5
Rating Power

• The W-Series features a continuous-duty coil
  rating.
• The W-Series Class F ranges from .65 watts
  through 9 watts, up to 155C.
• The W-Series Class B ranges from .65 watts
  through 9 watts, up to 130C.
• Standard voltages for the W-Series
• 24V/50-60 Hz
• 120V/50-60 Hz
• 240V/50-60 Hz
• 6,12, 24 VDC (other voltages and wattages
  available upon request)

Power consumption of the W-Series ranges from .65
to 9 watts continuous-duty.
6
Housing Port

• The W-Series direct-acting solenoid valve vacuum
  is 5 microns.
• The port size is 10-32 UNF-2B, 1/8 NPT.
• The standard is strap housing, but grommet
  housing is also available.

7
Temperature Weight

• Media Temperature Limitations
• Minimum -40F (-40C) Maximum 180F (82C)
• Weight 2 3/4 3 1/4 ounces
• Lead wire 20 AWG, 18 inches long standard

8
Power Flow Rating

• The W-Series features a low-wattage coil build
  for energy efficiency and use with lower current.
• It is offered in both AC and DC.
• The Wattmizer provides wide pressure and flow
  ratings.
• It is designed to last for more than 10 million
  cycles.

9
The W-Series is excellent for...

• Medical devices
• Beverage systems
• Gas analysis systems
• Numerous gas and water applications

10
Contact Us

• Solenoid Solutions specializes in
• high-quality OEM solenoid valves and manifolds.
  They offer a variety of delivery options to suit
  any work environment, including on-time delivery,
  inventory consignment, kan-ban, lean
  manufacturing practices, and others.
• Visit their website at
• http//www.solenoidsolutionsinc.com/
• to see how Solenoid Solutions can provide the
  valves and manifolds you need.

11
Sources

1. http//www.solenoidsolutionsinc.com/images/pdfs/So
   lenoidCatalog_lr1.pdf

12
Summary

• The Wattmizer is a miniature, direct-acting
  solenoid valve, ideal for high-efficiency areas
  where a compact valve is called for. It is the
  ideal valve for use with air, water, and inert
  gases.
