BTU meters are used on chiller lines

1

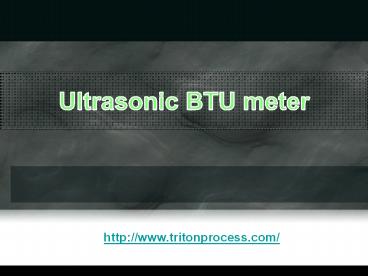

Ultrasonic BTU meter
http//www.tritonprocess.com/
2

• How do you quickly and efficiently install an
  energy measurement system for a leading global
  pharmaceutical facility that consumes as much as
  300 million BTU per day?

3

• With clamp-on ultrasonic energy meters,

4

• A major manufacturer in Philadelphia successfully
  installed a working thermal energy monitoring
  system in only two days - enabling fast,
  accurate, real-time results.

5

• A major pharmaceutical company has a large
  facility in the greater Philadelphia area.

6

• This facility consumes as much as 300 million
  BTU's of thermal energy per day to cool their
  labs, equipment, offices, and other facilities.

7

• The chiller distribution network runs across
  several buildings over long distance and
  throughout underground tunnels.

8

• The pipe sizes at this facility range from a few
  inches up to 24 inches.

9

• The chiller system is managed by a facility
  management company.

10

• In order for the facility management company to
  bill their client properly

11

• It was necessary to install an energy metering
  system to accurately measure the energy
  consumption of each compound.

12

• In addition, due to the long pipe lines, it was
  crucial to know if leakage of water or energy
  occurred on a real-time basis.

13

• Non-intrusive installation thereby significantly
  saving money and time, in particular for large
  size pipes

14

• No moving parts, thus, almost no maintenance,
  thereby saving maintenance costs

15

• Industrial grade temperature sensors and
  ultrasonic sensors for improved robustness

16

• Paired sensors and ultrasonic transducers for
  improved accuracy

17

• Suitable for pure liquids and liquids with some
  particles.

18

• Suitable for all commonly used pipes

19

• Bi-directional flow measurement

20

• Seamless integration of temperature and flow so
  to deliver a complete energy metering solution

21

• Accurate flow and BTU measurement improves
  chiller plant control

22

• Real-time data and balancing information to
  improve system efficiency

23

• Continuous monitoring of flow, temperature

24

• Energy transportation guarantees system
  performance along with providing alarm for
  potential risk or energy leakage

25
