Title: Chap' 5: State Machine Design


1

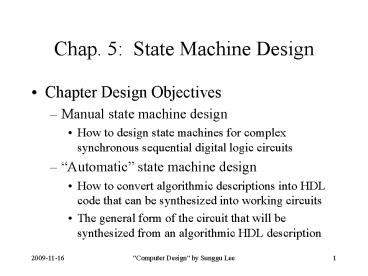

Chap. 5 State Machine Design
  • Chapter Design Objectives
  • Manual state machine design
  • How to design state machines for complex
    synchronous sequential digital logic circuits
  • Automatic state machine design
  • How to convert algorithmic descriptions into HDL
    code that can be synthesized into working
    circuits
  • The general form of the circuit that will be
    synthesized from an algorithmic HDL description

2
State Machine Design
  • Used for systematic design of synchronous
    sequential digital logic circuits
  • Modification of FSM Method
  • FSM (Finite State Machine) method insufficient
  • FSM method only suitable for small sequential
    circuits with small numbers of external inputs
  • Allow more complicated checks for state
    transitions
  • Uses RTL statements within the states
  • Within one state, all RTL statements execute
    concurrently
  • Permits systematic conversion from algorithms to
    H/W
  • Variation of State Machine Method
  • Algorithmic State Machine (ASM) Method
  • Uses a graphical notation referred to as an ASM
    chart

3
Algorithms
  • Formal definition of an algorithm
  • A general step-by-step procedure for solving a
    problem that is CORRECT and TERMINATES.
  • A proof is required before a procedure can be
    called an algorithm.
  • Informal definition of an algorithm
  • A computer-program-like procedure for solving the
    problem given.
  • Algorithm description methods
  • Old (outdated) method flowchart
  • Pseudocode free-form procedural description

4
Structure of General Digital Circuit
5
Partitioning of Digital Circuits
  • Control Logic Section
  • logic required to generate control signals for
    registers, adders, counters, etc.
  • Datapath Section
  • all logic not included in the control logic
    section
  • registers, adders, counters, multiplexers, etc.
  • typically the word-sized data manipulation and
    storage components through which the data flows

6
Example Layout for a Chip
input data
control and status signals
output data
datapath elements
7
Manual State Machine Method
  • (1) Pseudocode
  • create an algorithm to describe desired circuit
    operation
  • (2) RTL Program
  • convert the pseudocode into an RTL Program (HDL
    or ASM chart format)
  • (3) Datapath
  • design the datapath based on the RTL Program
  • (4) State Diagram
  • based on the RTL Program and datapath
  • (5) Control Logic Design

8
RTL Program
  • HDL Format
  • Like a pseudocode description, except that each
    step is one state of the state machine
  • All operations within one state execute
    concurrently
  • All operations are RTL operations
  • ASM Chart Format
  • Uses a graphical notation that resembles a
    flowchart
  • Main difference
  • All operations within one state execute
    concurrently

9
ASM Charts
  • Consists of 3 types of constructs
  • State object
  • Condition object
  • Conditional output object

Example ASM Chart
How could we replace this with a conditional
output object? Is there any difference in
operation?
RTL Statements
condition
RTL statements
10
Manual State Machine Design Example Coin Changer
Circuit
  • Problem Design a coin changer circuit that
    changes 1000 Won notes to 100 Won coins.
  • Example usage
  • the coin changers used in electronic game arcades.

11
Step 1 Pseudocode
  • (1) Initialize COIN_OUT to 0
  • while (TRUE) do
  • (2) REJECT ? 0
  • (3) Wait until MONEY_INPUT
  • (4) If (not MONEY_VALID) then
  • REJECT ? 1
  • Go to Step (2)
  • (5) For i 0 to 9 do
  • COIN_OUT ? 1
  • COIN_OUT ? 0
  • endwhile

12
Step 2 RTL Program (HDL Format)
  • (0) COIN_OUT ? 0
  • while (TRUE) do
  • (1) REJECT ? 0If (MONEY_INPUT 0) then
  • go to Step (1)
  • else if (MONEY_VALID 0) then
  • (2) REJECT ? 1else
  • (3) COUNT ? 0
  • (4) COIN_OUT ? 1
  • COUNT ? COUNT 1 (5) COIN_OUT ?
    0 if (COUNT lt 9) then / concurrent
    with above statement /
  • go to Step (6)
  • endwhile

Each step corresponds to a state in the
control logic. The RTL operations within a
single state are executed concurrently.
13
Step 2 RTL Program (ASM Chart)
14
Step 3 Datapath
15
Step 4 State Diagram
16
Step 5 Control Logic
Example of one-hot control logic design method
(refer to pp. 18-19 of this ppt file)
17
Control Logic Design Methods
  • One-FF-per-state method
  • also referred to as one-hot or delay element
    method
  • uses one FF for each state of the state machine
  • PLD-based method
  • uses encoded states
  • number of FFs used integer_part (log
    (number_of_states))
  • results in the most compact implementation
  • Sequence-counter method
  • for use with cyclical state transition patterns
  • e.g., a CPU with equal numbers of states for each
    instruction
  • outputs of the counter are the control logic
    states

18
One-FF-Per-State Method
  • Uses one-to-one transformations from state
    diagram to digital logic components
  • Also applicable to ASM charts
  • Transformations
  • state in state diagram
  • transforms to a D flip-flop
  • transition from one state to another in state
    diagram
  • transforms to a path from the Q or Q output of
    one state flip-flop to the D input another D
    flip-flop
  • labeled transition in state diagram
  • AND gate with the labeled condition
  • labeled (conditional) signal activation also
    leads to AND gate
  • Several transitions into a single state
  • OR gate with one input for each transition

19
One-Hot Transformation Example
20
PLD-Based Control Logic Example
Next State Variables
Current State Variables
control signal outputs
conditions (status signals)
Contains programmed logicto implement next
stateand output logic equations
21
PLD-Based Implementation (Using an EPROM as a
PLD)
A14
22
A14
23
Overall Manual State Machine Design Approach
  • Write down a pseudocode solution
  • test it out using a short computer program
  • Convert the pseudocode to an RTL program
  • try to optimize ASM chart, so it uses a small
    number of states
  • can use HDL format or ASM chart format
  • Derive the datapath from the RTL program
  • figure out the datapath components and signals
    needed
  • Form a state diagram with states and control
    signal activations
  • Derive the control logic design
  • one-hot or PLD-based approach

24
Automatic State Machine Design
  • Describe the desired circuit using pseudocode
  • Convert the pseudocode into an HDL program
  • If the pseudocode is converted into an ASM chart,
    then a conversion tool (e.g., the Exsedia Nimbus
    tool) can be used to automatically convert an ASM
    chart into synthesizable Verilog or VHDL code.
  • Use a synthesis tool to convert the HDL code into
    a working hardware circuit
  • Implement for the target hardware architecture

25
Recommended Pseudocode Format
  • (0) initialize variableswhile (true) do (1)
    first step of algorithm (2) second step of
    algorithm . . . (k) for (i 0 i lt max
    i) . . . (m) function call (n) nth
    step of algorithmendwhile

26
Corresponding Synthesizable Verilog Code
  • always _at_(negedge reset_n or posedge clk) begin
    if (reset_n) begin state lt 0 (other
    initialization operations) end else begin //
    on posedge clk state lt state 1 //
    auto-increment state case (state) begin
    0 begin // first step of
    algorithm end 1 //
    second step of algorithm 2 begin
    ret_state lt 3
    state lt FUNCTION_1 end
    3 FUNCTION_1 // 1st step of
    function
    FUNCTION_1k state lt ret_state // return
    from function default
    display(Unknown state) endcase end
    // of else (posedge clk)end // of always

27
Conversion of For Loops
  • Conversion of for (i 0 i lt max i)
    endfor
  • Options
  • Use same sequence of operations
  • i 0
  • while (i lt max) i i 1 . . . Endwhile
  • Decrement the count instead of incrementing I
  • count max
  • repeat count count 1 . . .until
    (count 0)
  • Other equivalent series of operations also
    possible

28
Use of Code Templates
  • Use the code in pp. 178-179 as a template for the
    creation of new Verilog programs
  • Typical pseudocode operations used and
    corresponding HDL code
  • Table 5.2 (p. 178)
  • For loops discussed on previous page

29
Textbook Examples
  • Manual state machine design
  • Factorial circuit
  • Vending machine
  • Automatic (synthesis-based) state machine design
  • Vending machine
  • Correspondence to manual solution shown
  • LCD controller

30
Example Two-Phase Handshake Transmitter Circuit
  • Used to communicate between two circuits in
    different clock domains (i.e., clocked by
    different clock signals)
  • In large or high-performance circuits, different
    circuits (or subcircuits) will use different
    clock inputs because of clock synchronization
    difficulties or simply because they are
    independent circuits
  • Communication of data packets between such
    circuits requires a handshaking protocol
  • Solution implemented using the automatic
    synthesis-based method instead of the manual
    state machine design method used in Example 5.2

31
(No Transcript)
32
Pseudocode
  • 1. req ? 0
  • while (TRUE) do
  • 2. wait until (ready 1) // data ready
  • 3. data ? data_to_be_sent
  • 4. req ? not req // invert req value
  • 5. wait until (ack req)
  • end while

33
Synthesizable Verilog Code
  • always _at_(negedge reset_n or posedge clk) begin
    if (reset_n) begin req lt 0 state
    lt 0 // state should be a 2-bit reg
    signal end else begin // on
    posedge clk state lt state 1 //
    auto-increment current state case (state)
    begin 0 if (ready)
    state lt 0 // repeat until ready 1
    data lt data_in // assume data_in is data to be
    sent 2 req lt req // send
    request signal 3 if (ack ! req)
    state lt 2 // stay in this
    state until (ack req) default
    display(Error Unknown state) endcase
    end // of else (posedge clk)end // of always
