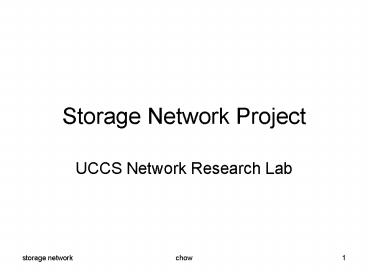

Storage Network Project

1
Storage Network Project

• UCCS Network Research Lab

2
Large SAN
3
Storage Management Interface
4
Clients/Servers in SAN
5
Storage Interconnect

• Fibre Channel is used to move SCSI data/command
  from Servers to disk arrays and tape drive.
• Very expensive dedicated fibre lines.
• Distance limitation---10km?
• New prosposals to carry SCSI over IP networks
• iSCSI
• Fibre Channel over IP (FCIP)
• Internet Fibre Channel Protocol (iFCP)

6
Differences in iSCSI, FCIP, iFCP

• iSCSI wraps SCSI data/commands in TCP/IP
  packets. Given full access IP management and
  routing.
• Wireless retail, use Cisco/Nishan? Switch
• Too slow?use TOE(TCP offload Engine, by intel,
  adaptec, ..).
• IBM stop 200i iSCSI targe storage appliance
  development.
• FCIP move encapsulated Fibre channel data
  through dumb IP tunnels, which connect SANs.
  Cannot take advantage of routing and IP
  management features.
• EMC, CNT, Pirus, SANcastle, SAN valley.
• iFCP wrap Fibre Channel data in IP packets but
  maps IP address to individual Fibre Channel
  devices. More stable? Allow routing and IP
  management.
• Carlson uses Nishan multiprotocol switch (sole
  provider of iFCP).

7
Storage Interconnect
http//www.nwfusion.com/supp/storage2002/iconnect.
html
8
Web-Based Enterprise Management (WBEM)

• a set of management and Internet standard
  technologies developed to unify the management of
  enterprise computing environments.
• The Common Information Model (CIM) specification
  is the language and methodology for describing
  management data.
• DTMFs WBEM web page http//www.dmtf.org/standards
  /standard_wbem.php
• http//www.dmtf.org/download/presentations/TOG_man
  agement_web_services.pdf

9
Storage Network Projects Based on Input from
Sarah Jelinek

• SAN Management
• Automated discovery, backup/disaster recovery,
  capacity planning, fault management
  (detection/isolation), hierarchical storage
  management.
• Policy management and associated QOS
• SAN Security
• Hard zoning, virus?, access control, truested
  manager.
• Intelligent Storage Switch (load balancing?,
  preferred treatment)
• WBEM/CIM Projects
• Building a distributed CIM object manager (CIMOM)

• http//sourceforge.net/projects/wbemsource/ for
  WBEM open source projects.
• Embeded WBEM/CIM infrastructure

10
Related Research Projects

• CMU's parallel data lab projects.
• Abacus http//www.pdl.cmu.edu/Abacus/index.html
  for
• Dynamic Function Placement for Data-Intensive
  Cluster Computing
• Ip storage http//www.ece.cmu.edu/ips/Docs/docs.
  html
• Related iscsi projects http//www.ece.cmu.edu/ip
  s/IPS_Projects/ips_projects.html
• There is also an interesting Self-securing
  storage project. http//www.pdl.cmu.edu/Secure/S4.
  html

11
SAN Related Companies

• Storage System
• IBM
• EMC
• Hitachi
• HP
• StorageTek?
• Quantum?
• Network Device
• Brocade "IMPROVING SYSTEM AVAILABILITY WITH
  STORAGE AREA NETWORKS" http//www.brocade.com/san/
  white_papers/pdf/HA_WP_02.pdf
• McData
• Cisco
• Nishan
