1

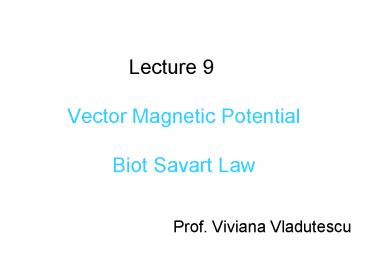

Lecture 9 Vector Magnetic PotentialBiot
Savart Law
  • Prof. Viviana Vladutescu

2
Figure 1 The magnetic (H-field) streamlines
inside and outside a single thick wire.
3
Figure 2 The H-field magnitude inside and
outside the thick wire with uniform current
density
4
Figure 3 The H-field magnitude inside and
outside the thick conductors of a coaxial line.
5
Vector Magnetic Potential
A - vector magnetic potential (Wb/m)
6
Figure 1 The vector potential in the
cross-section of a wire with uniform current
distribution.
7
Figure 2 Comparison between the magnetic vector
potential component  of a wire with uniformly
distributed current and the electric potential V
of the equivalent cylinder with uniformly
distributed charge.
8
(No Transcript)
9
Poissons Equation
Laplacian Operator (Divergence of a gradient)
Vector Poissons equation
10
In electrostatics
Poissons Equation in electrostatics
11
(No Transcript)
12
Magnetic Flux
The line integral of the vector magnetic
potential A around any closed path equals the
total magnetic flux passing through area enclosed
by the path
13
Biot Savart Law and Applications
14
The Biot-Savart Law relates magnetic fields to
the currents which are their sources. In a
similar manner, Coulombs Law relates electric
fields to the point charges which are their
sources. Finding the magnetic field resulting
from a current distribution involves the vector
product, and is inherently a calculus problem
when the distance from the current to the field
point is continuously changing.
15
(No Transcript)
16
Biot-Savart Law
By using
(see eq 6.31)
17
In two steps
18
Illustration of the law of BiotSavart showing
magnetic field arising from a differential
segment of current.
19
Example1 Component values for the equation to
find the magnetic field intensity resulting from
an infinite length line of current on the z-axis.
(ex 6-4)
20
Example 2 We want to find H at height h above a
ring of current centered in the x y plane.
21
The component values shown for use in the
BiotSavart equation.
22
The radial components of H cancel by symmetry.
23
Solenoid
Many turns of insulated wire coiled in the shape
of a cylinder.
24
For a set N number of loops around a ferrite
core, the flux generated is the same even when
the loops are bunched together.
25
Example A simple toroid wrapped with N turns
modeled by a magnetic circuit. Determine B inside
the closely wound toroidal coil.
26
Amperes Law
27
Electromagnets
a) An iron bar attached to an electromagnet. b)
The bar displaced by a differential length d?.
28
Applications
Levitated trains Maglev prototype
Electromagnet supporting a bar of mass m.
29
Wilhelm Weber (1804-1891). Electromagnetism.
