Title: LowPressure Plasma Process for Nanoparticle Coating


1

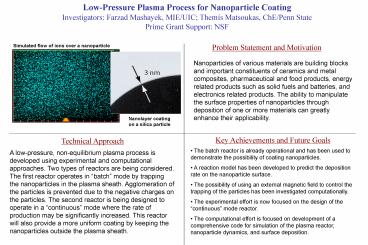

Low-Pressure Plasma Process for Nanoparticle
Coating Investigators Farzad Mashayek, MIE/UIC
Themis Matsoukas, ChE/Penn State Prime Grant
Support NSF
Problem Statement and Motivation
Simulated flow of ions over a nanoparticle
Nanoparticles of various materials are building
blocks and important constituents of ceramics and
metal composites, pharmaceutical and food
products, energy related products such as solid
fuels and batteries, and electronics related
products. The ability to manipulate the surface
properties of nanoparticles through deposition of
one or more materials can greatly enhance their
applicability.
Nanolayer coating on a silica particle
Key Achievements and Future Goals
Technical Approach
  • The batch reactor is already operational and has
    been used to demonstrate the possibility of
    coating nanoparticles.
  • A reaction model has been developed to predict
    the deposition rate on the nanoparticle surface.
  • The possibility of using an external magnetic
    field to control the trapping of the particles
    has been investigated computationally.
  • The experimental effort is now focused on the
    design of the continuous mode reactor.
  • The computational effort is focused on
    development of a comprehensive code for
    simulation of the plasma reactor, nanoparticle
    dynamics, and surface deposition.

A low-pressure, non-equilibrium plasma process is
developed using experimental and computational
approaches. Two types of reactors are being
considered. The first reactor operates in batch
mode by trapping the nanoparticles in the plasma
sheath. Agglomeration of the particles is
prevented due to the negative charges on the
particles. The second reactor is being designed
to operate in a continuous mode where the rate
of production may be significantly increased.
This reactor will also provide a more uniform
coating by keeping the nanoparticles outside the
plasma sheath.
2
Nanostructured Sensors for Detecting Low Levels
of Hydrogen at Low Temperatures Investigators
J. Ernesto Indacochea Ming L. Wang, Materials
Engineering Department Prime Grant Support
National Science Foundation
Problem Statement and Motivation
  • Recent research thrusts for alternate methods of
    power generation has turn to production and
    storage of H2 as alternative fuel, as it is the
    most environmental friendly fuel.
  • It is foreseen that H2 will become a basic energy
    infrastructure to power future generations
    however it is also recognized that if it is not
    handled properly (e.g. transportation, storage),
    it is as dangerous as any other fuel available.
  • Ultra sensitive hydrogen sensors are urgently
    needed for fast detection of hydrogen leakage at
    any level, such as the H2 leaks in solid oxide
    fuel cells (SOFC).

Technical Approach
Key Achievements and Future Goals
  • This investigation is being performed in
    collaboration with the Materials Science Division
    of Argonne National Laboratory.
  • Nanotubes have been selected because their high
    surface-to-volume ratio will lower requirements
    for critical volumes of H2 to be detected without
    compromising the sensitivity of the sensor.
  • Pd-nanotube assemblies will be processed by ANL
    and initial hydrogen sensing tests will be
    conducted at their facilities.
  • The nanostructured MOS sensor will be assembled
    at UIC-Microfabrication Laboratory this will be
    tested first in H2 atmospheres, where the H2
    levels and temperature will be adjusted.
  • The final stage of the study will involve field
    testing in SOFCs and detect hydrogen evolution
    in acidic corrosion of metals.
  • Pd nanotube assemblies have been fabricated
    successfully at the Argonne National Laboratory.
    Pd nanotubes excel in high sensitivity, low
    detection limit, and fast response times in
    hydrogen sensing.
  • These nanotubes show an expanded surface area
    and granular nature, in addition to the high
    capability for dissociation of molecular
    hydrogen.
  • Electrochemical techniques will be used to
    monitor H2 evolution with time.
  • These nanotubes will be incorporated into the
    design and fabrication of a nanostructured MOS
    sensor which will be evaluated for H2 detection.

3
Molecular Simulation of Gas Separations Sohail
Murad, Chemical Engineering Department Prime
Grant Support US National Science Foundation
Problem Statement and Motivation
  • Understand The Molecular Basis For Membrane
    Based Gas Separations
  • Explain At The Fundamental Molecular Level Why
    Membranes Allow Certain Gases To Permeate Faster
    than Others
  • Use This Information To Develop Strategies For
    Better Design Of Membrane Based Gas Separation
    Processes For New Applications.

Technical Approach
Key Achievements and Future Goals
  • Determine The Key Parameters/Properties Of The
    Membrane That Influence The Separation Efficiency
  • Use Molecular Simulations To Model The Transport
    Of Gases i.e. Diffusion or Adsorption
  • Focus All Design Efforts On These Key
    Specifications To Improve The Design Of
    Membranes.
  • Use Molecular Simulations As A Quick Screening
    Tool For Determining The Suitability Of A
    Membrane For A Proposed New Separation Problem
  • Explained The Molecular Basis Of Separation of
    N2/O2 and N2/CO2 Mixtures Using a Range of
    Zeolite Membranes.
  • Used This Improved Understanding To Predict
    Which Membranes Would Be Effective In Separating
    a Given Mixture
  • Used Molecular Simulation to Explain the
    Separation Mechanism in Zeolite Membranes.
