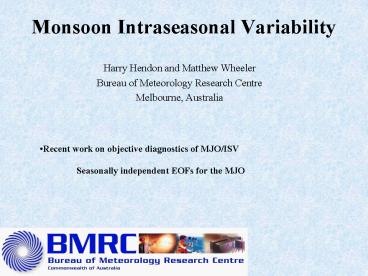

Monsoon Intraseasonal Variability

• Harry Hendon and Matthew Wheeler
• Bureau of Meteorology Research Centre
• Melbourne, Australia

• Recent work on objective diagnostics of MJO/ISV
• Seasonally independent EOFs for the MJO

2

• Issues to be addressed
• Does near-equatorial, eastward propagating,
  convectively-coupled, baroclinic MJO occur
  year-round?
• Is the MJO properly defined in Northern
  Hemisphere Summer?
• Is there poleward propagating ISV independent of
  MJO?
• (or, how much of the poleward propagating ISV in
  the monsoon can be attributed to the MJO?)
• Devise an objective definition for MJO
• Document annual/interannual variation
  in propagation/strength/off-euatorial behavior.

3
Seasonally independent EOFs for the MJO Require
a standard metric of the MJO that 1) captures
its salient properties 2) is easy to
compute 3) can be computed in real time for
forecast and monitoring application 4)
provides insight into dynamics/physics
4
Salient properties MJO baroclinic
disturbance, coupled with convection,
eastward along the equator as originally
depicted by MJ 1972 But, MJO exhibits strong
annual variation in strength and especially in
off-equatorial structure/propagation
Madden and Julian (1972)
5
Ingredients of MJO diagnostic
Use U850, U200, OLR to capture
convective/baroclinic structure, Average about
equator (15N-15S) to focus on zonal propagation,
(i) Removal of seasonal cycle (ii) Removal of
variability associated with index of ENSO (iii)
Removal of mean of previous 120-days
(all these steps can be performed in
real-time) Compute EOFs in order to objectively
extract dominant mode Prior to EOF, normalize
each field by globally-averaged variance.
6
U850
U200
OLR
Variance explained by each EOF
7
Project raw anomaly data onto the EOFs Spatial
projection onto MJO structure effectively
discriminates to MJO periods
¼ cycle Phase lag
EOFs are temporally in quadrature, thus
describing a zonally propagating disturbance
Coh2
8
Variance explained by each EOF
9
Whats the nature of ISV variability associated
with the MJO and independent of MJO? Define MJO
part by multiple linear regression onto principal
components OLRMJO(x,y,t) a(x,y)
b(x,y)?RMM1(t) c(x,y)?RMM2(t) N.B. Regression
coefficients are a function of season Then
define an MJO part, and a residual, OLRANOMOLRMJ
OOLRRESIDUAL
10
MJO part
MJO
Total
RESIDUAL
Leading pair of EOFs captures all of the eastward
propagating variance
11
MJO OLR variance
DJFM
JJAS
12
DJF
JJA
total
MJO
residual
13
May-Oct
-30
Lag d
Regression OLR (shade), U850 onto MJO PCs
30
Nov-Apr
Behavior along eq is independent of a season
14
DJFM Composite
15
JJAS Composite
16
Dates defined using Darwin zonal wind
(Drosdowsky 1996).
Kerala dates defined using rainfall by IMD (e.g.,
Joseph et al. 1994).
W Pacific
W Pacific
Maritime Continent
Maritime Continent
Africa
Africa
Indian
Indian
17
Total
May-Oct North-south propagation
30 in 20 days
2-d spectrum in meridional direction 20S-40N
80-90E Zero-pad in meridional direction to
give equivalent 90S-90N periodic domain i.e.,
Wave 1 has 20000km wavelength
RESIDUAL
MJO
18
Total
Nov-Apr
40S-20N data only 80-90E Zero-pad in
meridional direction to give equivalent 90S-90N
periodic domain i.e., wave110000km
half-wavelength
RESIDUAL
MJO
19
Looking another way Lagged regressions with OLR
in base region
MJO
DJFM BP80-90E,5-10S
JJAS BP80-90E,5-10N
RESIDUAL
Regressed OLR plotted, based on a 1 standard
deviation anomaly in the predictor
20
RESIDUAL JJAS regressed OLR and 850hPa winds Base
Point 80-90E, 5-10N
Primarily northward propagation Some westward
21
Conclusions
MJO exists year-round, with constant
near-equatorial structure. MJO accounts for 1/2
poleward propagating ISV in monoon Independent
northward propagation has higher frequency and
shorter meridional and zonal scales Implication
mechanism of equatorial propagation is
independent of poleward propagation But, is
mechanism of poleward propagation the same for
the MJO as for the independent component?
22
US CLIVAR MJO WORKING GROUP
Duane Waliser, co-chair Wanqui Wang Ken
Sperber, co-chair Chidong Zhang Siegfried
Schubert 2-Yr Lifetime Mitch Moncrieff Klaus
Weickmann April 2006-gt Eric Maloney Bin Wang
Leo Donner F. Vitart, S. Woolnough, H.
Hendon, M. Wheeler, W. Higgins, J. Gottschalck,
W. Stern International CLIVAR Support
http//www.usclivar.org/Organization/MJO_WG.html

• Terms of Reference
• Develop a set of metrics to assess MJO simulation
  and forecast skill.
• Coordinate model simulation and prediction
  experiments to better understand and improve MJO
• Raise awareness of utility of MJO forecasts in
  the context of the seamless suite of predictions.
• Coordinate MJO-related activities between
  national and international agencies

23
.compared to variance of RESIDUAL field
(i.e., variance of whats left when MJO part
is removed from original anomaly field)
DJFM
10 times the contour interval!
JJAS
24
