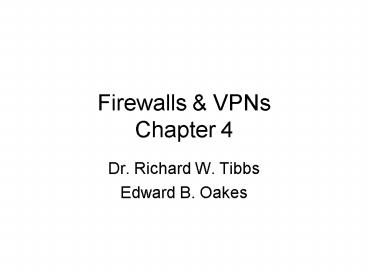

Firewalls VPNsChapter 4

• Dr. Richard W. Tibbs
• Edward B. Oakes

2
Security Threats

• Software bugs configuration errors
• Social Engineering
• Obtaining passwords, illegal access by meeting
  people at bars, etc.
• Some people do this for a living to help
  companies understand their vulnerabilities
• Worms, Trojan Horses Viruses
• Host and Port Scanning.
• Popular open-source product Nessus does
  portscanning via Nmap, and more.

3
Security Threats Contd.

• IP Address Spoofing
• TCP Vulnerabilities
• Man in the middle attack MITM (tampers with the
  secure channel mechanism)
• Replaying
• storing secure messages and sending them at a
  later date
• Denial of service
• flooding a channel or other resource, denying
  access to others

4
The Zone Concept
Figure 4.1
5
A DMZ is an Architectural Solution

• Accomplishes separation between
• Internet
• DMZ
• Internal networks

6
IP Address Spoofing via DDoSFeb. 2000 Attack
2) ICMP Echo Reply7 Packet from Spoofees on
Campus Source IP x.x.j.i, for all j, i Dest IP
1.2.3.4 (Untrue!)
Amazon.com IP 1.2.3.4
Yahoo.com IP 5.6.7.8
Campus Network IP Address x.x.x.i
Internet
. . .
Campus Network IP Address x.x.y.i
1) ICMP Echo Request Packet from Spoofer Source
IP 1.2.3.4 Dest IP x.x.j.i, for all j, i
(Untrue!)
7
IP Spoofing Countermeasures

• The threats
• RFC 1918 private address space
• IANA unassigned public address space
• Block both of these (easy, see Ch. 7 for more on
  firewall protection from these threats)
• Harder, are the publicly assigned addresses, such
  as Amazon, Yahoo, etc.
• See the Feb. 2000 Attacks.
• Tools (Imperfect)
• Unicast Reverse Path Forwarding
• Route Filtering (RFC 1812, see Exercise 4.3)
• Reverse DNS lookup

8
IP Spoofing

• Unicast Reverse Path forwarding
• Defined as follows
• We have an incoming packet with a source IP
  address.
• Would we forward back to that address (as a
  destination IP) via the same interface?
• If so, then we will allow the packet in,
  otherwise not.
• Imperfections
• What if there is only one way into the network?
  Then all packets will be allowed
• Even with multiple Internet connectivities, there
  is no perfect way to prevent unwanted packets

9
IP Spoofing

• Reverse DNS lookup.
• Using the PTR records in DNS that do
• IP address to Host name lookup.
• Imperfect since
• DNS database may be un-maintained
• E.g., old host names still be in database while
  new hosts (with different host names) have the
  same IP addresses.
• A problem with BIND DNS server Unix/Linux
• See Exercise 4.1

10
Example

• University rotates computers out of labs every
  two years.
• Each host in lab has two-week lease via DHCP.
  This ends up in BIND database.
• Procedure
• Remove old machines, send to surplus
• Install new machines same day.
• No time for lease to expire.
• Result polluted BIND database
• New host catscan.xyz.edu has IP 1.2.3.4
• So does old host gandalf.xyz.edu
• Reverse DNS lookup will fail if BIND finds
  gandalf first, since the active host is catscan.

• See Case Study at end of chapter

11
Final Word on IP Spoofing

• Unicast RPF, Route Filtering and DNS reverse
  lookup
• All have imperfections
• A firewall may be the best method of preventing
  IP spoofing. See Chapter 7 for more details.

12
Understanding Unicast RPF Route Filtering

• We need to understand how route tables work to
  understand
• Unicast RPF
• Route Filtering

13
IP Routing Recipe

• Each packet passing through the IP layer has its
  destination IP address extracted from the packet
  header.
• The IP layer proceeds through each row in the
  route table with the same procedure
• The mask in the route table row is ANDed (binary
  AND operation) with the packets destination
  address.
• This result is compared with the Destination
  Network field.
• If a match is successful, the row is added to a
  temporary table of successful matches
• When all rows in the route table have been
  scanned, the IP layer looks through the temporary
  table of all successful matches and chooses the
  row with the longest mask length. This is known
  as the longest matching prefix rule, since the
  rule chooses the most specific route in the
  table.
• If there are two rows with equal mask lengths,
  then the metric field (not shown in figure 4.2)
  is used as a tie-breaker.

14
Figure 4.2 Updated
Host P sends packet to google.com
Host P sends packet to Host L
15
Figure 4.2 notes

• Packets for Host L and google.com originate from
  Host P
• Host Ps route table uses default route for both
  packets, since neither Host L nor google.coms IP
  addresses are on Host Ps subnet, 7.8.9.0/24
• Host Ps default route sends both packets to
  7.8.9.1, Router Bs address
• Router B uses different rows to route the two
  packets
• Packet to google.com uses Bs default row. Next
  hop is the Internet Gateway router 10.11.12.2
• Packet to Host L is on a directly connected
  subnet of router B (second row)

16
Route Filtering A quote from RFC 1918
A router SHOULD IMPLEMENT the ability to filter
traffic based on a comparison of the source
address of a packet and the forwarding table for
a logical interface on which the packet was
received. If this filtering is enabled, the
router MUST silently discard a packet if the
interface on which the packet was received is not
the interface on which a packet would be
forwarded to reach the address contained in the
source address. In simpler terms, if a router
wouldn't route a packet containing this
destination address through a particular
interface, it shouldn't believe the address if it
appears as a source address in a packet read from
this interface. added by Dr. Tibbs
17
Route filtering quiz

• IP a packet bearing source IP 7.8.9.10 (host P)
  and dest IP 1.2.3.4 (host L)
• Arrives on Router Bs 10.11.12.1 interface,
• What should router B do?
• IP a packet bearing source IP 1.2.3.4 (host L)
  and dest IP 10.11.12.13 (Server S)
• Arrives on Router Bs 1.2.3.1 interface
• What should router B do?

18
Route filtering quiz

• IP a packet bearing source IP 7.8.9.10 (host P)
  and dest IP 1.2.3.4 (host L)
• Arrives on Router Bs 7.8.9.1 interface,
• What should router B do?
• IP a packet bearing source IP 1.2.3.4 (host L)
  and dest IP 10.11.12.13 (Server S)
• Arrives on Router Bs 7.8.9.1 interface
• What should router B do?

19
Rules of Route Table Construction

• The Destination network field, your route table
  must successfully ( efficiently) route packets
  destined for any subnetwork or those destined for
  the internet.
• Hint Which routers in Figure 4.10 might need
  extra rows to avoid ICMP redirect messages?
  Lookup ICMP redirect in a search engine.
• The Next Hop field must be a specific IP on one
  of the directly connected subnets of the device
  (Router or host).
• For the Interface column in Exercise 4.6, use the
  MAC address annotated on the (two-letter Hex
  code).
• Remember that the interface column contains only
  MAC addresses for the device itself.
• We show IP addresses and MAC addresses
  side-by-side in Table 4.1, but it is simpler to
  use short MAC addresses.

20
Table 4.1 Windows Route Table via route print
command
Why are there so many different Mask Lengths in
this host table?
21
Notes on Table 4.1

• The loopback row
• 192.168.1.3 /32 127.0.0.1 127.0.0.1 L0
• How would a web server and a web client run
  efficiently on the same host?

1. Web Browser
4. Web Server
1. Web Browser types http//198.168.1.3 as URL
2. This generates packet that is delivered to IP
layer 3. Row above is longest matching prefix
4. Web Server receives http GET request
2. TCP
3. IP
Data Link
Loopback 127.0.0.1
IP address 198.168.1.3
22
Notes on Table 4.1

• Another loopback-related row
• 127.0.0.0 /8 127.0.0.1 127.0.0.1 L0
• Other loopback addresses may be added.
• This row allows any of those to go to 127.0.0.1,
  usually bound to the name localhost
• Other Rows
• 192.168.1.255 /32 192.168.1.3 192.168.1.3 00-
  -F3
• The subnet broadcast must be directed to this
  machines IP
• 255.255.255.255 /32 192.168.1.3 192.168.1.3 00-
  -F3
• The IP address 255.255.255.255 means this
  machine (not the entire Internet). We must have
  this row as well.

23
IP addr show output (Linux)
ip addr sho 1 lo mtu 16436
qdisc noqueue link/loopback 000000000000
brd 000000000000 inet 127.0.0.1/8 brd
127.255.255.255 scope host lo 2 dummy0
mtu 1500 qdisc noop
link/ether 000000000000 brd
ffffffffffff 3 eth0 ,UP mtu 1500 qdisc pfifo_fast qlen
100 link/ether 0002e3130278 brd
ffffffffffff inet 1.2.3.89/26 brd
1.2.3.127 scope global eth0 4 eth1
mtu 1500 qdisc
pfifo_fast qlen 100 link/ether
0002e3127d94 brd ffffffffffff ine
t 192.168.1.254/24 brd 192.168.1.255 scope
global eth1
The phrase qdisc pfifo_fast qlen 100 indicates
other parameters including queueing discipline
for the interface is first-in-first-out (fifo)
and the queue length for the interface is 100
packets
24
Table 4.2 Linux Firewall Route Table via ip
route list table all
25
Figure 4.3 Smurf Fraggle Attack
26
Replay Attacks

• Password Authentication Protocol (PAP)
• Vulnerable to replay attack
• Challenge Handshake Authentication Protocol
  (CHAP)
• Solves the replay attack by issuing a random
  challenge
• This involves a random number called a nonce

27
TCP Vulnerabilities

• SYN Flood Attacks
• Using three-way handshake of TCP, attacker could
  generate a rapid number of SYNs
• Objective is to exhaust resources, since each
  connection requires a TCB data structure to track
  the state of the connection
• See Exercise 4.2

28
TCP Vulnerabilities

• Connection Hijacking
• See chapter 7 for more on this topic.
• RFCs 793, 1337 and 1948 are good reading.
• Can TCP sequence numbers be predicted? How can
  that be avoided? (Ask class here ??? Hint
  Cookies Hashes)
• Christmas Tree attack
• A TCP segment arrives with an invalid combination
  of TCP flags set.
• Examples
• SYN FIN in the same segment
• SYN, FIN, RST, PSH, URG, ACK (all flags)
• Objective is to find bugs in TCP code that cause
  a crash.

29
TCP/UDP Port Numbers

• Standards based RFC 1700
• well-known ports, 11023
• registered ports, 102449151
• ephemeral ports, 4915265535
• These port numbers are now assigned by IANA at
  www.iana.org/assignments/port-numbers.

30
TCP/UDP Port Numbers

• However, many systems dont follow the standards
  or IANAs assignments
• Windows, Linux kernels below 2.4, BSD Unix,
  default ephemeral range 1024 5000.
• Linux kernel 2.4 and above, default ephemeral
  range 32768 61000.
• The command netstat a n can be used to identify
  what TCP connections and UDP datagram services
  are running on any host or server.

31
Man In the Middle

• For MITMs we need a host of participants.
• Alice First Participant.
• Bob Second Participant.
• Carol Third Participant.
• Dave Fourth Participant.
• Eve Eavesdropper.
• Mallory Malicious attacker.
• Sara a server.

32
An MITM Scenario Illustrated
ALICE
1) Alice connects to her online bank, Bob
2) Mallory also has an account at Bob. He copies
the banks certificate, and he knows through
social engineering that Alice has a large bank
account
Poses as Bob To Alice
MALLORY (MITM)
Bob, an Online Bank
3) Having hacked into the ISP that Alice uses, he
waits for a connection. Then, he
Poses as Alice To Bob
33
More on MITM

• Mallory must subvert some part of the network in
  some way that lets him carry out the deception.
• Possible targets DNS, router, Alice or Bob's
  machine, mail server, etc. to beat any
  authentication mechanism Alice and Bob use.
• Note DNS is sometimes used to distribute
  certificates
• Strong authentication defeats the MITM entirely
• Mallory must work in real time, delivering
  messages without introducing a delay large enough
  to alert the victims
• This is not hard if Alice and Bob are using
  email quite difficult in some other situations

34
MITM Wrap-up

• This requires quite a bit of planning on
  Mallorys part.
• If he can accomplish this, he can do whatever her
  wants
• Changing her transactions to transfer to his
  account
• You will notice that any secure online
  transaction does not give you a chance to inspect
  the servers certificate.
• More on this issue in chapter 7.

35
Varieties of Firewalls

• Stateless
• Looks at packets one at a time, no sense of state
  of connections
• Stateful
• Keeps track of connection state
• Requires more memory, tables, processing speed
• Possible for TCP as well as UDP
• Proxy
• Used to protect Web and Mail servers
• Content-Aware

36
Stateful

• Inspects flags, IP address, TCP/UDP ports,
  Sequence numbers etc. of connections (UDP
  doesnt have this but we can still keep track of
  IP address and port number information)
• Keep track of
• Established connections
• Related connections
• Invalid connections

37
Traceroute issues with Firewalls

• Traceroute (tracert on Windows) uses both ICMP
  and UDP.
• Traceroute recipe
• Generate ICMP echo requests with TTLs increasing
  from 130 (default)
• When ICMP Echo request TTL is 0, router/host
  sends back ICMP time exceeded (type 11) message.
• ICMP type 11 cant tell traceroute that it has
  reached the destination.
• Traceroute uses UDP echo request (like Fraggle
  attack).
• How to allow traceroute, but defend Fraggle??

38
Shorewall Rate and Burst Limits

• Traceroute will generate only a moderate number
  of ICMP and UDP packets.
• Shorewall (the firewall portion of LEAF) has a
  rate and burst limit capability to defend against
• Smurf (Uses ICMP)
• Fraggle (Uses UDP)

39
Proxy firewalls

• AKA, Application Proxies
• Two kinds
• Proxies (e.g. forward proxies)
• Serve the client, offload the Server
• May inspect html to ensure no suspect or
  malicious content
• Reverse proxies (serves the Server)

40
Figure 4.4
41
Figure 4.5
42
Content Aware Firewalls

• Open-source and Commercial products
• Important distinction
• Application-aware firewalls are proxies used
  for a specific application
• Content-aware firewalls are general purpose can
  be used for any application
• Secure protocols (IPSec, TLS) break content-aware
  firewalls

43
Nessus

• Important for project 4.4
• Do projects 4.1 and 4.2 first
• Then use SLAX CD to test hardening
• Alternatively there is a Nessus installer for
  windows.

44
Nessus and Setup
Figure 4.6
Figure 4.7 ?
45
Figure 4.8

• This is the method to select a target for nessus
  to attack.

46
Figure 4.9

• Nessus NG report shows results

47
Figure 4.10, GM.COM.See Exercise 4.6
