Title: Compact HID

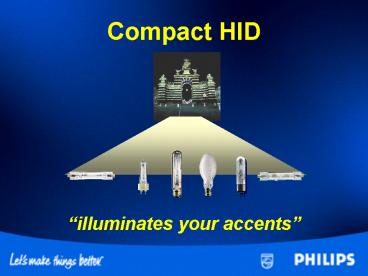

1
Compact HID
illuminates your accents
2
Compact HID Introduction
Lighting installations that require compact light
sources of high quality and high brightness are
suited to the use of Compact High Intensity
Discharge lamp (CHID). Philips has a wide range
of CHID lamps to suit any lighting
solution MASTER Colour - for ultimate colour
properties over life combined with a good
luminous efficacy. MASTER Colour City - the
easiest and cheapest uplamping solution for
SON White SON - for a cosy warm white and durable
light. The MHN/MHW - for reasonable light quality
with low lamp cost, making it the short term
winner.
3
Compact HID Application
  • Outdoor Lighting
  • City Shopping centres
  • Pedestrian Areas
  • Illumination
  • Decorative Street Lighting
  • Residential Areas

4
Compact HID Benefits Features
  • MASTER Colour CDM-T/-TD
  • High quality white light
  • good CRI 3000K gt 80 excellent CRI 4200K gt 90
  • High Efficacy
  • on average 90 lm/W
  • Stable colour over life
  • max. colour shift over life /- 200K
  • High beam intensities with sparkling bright
    light
  • small axial discharge arc and compact lamp
    dimensions
  • Reduced yellowing effect on plastics
  • UV-Block in all types

5
Compact HID Benefits Features
  • MASTER Colour City CDM-TT/-ET
  • Direct upgrade from yellow SON light to white
    CDM light
  • lamps run on SON gear
  • E27 base (70W) or E40 base (100W-150W)
  • CDM discharge tube inside a SON lamp (tubular
    ovoid)
  • Benefits similar to MASTER Colour CDM-T
  • except for UV-block

More info on MASTER Colour City can be found
on www.mastercolour-city.com
6
Compact HID Benefits Features
  • MASTER White SON SDW-T
  • Warm impression and good colour rendering
  • Ra gt80
  • Distinct golden white colour temperature of 2500
    K
  • Excellent red rendition and high colour
    appraisal
  • Reliability in terms of life and lumen
    maintenance
  • White SON has the PIA (Philips Integrated
    Antenna) technology virtually elimination early
    failures

7
Compact HID Benefits Features
  • MHN/W TD Pro
  • Short term winner
  • good value for money
  • Choice of light colours
  • warm white 3000K
  • cool white 4200K
  • Reduced yellowing effect on plastics
  • UV-Block in all types

8
Compact HID Range Overview
Colour Temp. (K)
Colour Designation
Lamp base
CRI
Type designation
MASTER Colour CDM-T 35W/830 81 Warm White
3000 G12 MASTER Colour CDM-T 70W/830 83 Warm
White 3000 G12 MASTER Colour CDM-T 150W/830
85 Warm White 3000 G12 MASTER Colour CDM-T
70W/942 92 Cool White 4200 G12 MASTER Colour
CDM-T 150W/942 96 Cool White 4200 G12
MASTER Colour CDM-TD 70W/830 82 Warm White
3000 RX7s MASTER Colour CDM-TD 150W/830 88
Warm White 3000 RX7s MASTER Colour CDM-TD
70W/942 92 Cool White 4200 RX7s MASTER Colour
CDM-TD 150W/942 96 Cool White 4200 RX7s 55
MASTER Colour City CDM-TT 70W/830 83 Warm
White 3000 E27 MASTER Colour City
CDM-TT 100W830 85 Warm White 3000 E40 MASTER
Colour City CDM-TT 150W/830 85 Warm White 3000 E40
9
Compact HID Range Overview
Colour Temp. (K)
Colour Designation
Lamp base
CRI
Type designation
MASTER Colour City CDM-ET 70W/830 83 Warm
White 3000 E27 MASTER Colour City CDM-ET
100W830 85 Warm White 3000 E40 MASTER Colour
City CDM-ET 150W/830 85 Warm White 3000 E40
MASTER SDW-T 35W/825 83 Golden White 2500
PG12-1 MASTER SDW-T 50W/825 83 Golden
White 2500 PG12-1 MASTER SDW-T 100W/825
83 Golden White 2550 PG12-1 MHN-TD Pro
70W 80 Cool White 4200 RX7s MHN-TD Pro 150W
85 Cool White 4200 RX7s MHN-TD Pro
250W 85 Cool White 4200 FC2 MHW-TD Pro 70W
75 Warm White 3000 RX7s MHW-TD Pro 150W 75 Warm
White 3000 RX7s
10
Compact HID Technical Specification
Light Output (lm)
Lamp Power (W)
Lamp Efficacy (lm/W)
Type designation
MASTER Colour CDM-T 35W/830 35W 3300 94
MASTER Colour CDM-T 70W/830 70W 6600 75
MASTER Colour CDM-T 150W/830 150W 14000 85
MASTER Colour CDM-T 70W/942 70W 6600 75
MASTER Colour CDM-T 150W/942 150W 12700 77
MASTER Colour CDM-TD 70W/830 70W 6500 86
MASTER Colour CDM-TD 150W/830 150W 13250 85
MASTER Colour CDM-TD 70W/942 70W 6000 80
MASTER Colour CDM-TD 150W/942 150W 14200 91
55 MASTER Colour City CDM-TT 70W/830 70W
6300 88 MASTER Colour City CDM-TT
100W830 100W 9000 90 MASTER Colour City
CDM-TT 150W/830 150W 13500 92
11
Compact HID Technical Specification
Light Output (lm)
Lamp Power (W)
Lamp Efficacy (lm/W)
Type designation
MASTER Colour City CDM-ET 70W/830 70W
5900 82 MASTER Colour City CDM-ET
100W830 100W 8500 85 MASTER Colour City
CDM-ET 150W/830 150W 13000 88 MASTER SDW-T
35W/825 35W 1300 37 MASTER SDW-T 50W/825
50W 2300 46 MASTER SDW-T 100W/825
100W 5000 50 MHN-TD Pro 70W/842 70W
5700 76 MHN-TD Pro 150W/842 150W 12900 86
MHN-TD Pro 250W/842 250W 20000 80 MHW-TD Pro
70W/730 70W 6200 83 MHW-TD Pro
150W730 150W 13800 92
12
Compact HID Product Pictures
CDM-TD
CDM-T
CDM-ET
CDM-TT
SDW-T
MHN/W-TD
13
Compact HID References
CDM-TT 150W
CDM-ET 150W
