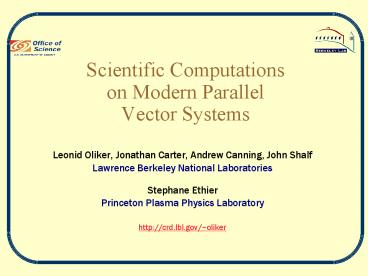

Scientific Computations on Modern Parallel Vector Systems

1
Scientific Computations on Modern Parallel
Vector Systems

• Leonid Oliker, Jonathan Carter, Andrew Canning,
  John Shalf
• Lawrence Berkeley National Laboratories
• Stephane Ethier
• Princeton Plasma Physics Laboratory
• http//crd.lbl.gov/oliker

2
Overview

• Superscalar cache-based architectures dominate
  HPC market
• Leading architectures are commodity-based SMPs
  due to generality and perception of cost
  effectiveness
• Growing gap between peak sustained performance
  is well known in scientific computing
• Modern parallel vectors may bridge gap this for
  many important applications
• In April 2002, the Earth Simulator (ES) became
  operational Peak ES performance gt all DOE and
  DOD systems combined Demonstrated high
  sustained performance on demanding scientific
  apps
• Conducting evaluation study of scientific
  applications on modern vector systems
• 09/2003 MOU between ES and NERSC was
  completedFirst visit to ES center December
  8th-17th, 2003 (ES remote access not
  available)First international team to conduct
  performance evaluation study at ES
• Examining best mapping between demanding
  applications and leading HPC systems - one size
  does not fit all

3
Vector Paradigm

• High memory bandwidth
• Allows systems to effectively feed ALUs (high
  byte to flop ratio)
• Flexible memory addressing modes
• Supports fine grained strided and irregular data
  access
• Vector Registers
• Hide memory latency via deep pipelining of memory
  load/stores
• Vector ISA
• Single instruction specifies large number of
  identical operations
• Vector architectures allow for
• Reduced control complexity
• Efficiently utilize large number of computational
  resources
• Potential for automatic discovery of parallelism
• However most effective if sufficient regularity
  discoverable in program structure
• Suffers even if small of code non-vectorizable
  (Amdahls Law)

4
Architectural Comparison

• Custom vector architectures have
• High memory bandwidth relative to peak
• Superior interconnect latency, point to point,
  and bisection bandwidth
• Overall ES appears as the most balanced
  architecture, while Altix shows best
  architectural balance among superscalar
  architectures
• A key balance point for vector systems is the
  scalarvector ratio

5
Applications studied

• LBMHD Plasma Physics 1,500 lines
  grid based
• Lattice Boltzmann approach for magneto-hydrodynami
  cs
• CACTUS Astrophysics 100,000 lines
  grid based
• Solves Einsteins equations of general relativity
• PARATEC Material Science 50,000 lines
  Fourier space/grid
• Density Functional Theory electronic structures
  codes
• GTC Magnetic Fusion 5,000 lines
  particle based
• Particle in cell method for gyrokinetic
  Vlasov-Poisson equation
• Applications chosen with potential to run at
  ultrascale
• Computations contain abundant data parallelism
• ES runs require minimum parallelization and
  vectorization hurdles
• Codes originally designed for superscalar systems
• Ported onto single node of SX6, first multi-node
  experiments performed at ESC

6
Plasma Physics LBMHD

• LBMHD uses a Lattice Boltzmann method to model
  magneto-hydrodynamics (MHD)
• Performs 2D simulation of high temperature plasma
• Evolves from initial conditions and decaying to
  form current sheets
• 2D spatial grid is coupled to octagonal streaming
  lattice
• Block distributed over 2D processor grid

Current density decays of two cross-shaped
structures

• Main computational components
• Collision requires coefficients for local
  gridpoint only, no communication
• Stream values at gridpoints are streamed to
  neighbors, at cell boundaries
  information is exchanged via MPI
• Interpolation step required between spatial and
  stream lattices
• Developed George Vahalas group College of
  William and Mary, ported Jonathan Carter

7
LBMHD Porting Details
(left) octagonal streaming lattice coupled with
square spatial grid
(right) example of diagonal streaming vector
updating three spatial cells

• Collision routine rewritten
• For ES loop ordering switched so gridpoint loop
  (1000 iterations) is inner rather than velocity
  or magnetic field loops (10 iterations)
• X1 compiler made this transformation
  automatically multistreaming outer loop and
  vectorizing (via strip mining) inner loop
• Temporary arrays padded reduce bank conflicts
• Stream routine performs well
• Array shift operations, block copies, 3rd-degree
  polynomial eval
• Boundary value exchange
• MPI_Isend, MPI_Irecv pairs
• Further work plan to use ES "global memory" to
  remove message copies

8
LBMHD Performance

• ES achieves highest performance to date over
  3.3 Tflops for P1024
• X1 comparable absolute speed up to P64 (lower
  peak)
• But performs 1.5X slower at P256 (decreased
  scalability)
• CAF improved X1 to slightly exceed ES at P64 (up
  to 4.70 Gflop/P)
• ES is 44X, 16X, and 7X faster than Power3,
  Power4, and Altix
• Low CI (1.5) and high memory requirement (30GB)
  hurt scalar performance
• Altix best scalar due to high memory bandwidth,
  fast interconnect

9
LBMHD on X1 MPI vs CAF

• X1 well-suited for one-sided parallel languages
  (globally addressable mem)
• MPI hinders this feature and requires scalar tag
  matching
• CAF allows much simpler coding of boundary
  exchange (array subscripting)
• feq(ista-1,jstajend,1) feq(iend,jstajend,1)ip
  rev,myrankj
• MPI requires non-contiguous data copies into
  buffer, unpacked at destination
• Since communication about 10 of LBMHD, only
  slight improvements
• However, for P64 on 40962 performance degrades.
  Tradeoffs
• CAF reduced total message volume 3X (eliminates
  user and system buffer copy)
• But CAF used more numerous and smaller sized
  message

10
Astrophysics CACTUS

• Numerical solution of Einsteins equations from
  theory of general relativity
• Among most complex in physics set of coupled
  nonlinear hyperbolic elliptic systems with
  thousands of terms
• CACTUS evolves these equations to simulate high
  gravitational fluxes, such as collision of two
  black holes

Visualization of grazing collision of two black
holes
Communication at boundariesExpect high parallel
efficiency

• Evolves PDEs on regular grid using finite
  differences
• Uses ADM formulation domain decomposed into 3D
  hypersurfaces for different slices of space along
  time dimension
• Exciting new field about to be born
  Gravitational Wave Astronomy - fundamentally new
  information about Universe
• Gravitational waves Ripples in spacetime
  curvature, caused by matter motion, causing
  distances to change.
• Developed at Max Planck Institute, vectorized by
  John Shalf

11
CACTUS Performance

• ES achieves fastest performance to date 45X
  faster than Power3!
• Vector performance related to x-dim (vector
  length)
• Excellent scaling on ES using fixed data size per
  proc (weak scaling)
• Scalar performance better on smaller problem size
  (cache effects)
• X1 surprisingly poor (4X slower than ES) - low
  ratio scalarvector
• Unvectorized boundary, required 15 of runtime on
  ES and 30 on X1
• lt 5 for the scalar version unvectorized code
  can quickly dominate cost
• Poor superscalar performance despite high
  computational intensity
• Register spilling due to large number of loop
  variables
• Prefetch engines inhibited due to multi-layer
  ghost zones calculations

12
Material Science PARATEC

• PARATEC performs first-principles quantum
  mechanical total energy calculation using
  pseudopotentials plane wave basis set
• Density Functional Theory to calc structure
  electronic properties of new materials
• DFT calc are one of the largest consumers of
  supercomputer cycles in the world

Induced current and chargedensity in
crystallized glycine

• Uses all-band CG approach to obtain wavefunction
  of electrons
• 33 3D FFT, 33 BLAS3, 33 Hand coded F90
• Part of calculation in real space other in
  Fourier space
• Uses specialized 3D FFT to transform wavefunction

• Computationally intensive - generally obtains
  high percentage of peak
• Developed Andrew Canning with Louie and Cohens
  groups (UCB, LBNL)

13
PARATECWavefunction Transpose
(a)
(b)

• Transpose from Fourier to real space
• 3D FFT done via 3 sets of 1D FFTs and 2
  transposes
• Most communication in global transpose (b) to
  (c) little communication (d) to (e)
• Many FFTs done at the same timeto avoid latency
  issues
• Only non-zero elements communicated/calculated
• Much faster than vendor 3D-FFT

(c)
(d)
(e)
(f)
14
PARATEC Performance

• ES achieves fastest performance to date! Over
  2Tflop/s on 1024 procs
• Main advantage for this type of code is fast
  interconnect system
• X1 3.5X slower than ES (although peak is 50
  higher)
• Non-vectorizable code can be much more expensive
  on X1 (321 vs 81)
• Lower bisection bandwidth to computation ratio
• Limited scalability due to increasing cost of
  global transpose and reduced vector length
• Plan to run larger problem size next ES visit
• Scalar architectures generally perform well due
  to high computational intensity
• Power3, Power4, Alitx are 8X, 4X, 1.5X slower
  than ES
• Vector arch allow opportunity to simulate systems
  not possible on scalar platforms

15
Magnetic Fusion GTC

• Gyrokinetic Toroidal Code transport of thermal
  energy (plasma microturbulence)
• Goal magnetic fusion is burning plasma power
  plant producing cleaner energy
• GTC solves 3D gyroaveraged gyrokinetic system w/
  particle-in-cell approach (PIC)
• PIC scales N instead of N2 particles interact
  w/ electromagnetic field on grid
• Allows solving equation of particle motion with
  ODEs (instead of nonlinear PDEs)
• Main computational tasks
• Scatter deposit particle charge to nearest point
• Solve Poisson eqn to get potential for each
  point
• Gather calc force based on neighbors potential
• Move particles by solving eqn of motion
• Shift particles moved outside local domain

3D visualization of electrostatic potential in
magnetic fusion device
Developed at Princeton Plasma Physics Laboratory,
vectorized by Stephane Ethier
16
GTC Scatter operation

• Particle charge deposited amongst nearest grid
  points.
• Calculate force based on neighbors potential,
  then move particle accordingly
• Several particles can contribute to same grid
  points, resulting in memory conflicts
  (dependencies) that prevent vectorization
• Solution VLEN copies of charge deposition array
  with reduction after main loop
• However, greatly increases memory footprint (8X)
• Since particles are randomly localized - scatter
  also hinders cache reuse

17
GTC Performance

• ES achieves fastest performance of any tested
  architecture!
• First time code achieved 20 of peak - compared
  with less 10 on superscalar systems
• Vector hybrid (OpenMP) parallelism not possible
  due to increased memory requirements
• P64 on ES is 1.6X faster than P1024 on Power3!
• Reduced scalability due to decreasing vector
  length, not MPI performance
• Non-vectorizable code portions expensive on X1
• Before vectorization shift routine accounted for
  11 of ES and 54 of X1 overhead
• Larger tests could not be performed at ES due to
  parallelization/vectorization hurdles
• Currently developing new version with increased
  particle decomposition
• Advantage of ES for PIC codes may reside in
  higher statistical resolution simulations
• Greater speed allow more particles per cell

18
Overview

• Tremendous potential of vector architectures 4
  codes running faster than ever before
• Vector systems allows resolution not possible
  with scalar arch (regardless of procs)
• Opportunity to perform scientific runs at
  unprecedented scale
• ES shows high raw and much higher sustained
  performance compared with X1
• Limited X1 specific optimization - optimal
  programming approach still unclear (CAF, etc)
• Non-vectorizable code segments become very
  expensive (81 or even 321 ratio)
• Evaluation codes contain sufficient regularity in
  computation for high vector performance
• GTC example code at odds with data-parallelism
• Much more difficult to evaluate codes poorly
  suited for vectorization
• Vectors potentially at odds w/ emerging
  techniques (irregular, multi-physics,
  multi-scale)
• Plan to expand scope of application
  domains/methods, and examine latest HPC
  architectures

19
Second ES visit

• Evaluate high-concurrency PARATEC performance
  using large-scale Quantum Dot simulation
• Evaluate CACTUS performance using updated
  vectorization of radiation boundary condition
• Evaluate MADCAP performance using a newly
  optimized version, without global file systems
  requirements and improved I/O behavior
• Examine 3D version of LBMHD, and explore
  optimization strategies
• Evaluate GTC performance using updated
  vectorization of shift routine as well as new
  particle decomposition approach designed to
  increase concurrency
• Evaluate performance of FVCAM3 (Finite Volume
  atmospheric model), at high concurrencies and
  resolution (1x1.25 , 0.5 x 0.625, 0.25 x 0.375)
• Papers available at http//crd.lbl.gov/oliker
